(6) Fix the biopsy attachment to the biopsy attachment mounting plate by pushing it towards the direction shown in
Figure 10.
(7) Fix the biopsy attachment mounting arm to the probe while pulling the probe cover as shown in Figure 11. Note that
the wrinkle at the part indicated in Figure 11 should be smoothed as possible.
Biopsy Attachment
Slide

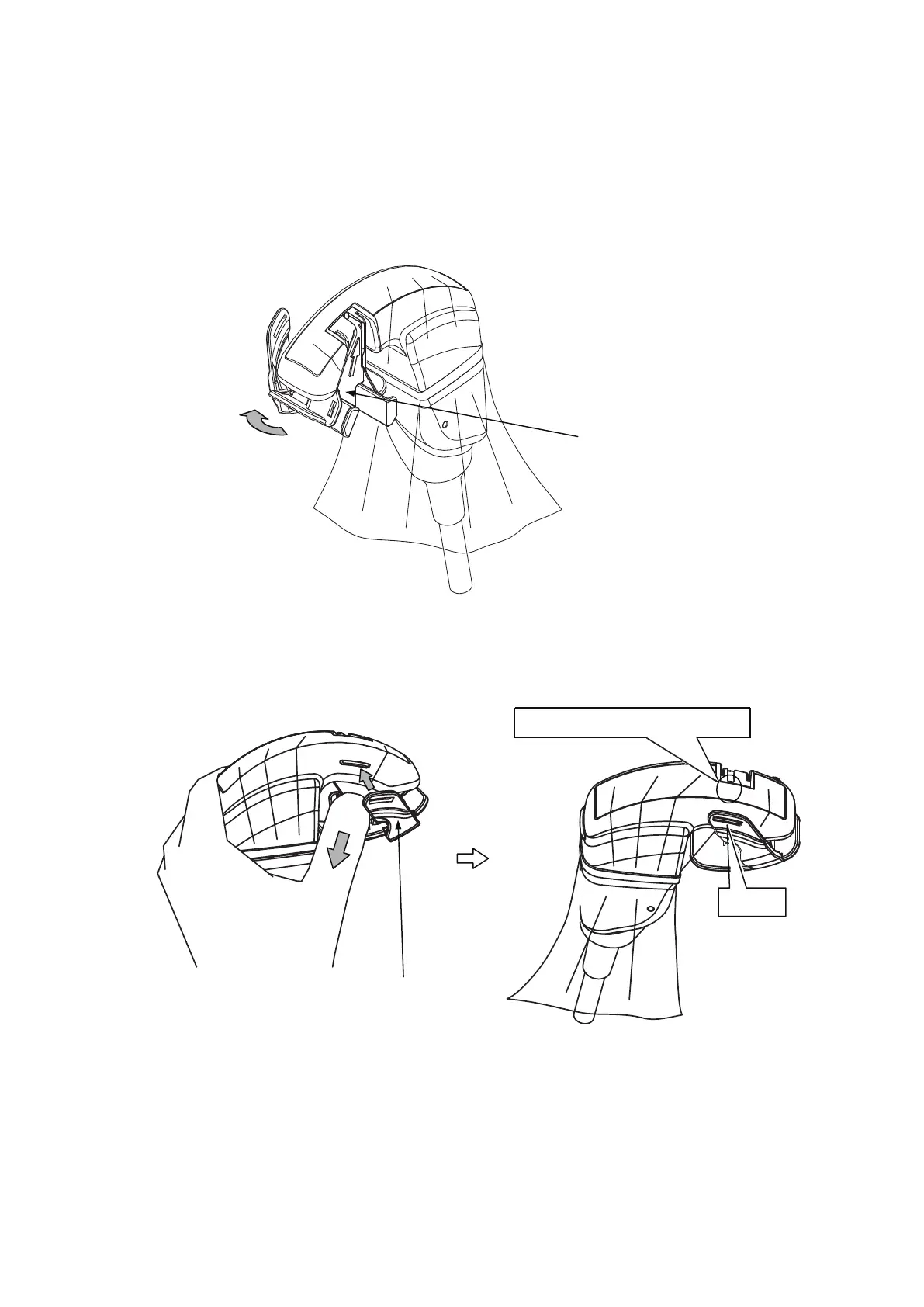

Figure 10 Fixing Biopsy Attachment
Stretch wrinkles of the probe cover.
Biopsy Attachment Mounting Arm
Fix
Figure 11 Fixing Biopsy Attachment Mounting Arm
To Next Page
