Installing the rear top cover
NOTICE
Make sure all of the internal cables and components are correctly kept
inside the system before installing the cover. Otherwise, the
cables might become damaged or disconnected.
1. Align the hooks inside the rear top cover side tabs with the guide slots on both
sides of the chassis.
2. Close and slide the rear top cover toward the center of the system.
3. Tighten the captive screw at the rear of the system.

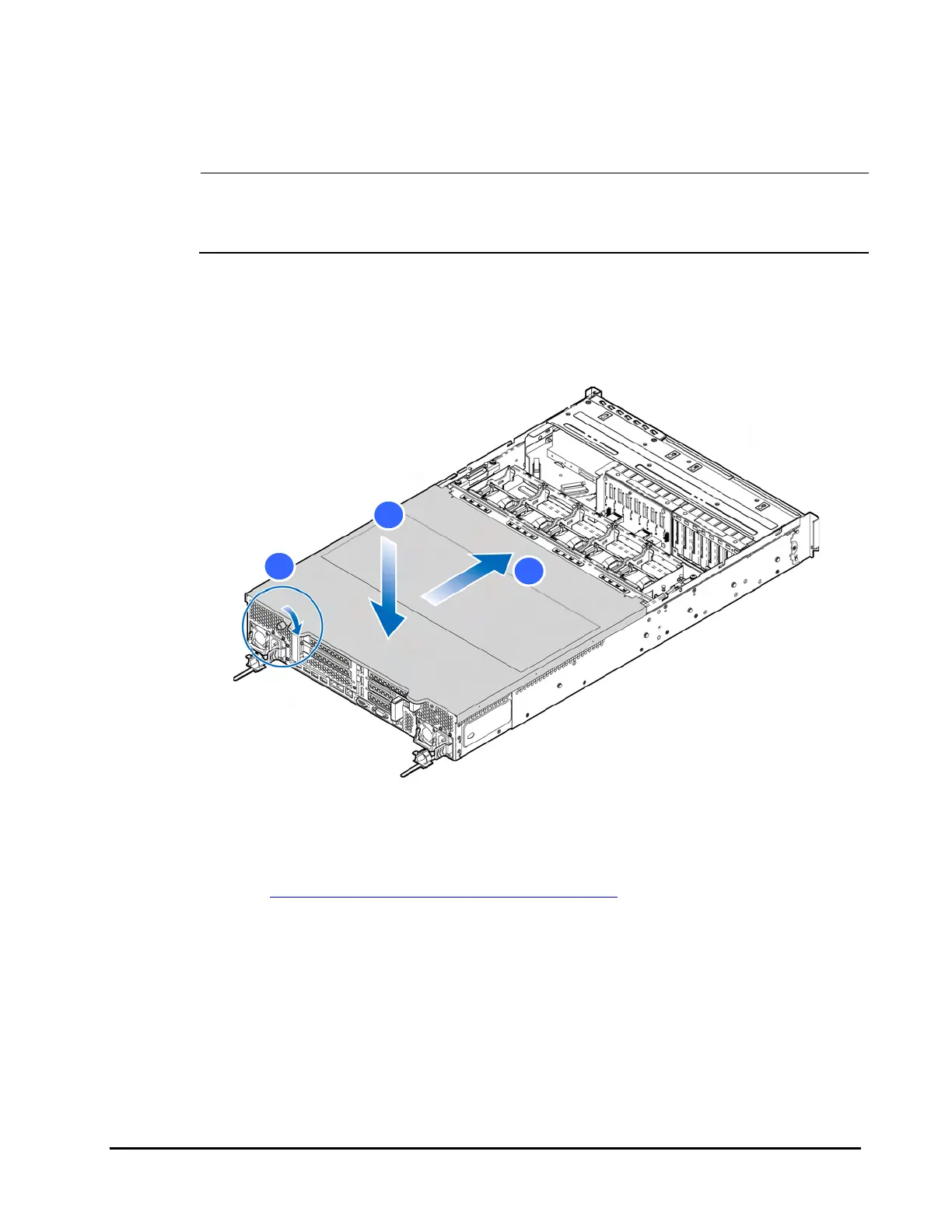

Figure 3-7: Install the rear top cover
4. Reinstall the system to the rack cabinet.
See Sliding the system unit into a rack cabinet on page 3-6.
1
2
3
