Hitachi CP-AX3505 User Manual

5
Introduction

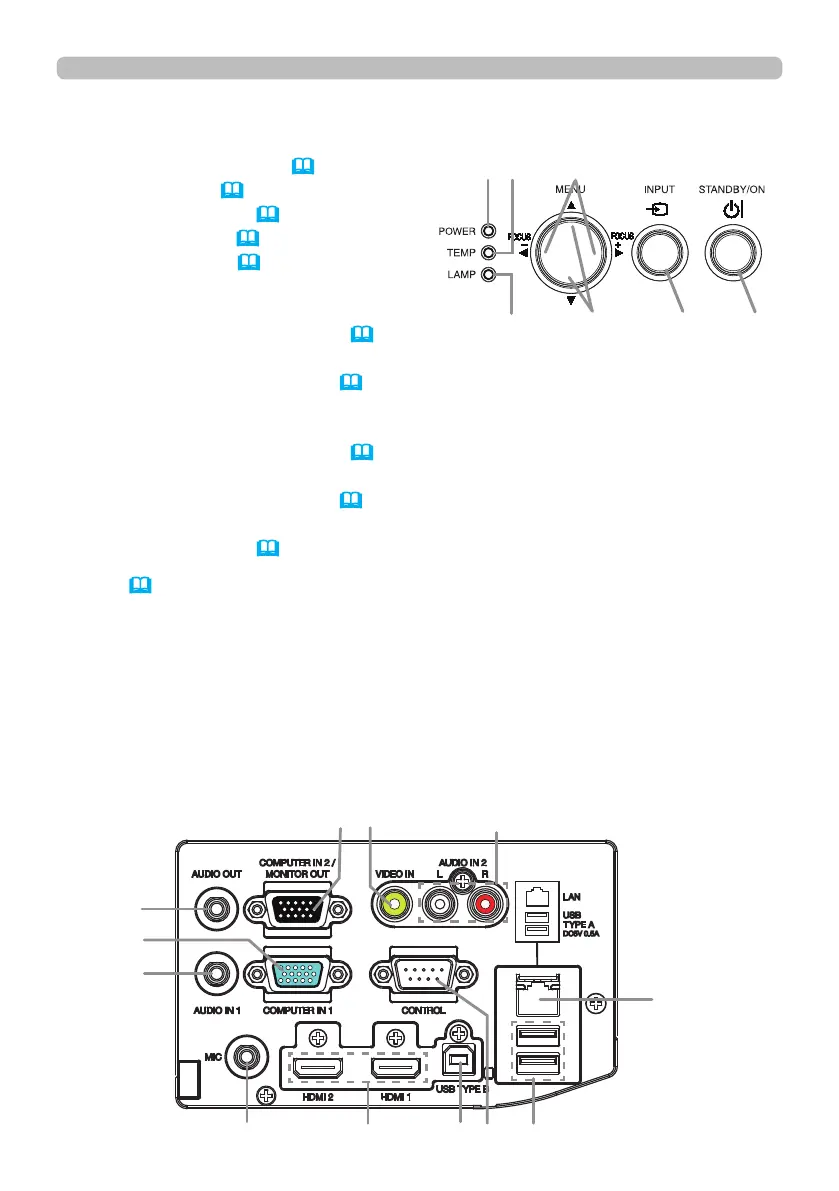

Part names (continued)
Control panel
(1) STANDBY/ON button (
20)
(2) INPUT button (24)
(3) POWER indicator (20, 107)
(4) TEMP indicator (107)
(5) LAMP indicator (107)
Buttons ◄/►/▲/▼
(6) FOCUS +/- buttons
when no menu is displayed (26), or
Cursor ◄/► buttons
when a menu is displayed (31). FOCUS +/- function is invalid when the
USB TYPE A port is selected as the input source.
(7) MENU buttons
when no menu is displayed (31), or
Cursor ▲/▼ buttons
when a menu is displayed (31).
The ◄/►/▲/▼ buttons on the projector work only as the cursor buttons while the
template is displayed (58).
Ports (
9 ~ 14)
(1) USB TYPE A port (x2)
(2) LAN port
(3) USB TYPE B port
(4) HDMI port (x2)
(5) MIC port
(6) AUDIO IN1 port
(7) AUDIO IN2(L,R) ports
(8) AUDIO OUT port
(9) COMPUTER IN1 port
(10) COMPUTER IN2 / MONITOR OUT port
(11) VIDEO IN port
(12) CONTROL port
(1)
(11)
(7)
(5)
(10)
(12)
(9)
(2)
(3)
(4)
(1)
(7)
(2)
(3)
(5)
(4)
(6)
(6)
(8)

Hitachi CP-AX3505 Specifications

General

Placement	Ceiling
Product type	Ultra short throw projector
Product color	White
Number of colors	16.78 million colors
Projection technology	-
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	XGA (1024x768)
Projector brightness (economic mode)	2214 ANSI lumens
Focus	Auto
Digital zoom	1.35 x
Focal length range	- mm
Lamp power	250 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)	Yes
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	36 dB
Certification	UL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)	29 dB
Operating temperature (T-T)	0 - 40 °C
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
RMS rated power	16 W

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
