 In a normal state
The Status Monitor displays the condition of the
projector in three lines.
: Displays the condition of the projector.
While the lamp is on, the selected port is
displayed.
Displayed conditions are as below;
STANDBY: The projector is in standby mode.
WARM UP: The projector is warming up.
SEARCHING: The projector is searching an input signal.
COOL DOWN: The projector is cooling down.
: Displays the condition of the detected input signal while the lamp
is on. Otherwise, displays the serial number of the projector.
Displayed conditions are as below;
SYNC OUT: Detected input signal is out of specied range.
NO SIGNAL: There is no input signal.
CONNECTED: The projector has connected to the network or the computer
and some image is transferred to the projector while the LAN or USB TYPE
B port is selected.
HOLD: The projector has connected to the network but no image is transferred
while the LAN port is selected.
NOT CONNECTED: The projector is not connected to the network or the
computer while the LAN or USB TYPE B port is selected.

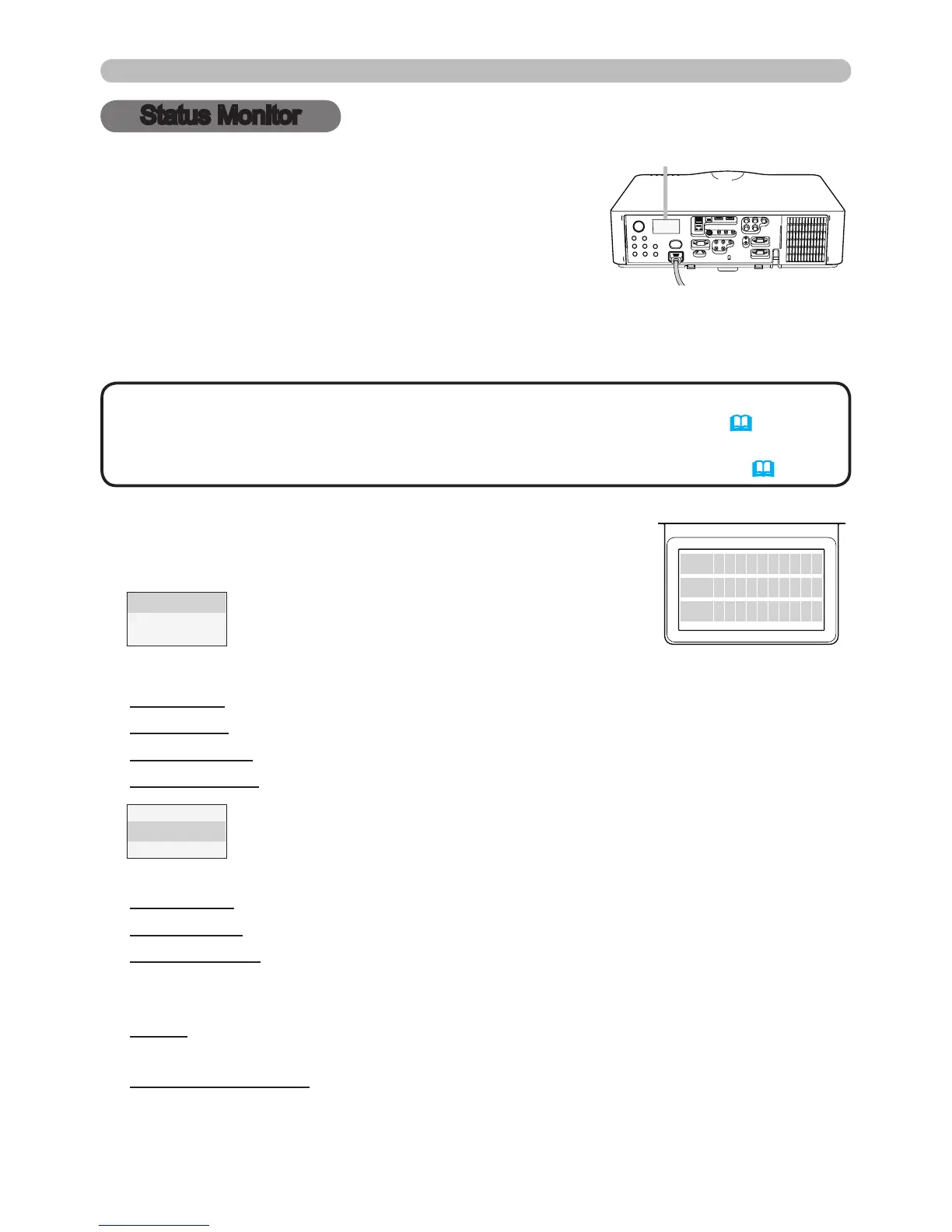

Status Monitor <Only for CP-X8160, CP-WX8250 and CP-WU8450>
Status Monitor
Displaying the condition of the projector
The Status Monitor is the sub LCD in the rear panel of
CP-X8160, CP-WX8255 and CP-WU8450. The Status
Monitor displays the present condition of the projector
including errors, setup information and error history.
<Only for CP-X8160, CP-WX8255 and CP-WU8450>
If no buttons have been operated, the Status Monitor displays as below depending
on the condition of the projector.
Status Monitor
1st line
2nd line
• The Status Monitor displays nothing while the projector is in standby
mode if the STANDBY MODE item of SETUP menu is set to SAVING (
54).
• When INSTALLATION in the SETUP menu is set to FRONT / CEILING or REAR /
CEILING, the contents on the Status Monitor are displayed upside down (
53).
NOTE
(continued on next page)
example
9
2 3 ° C
# 1 2 3 4 5 6 7 8 0 A B
S T A N D B Y

Hitachi CP-WU8450 Specifications

General

Matrix size	0.76 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection distance	1 - 38.3 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 600 \
Projector native resolution	WUXGA (1920x1200)
Audio input	3
RS-232 ports	1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	330 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
3D	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	16 W
Number of built-in speakers	2
DVI port	No
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Noise level	- dB
Certification	UL/cUL, FCC Part15 class A, AS/NZS CISPR22 class A, CE, GOST-R
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 45 °C
Sustainability certificates	RoHS

Weight and Dimensions

Depth	396 mm
Width	498 mm
Height	135 mm
Weight	8700 g
