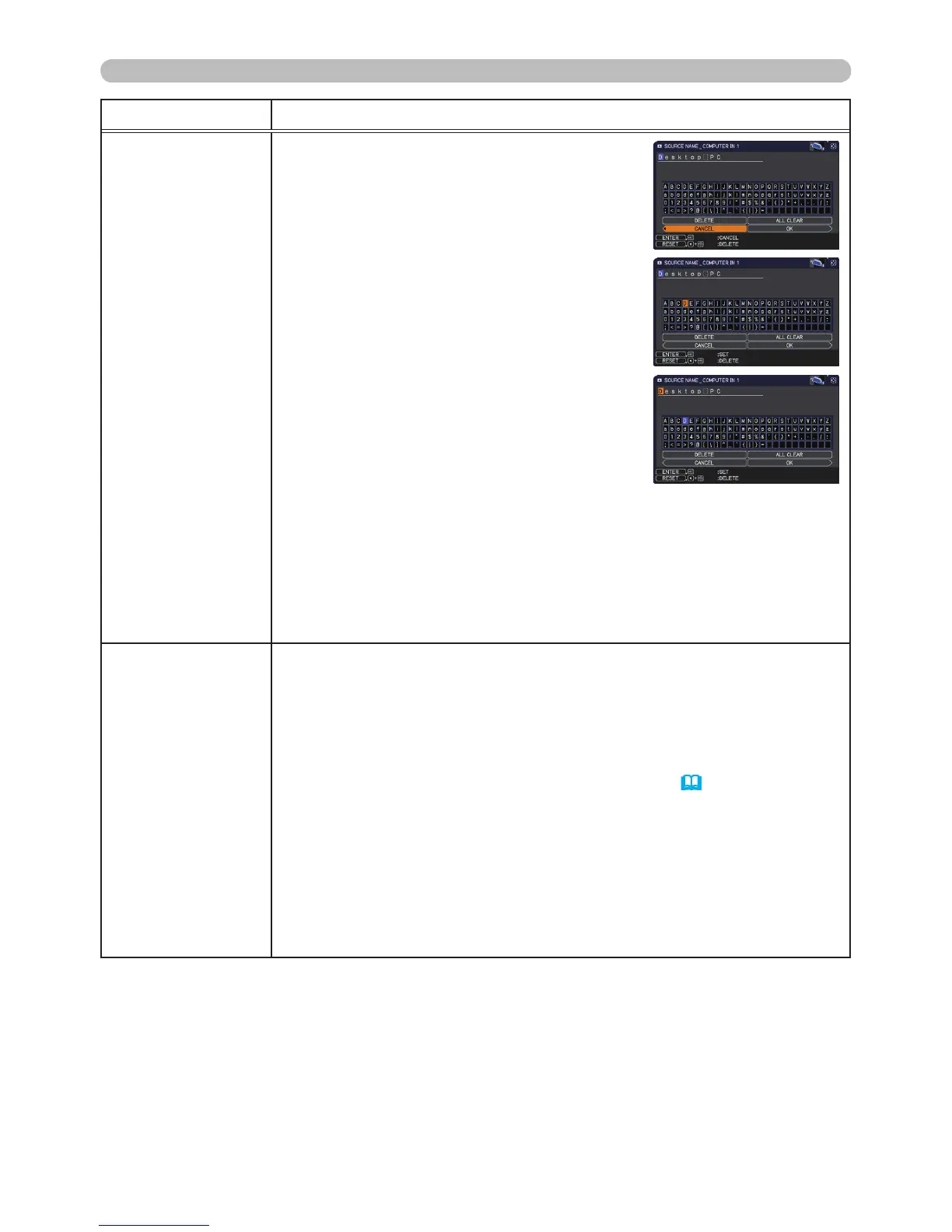

SCREEN menu
Item Description
SOURCE NAME
(continued)
(6) The current name will be displayed on
the rst line. Use the ▲/▼/◄/► buttons
and the ENTER or INPUT button to
select and enter characters. To erase 1
character at one time, press the RESET
button or press the ◄ and INPUT button
at the same time. Also if you move the
cursor to DELETE or ALL CLEAR on
screen and press the ENTER or INPUT
button, 1 character or all characters will
be erased. The name can be a maximum
of 16 characters.
(7) To change an already inserted character,
press the ▲ button to move the cursor to
the rst line, and use the ◄/► buttons to
move the cursor on the character to be
changed.
After pressing the ENTER or INPUT button, the character is
selected. Then, follow the same procedure as described at the
item (6) above.
(8) To nish entering text, move the cursor to the OK on screen and
press the ►, ENTER or INPUT button. To revert to the previous
name without saving changes, move the cursor to the CANCEL
on screen and press the ◄, ENTER or INPUT button.
TEMPLATE
Using the ▲/▼ cursor buttons switches the mode for the template
screen.
Press the ► cursor (or the ENTER) button to display the selected
template, and press the ◄ cursor button to close the displayed
screen.
The last selected template is displayed when the MY BUTTON
allocated to the TEMPLATE function is pressed (

66).
TEST PATTERN
ó
DOT-LINE1
ó
DOT-LINE2
ó
DOT-LINE3
 
STACK
ó
MAP2
ó
MAP1
ó
CIRCLE2
ó
CIRCLE1
ó
DOT-LINE4
You can turn a map upside down and scroll it horizontally when
MAP1 or MAP2 is selected. To invert or scroll the map, display
the guidance by pressing the RESET button on the remote three
seconds or more when MAP1 or MAP2 appears.
(continued on next page)

Hitachi CP-WU8450 Specifications

General

Matrix size	0.76 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection distance	1 - 38.3 m
Projection technology	LCD
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 600 \
Projector native resolution	WUXGA (1920x1200)
Audio input	3
RS-232 ports	1
Zoom capability	Yes
Focal length range	- mm
Lamp type	UHP
Lamp power	330 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	- h
3D	-
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	16 W
Number of built-in speakers	2
DVI port	No
BNC input ports	5
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Noise level	- dB
Certification	UL/cUL, FCC Part15 class A, AS/NZS CISPR22 class A, CE, GOST-R
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Power source	AC
AC input voltage	100 - 240 V
Power consumption (standby)	- W
Operating temperature (T-T)	0 - 45 °C
Sustainability certificates	RoHS

Weight and Dimensions

Depth	396 mm
Width	498 mm
Height	135 mm
Weight	8700 g
