11

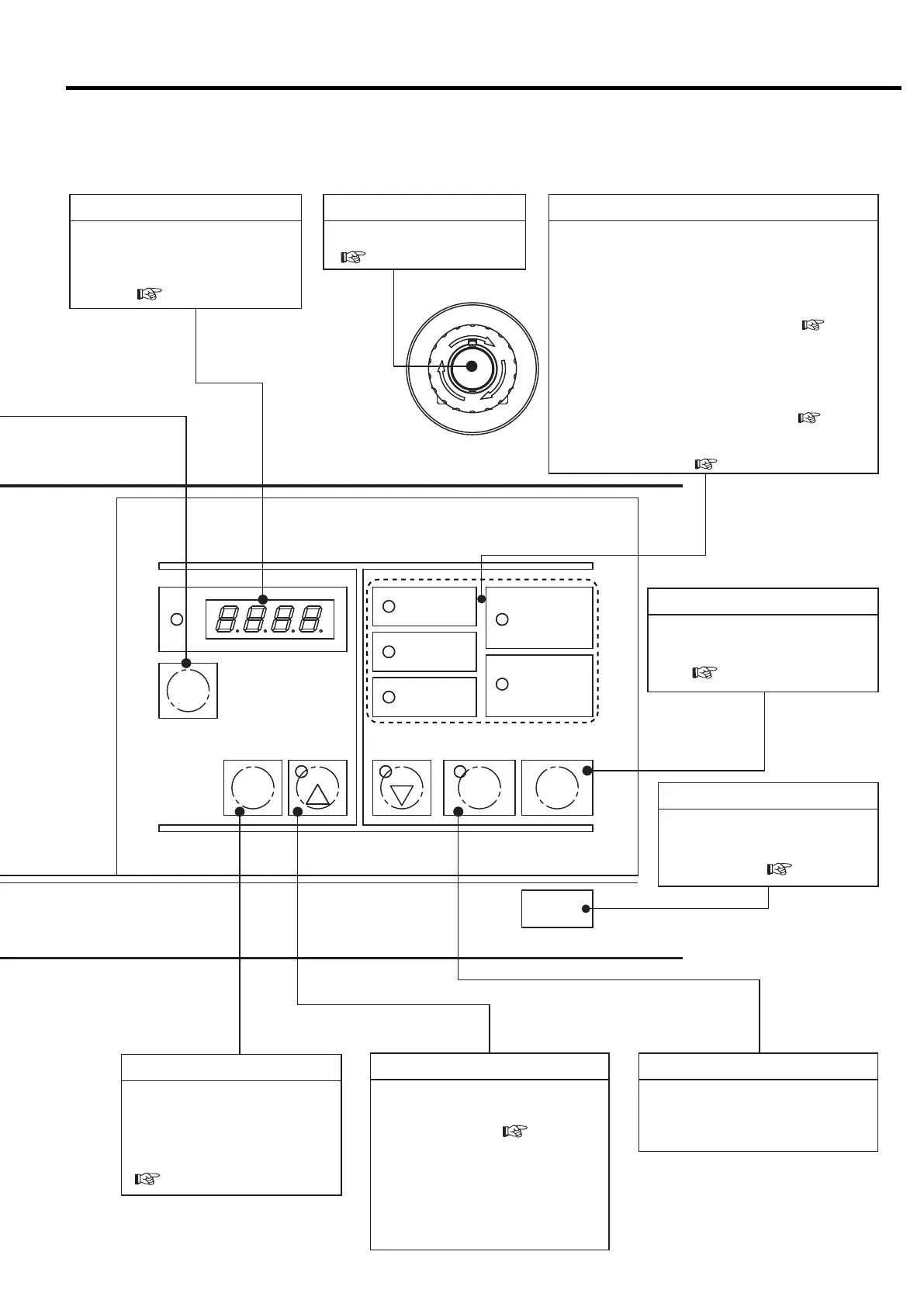

3. OPERATING THE DSP [Instrument Panel]
SELECT/WIDE
2
RUNNINGCONTROL
STARTREMOTE
1
FUNC
［× 10h］
ALARM
STR
REMOTE
RUNNINGMODE
AUTOSTART
POWER
LOAD
RESET
SHUTDOWN
STOP
リセット
遠方
機能
電源
運転 停止
運転状況
故障
運転管理
負荷
遠方
起動待ち
警報
記憶
表示切替/
ワ イド モ ード
UNLOAD STOP
Digital Monitor
In addition to basic settings, used
to set various types of setting
values in combination with the LCD
monitor. ( page 22)
STOP Button
Used to stop the compressor
immediately without first unload-
ing. ( page 12)
UNLOAD STOP Button
Used for normal stop. Stops
after the compressor and air
hoses are dry. ( page 12)
SELECT/WIDE Button/Light (Yellow)
Press to confirm various types of
setting values, shutdown history,
and setting status. (
page 24, 25
)
To set to ECONOMODE (energy
conservation mode) (standard type
only), press and hold the SELECT/
WIDE button for at least 7 seconds.
The light flashes and ECONOMODE
is set.
START Button
REMOTE Button
Activates or deactivates a remote
start/stop operation locally or on
the instrument panel. it also acts
as a right-arrow key stop
( page 28).
Starts the air compressor.
The OPERATION light (red) turns
on while the compressor is running.
Press this button to stop the air compressor.
The air compressor will stop after removing the
condensate from the air end.
※This stop button is effective while a stand alone operation.
EMERGENCY STOP button
Stops for emergency.
( page 12)
POWER light (yellow):
ON (glowing) when the power to the air compressor is turned on.
REMOTE light (green):
ON (glowing) when the REMOTE button is pressed in
order to activate a remote operation.
ON (flashing) when an external remote-operation-activation switch has
been turned on in order to activate a remote operation.
( page 28)
LOAD light (yellow):ON (glowing) when the air compressor is loading.
AUTO START light (green):
ON (glowing) while the air compressor is in a stop due to an
AUTO operation, lead/lag operation, or scheduling operation.
ON (blinking) while the air compressor is in a stop due to a
restartable instantaneous power interruption. ( page 16)
SHUTDOWN light (red):
ON (either glowing or blinking) when a shutdown/alarm
problem has occurred. ( page 15)
RUNNING MODE Light
S
T
O
P
E
M
E
R
G
E
N
C
Y
To Next Page
