Hitachi DSP-160V6WN User Manual

4
2. GENERAL DESCRIPTION
Front Left Door
Model designation,
manufacturing number
and specification are
printed.
This panel discharges
the hot air generated
in the air compressor.
Compressor Name plate
Instrument Panel
See page p. 10, chap-
ter 3, for details.
Open the front left
door only when servic-
ing the DSP air com-
pressor. Keep it closed
when operating the
DSP air compressor.
Air Exhaust
(Air Compressor Package)
Enclosure
Enclosure panels
lower the sound level
of the air compressor
package.
Plate of Operating /
Servicing Instructions
Read carefully the
plate before operating
and servicing the DSP.
Power Supply Port
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
Air Exhaust
Air Exhaust
Air Exhaust
Air Intake
Air Intake
Oil Filling Port
Use the port to fill the
gear case with oil.
OMR
See page 55 for the
details
Oil Level Gauge
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Sling Fitting
Use the sling fitting
when moving and
installing the DSP air
compressor.
Air Intake
(Air Compressor Package)
Compressed Air Discharge
Air Intake
(Inlet to the Air End)

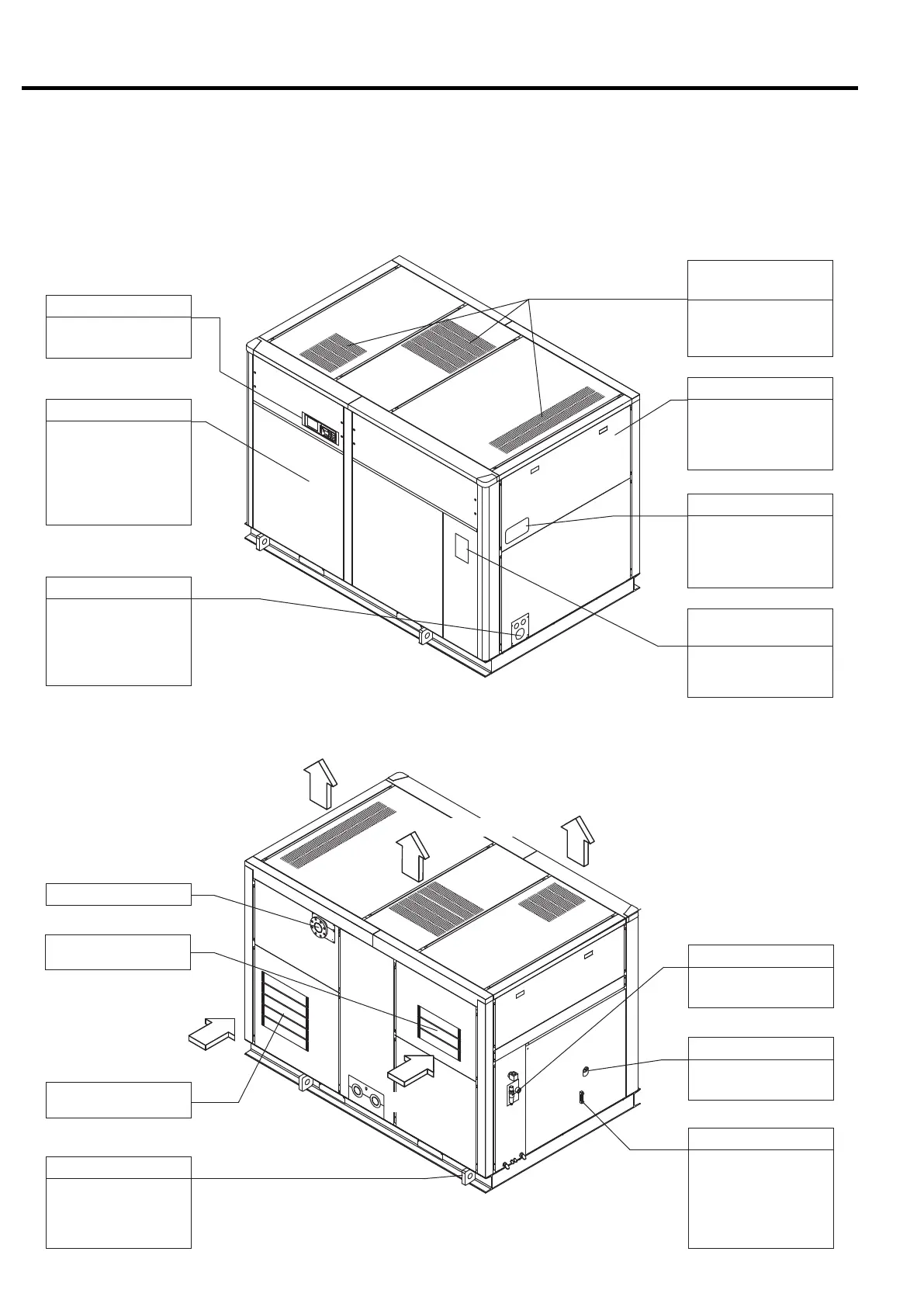

2.1 Appearance
2.1.1 Fixed Speed
This section illustrates and describes the major components of the DSP air compressor. Be familiar
with the name, location and function of each component before using the DSP air compressor.
[Front View]
[Rear View]
