3. OPERATING THE DSP

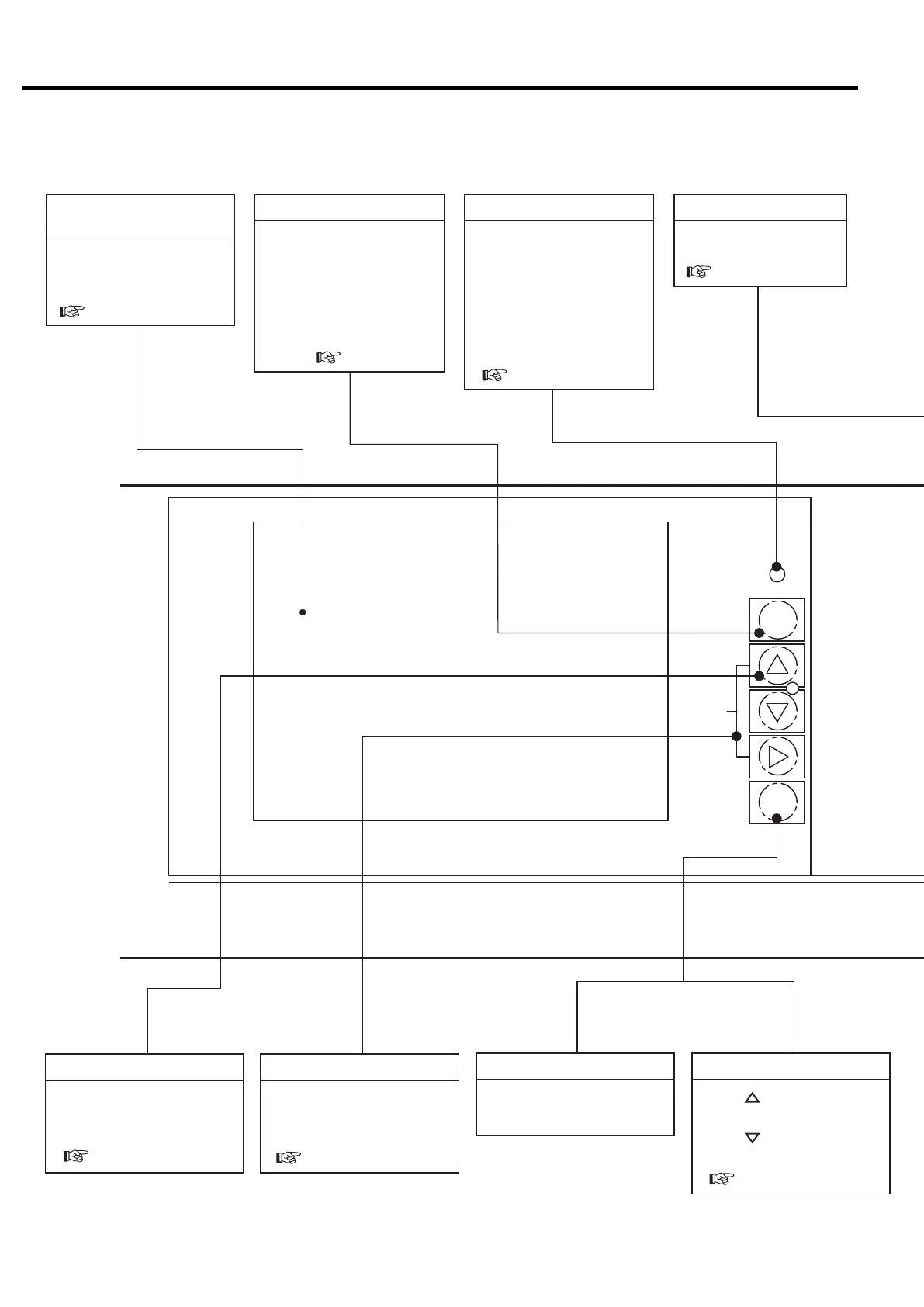

3.1 Instrument Panel
＋／−
AUTO
MONITOR
MENU
SET
MONITOR
モニタ
メニュー
設定
自動
UP/
DOWN
Liquid Crystal Display
(LCD)
Displays the operation data,
various setting, shutdowns/
alarms information, etc
( page 13)
MONITOR Button
Enables movement within
each of the monitoring
displays (M1, M2) and the
message display (M3). This
button also enables you to
return to the M1 display from
the FUNCTION MENU
display ( page 13).
AUTO light (yellow)
ON (glowing) when an
automatic operation (an
AUTO operation, a schedul-
ing operation, or lead/lag
operation) is activated.
ON (flashing) when external
calendar or scheduling
operation is abnormal.
( page 16, 20)
RESET Button
Reset the system or cancels
the shutdown/alarm circuit
( page 15)
MENU Button
Functions to display the
menu screen and move the
cursor.
( page 18)
+/- UP DOWN Buttons
SET Button
It saves any adjusted set
points.
Contrast adjustment
SET+[ ] button operation:
Brightens the display.
SET+[ ] button operation:
Darkens the display.
( page 22)
Each of these buttons act as
an up-arrow, down-arrow
and right-arrow key.
( page 18)
