2. GENERAL DESCRIPTION [Appearance]
2.1.2 Variable Speed Drive Control

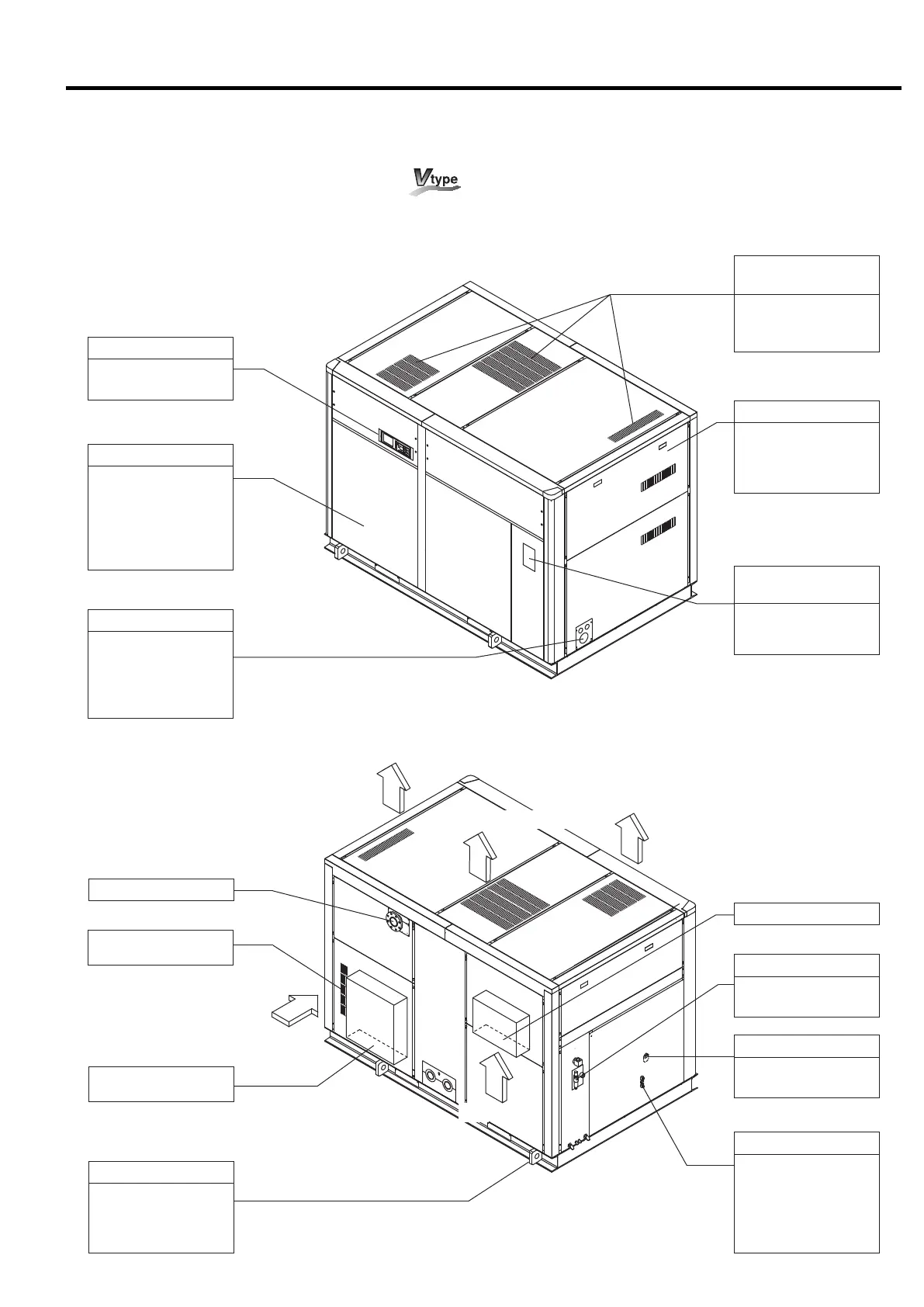

[Front View]
Air Exhaust
Air Exhaust
Air Exhaust
Air Intake
Air Intake
Instrument Panel
See page p. 10, chap-
ter 3, for details.
Front Left Door
Open the front left
door only when servic-
ing the DSP air com-
pressor. Keep it closed
when operating the
DSP air compressor.
Power Supply Port
Check the specifica-
tions, power supply
and voltage before
connecting the power
supply.
This panel discharges
the hot air generated
in the air compressor.
Air Exhaust
(Air Compressor Package)
Enclosure
Enclosure panels
lower the sound level
of the air compressor
package.
Plate of Operating /
Servicing Instructions
Read carefully the
plate before operating
and servicing the DSP.
Sling Fitting
Use the sling fitting
when moving and
installing the DSP air
compressor.
Air Intake
(Air Compressor Package)
Compressed Air Discharge
Air Intake
(Inlet to the Inverter)
Oil Filling Port
Use the port to fill the
gear case with oil.
OMR
See page 66 for the
details
Oil Level Gauge
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Compressed Air Discharge
[Rear View]
