80
9. MAINTAINING THE DSP [How to Service the DSP Air Compressor]
(1) Battery life and specifications
● Commercially available batteries cannot be used.
Order batteries from your dealer.
● To replace batteries, turn off the power and replace
within 15 minutes.
(2) Battery replacement method
When “battery replacement” is displayed for “Setting
/ connection inspection” on the LCD monitor, replace
the batteries. Be sure to turn the compressor off
before replacing the batteries.

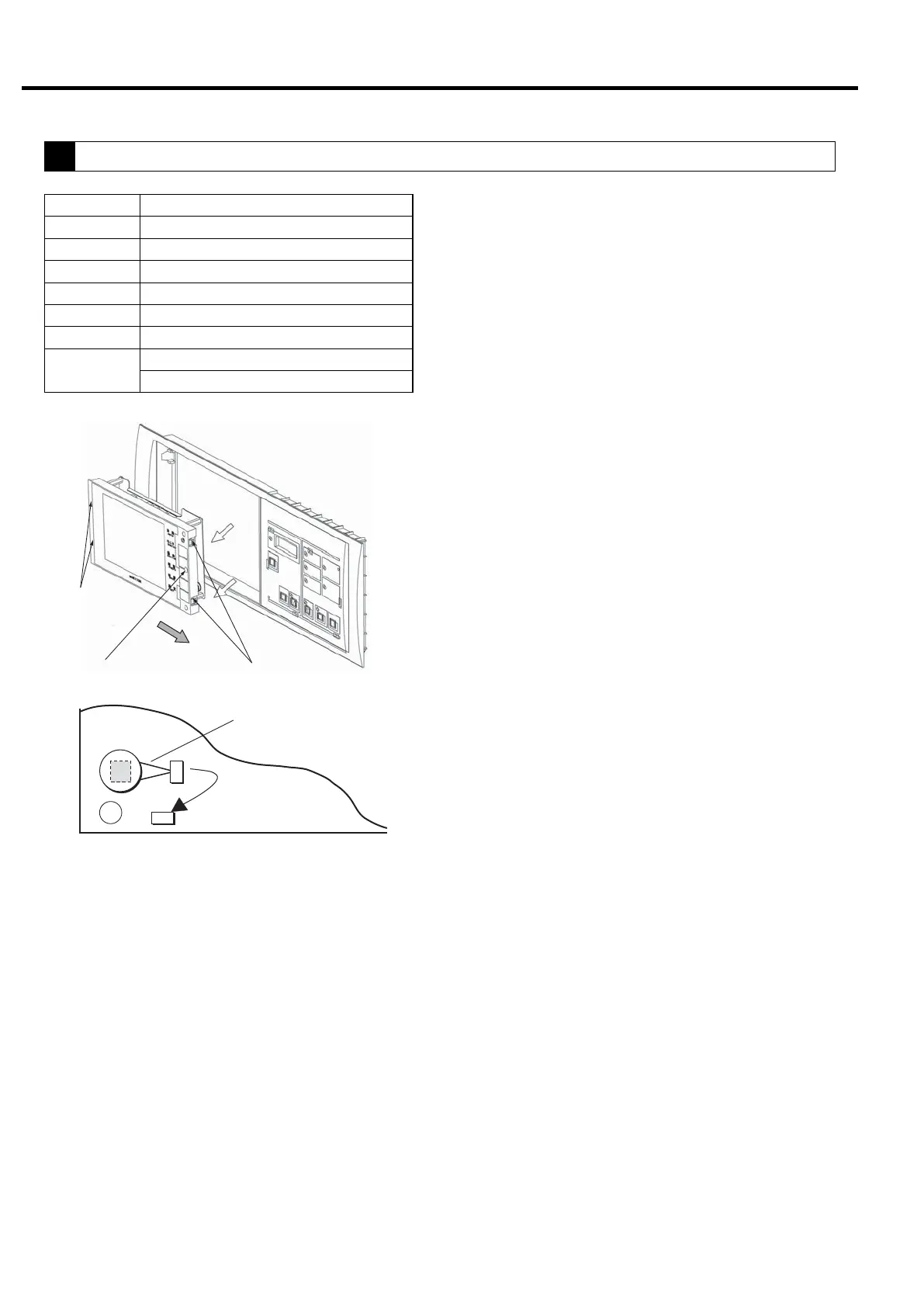

① Remove the mounting screws on the part where
the buttons are to the right of the LCD unit.
② Insert the special tool that comes with the com-
pressor in the openings provided in 2 locations on
the right side of the LCD unit and remove the LCD
unit by lifting.
③ There are tabs for fastening the LCD unit on the
left side of the unit. When removing the LCD unit,
carefully pull out the right side so it comes off the
operation panel from the right.
④ The batteries are mounted on the back of the LCD
unit. Unplug the batteries from the connector. The
batteries are held in place by double sided adhesive
tape.
⑤ Replace with new batteries.
(3)
Precautions concerning disposal of old batteries
Either return used batteries to your dealer or
properly dispose of them through an industrial
waste disposal contractor in accordance with
the “Law concerning disposal and cleaning of
discarded materials.”
Used batteries are furthermore shorted if the posi-
tive and negative terminals come in contact with each
other or come in contact other metal objects, and
could cause the batteries to produce heart, rupture or
catch fire. Do not expose the batteries to fire. Used
batteries cannot be recharged.
③
④
⑤
Fastening tabs
②
Mounting screws
Special tool openings
Battery
LCD unit board
CN11 BT
Item Specs
Battery Button type lithium battery
Voltage 3V
Battery model
220mAh
Capacity CR2032 equivalent
Special specs
Lead wire connector connection
Replacement criteria
Battery replacement display on LCD monitor
Life
Approx. 1 year with power off
Approx. 6 years under ordinary service conditions
10
Battery replacement
