Hitachi DSP-160V6WN User Manual

87

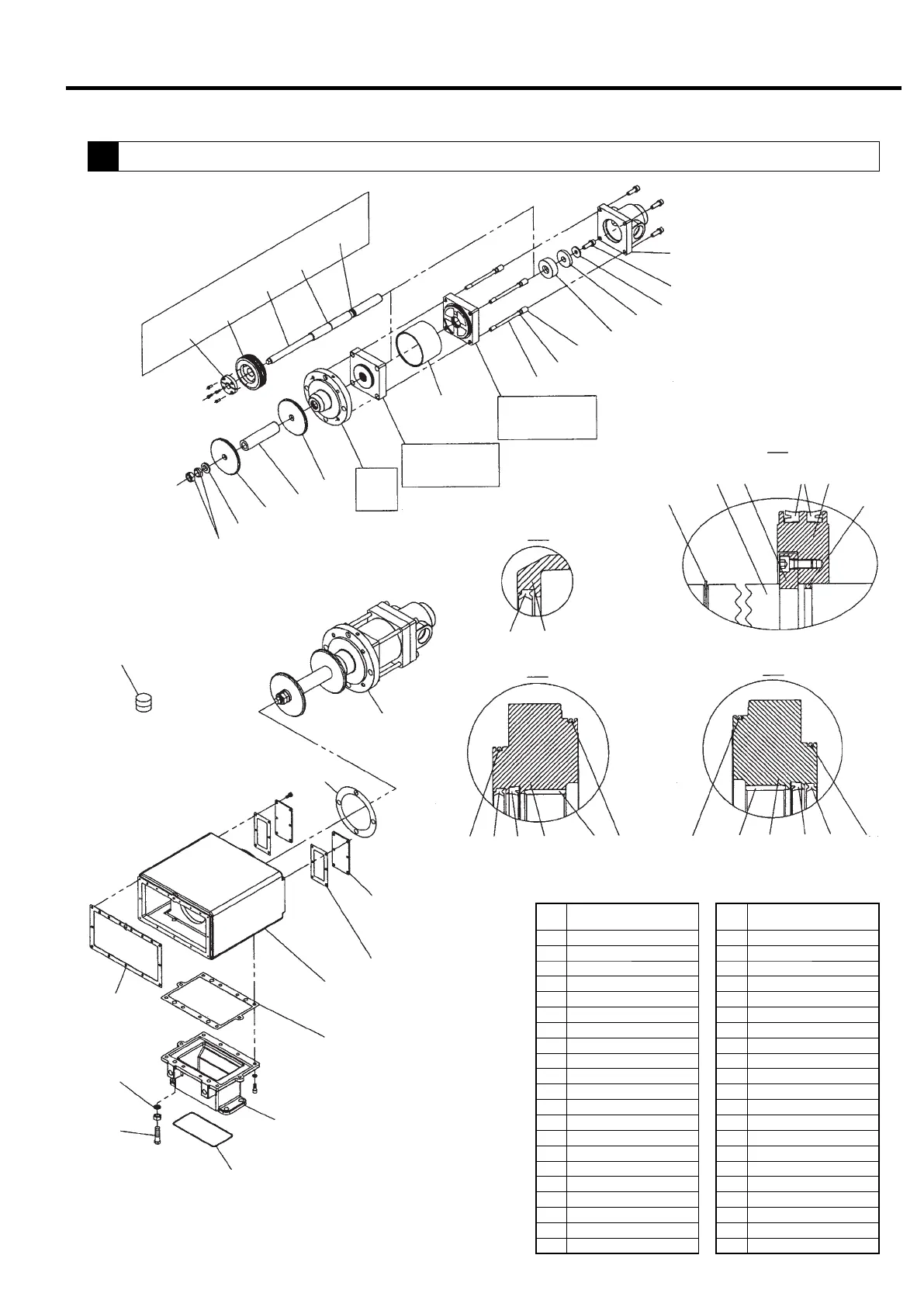

11. PARTS LIST
A
554
B
D
C
549 521 519 504 504 519 521 549522 552 522552
528
518
509
541
517
537
517
509
528
537
518
541
514
542
515
569
529
530
521
526
504 519 521
522 549 552
504 519 521
522 549 552
A
B
C
507
534
532
506
535
525
536
508
503
521
502
555
526
512
513
559
F46
F44
558
511
501
D
Ref.
No.
Description
500 Suction Throttle Valve Assembly
501 Air Cylinder Assembly
502 Body, STV
503 Tube, air cylinder
504 Cover, air cylinder
506 Piston, blowoff valve
507
Valve Sheet, blowoff valve piston
508 Plate
509 Spindle, air cylinder
511 Packing, air cylinder
512
Packing, air end air intake
513 Packing, STV cover
514 Valve Plate (A), STV
515 Valve Plate (B), STV
517 Piston, air cylinder
518 Seal Packing (3)
519 Seal Packing (4)
521 Seal Packing (5)
522 Bush, air cylinder
525 Tie Rod, air cylinder
526 Cover, air cylinder
Ref.
No.
Description
528 Baffle Plate
529 Spring Washer (SUS)
530 Nut
532 Body, blowoff valve
534 Seal Washer, air cylinder
535 Nut
536 Wave Spring
537
Gasket, air cylinder piston
541 Holder, piston
542 Spacer
549 Flange, o-ring
551
Set of Air Cylinder Consumable Parts
552 O-ring, air cylinder
554 Cover, STV
555 Cover Packing, STV
558
Adjusting Bolt, suction bypass valve
559 Seal Washer, suction bypass valve
569 Grease, air cylinder
F44 Piston, STV
F46 O-ring
ーー
3
Air Intake (Fixed Speed)
