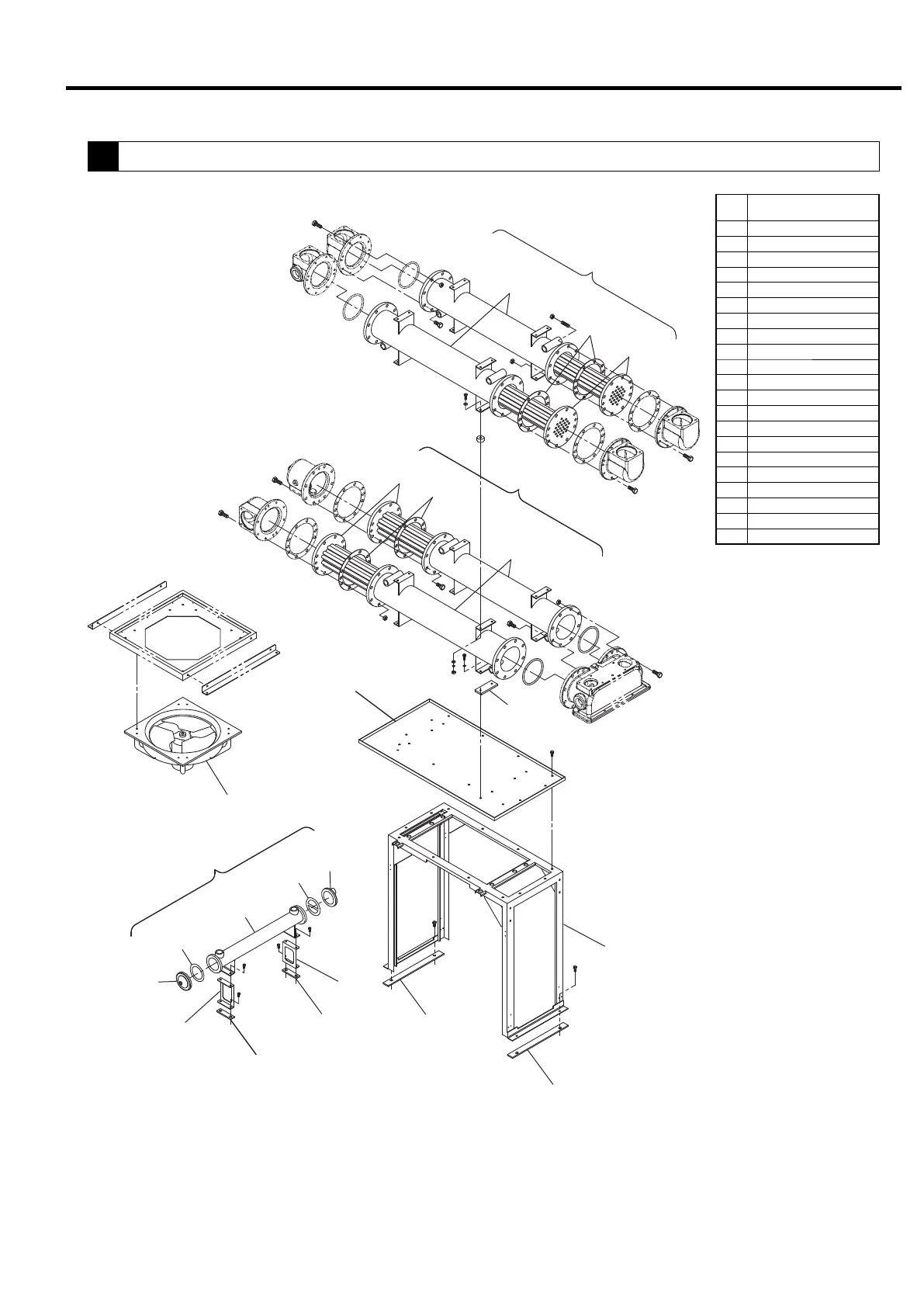

11. PARTS LIST
404
608
601
605
602
610
613
612
611
615
614
616
616
623
625
626
624
637
628
E39
E39
E35
E35
629
Ref.
No.
Description
404 Ventilating Fan
601 Shell, aftercooler
602 Tube Nest, aftercooler
605
Gasket, aftercooler tube nest
608 Aftercooler Assembly
610 Oil cooler Assembly
611 Tube Nest, oil cooler
612
Cover, oil cooler water chamber
613 Gasket, oil cooler water chamber
614 Cover, oil cooler
615 Gasket, oil cooler cover
616 Support, oil cooler
623 Intercooler Assembly
624 Shell, intercooler
625 Tube Nest, intercooler
626
Gasket, intercooler tube nest
628 Base, coolers
629 Support, oil cooler
637
Vibration Isolation Rubber
E35 Vibration Isolation Rubber
E39 Vibration Isolation Rubber
