96

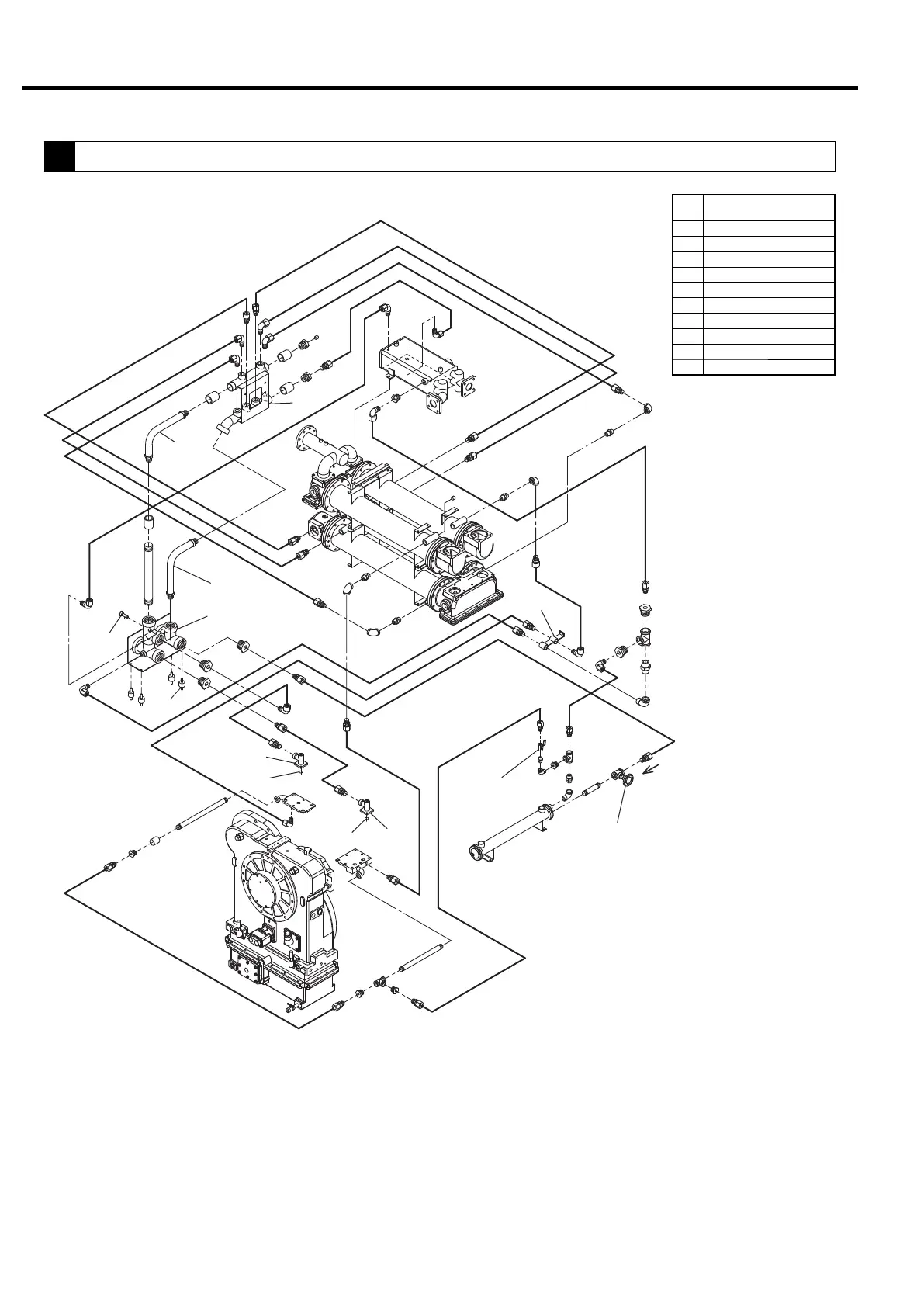

11. PARTS LIST
011
F36
F36
D36
D36
009
009
017
096
B40
B41
018
F47
13
Cooling Water Piping
Ref.
No.
Description
009 Flexible Piping
011 Pet Cock
017
Stop Valve, for a water flow control
018
Seat (4), cooling water piping
096 Water Drain Valve
B40
Seat (1), cooling water piping
B41
Seat (2), cooling water piping
D36 O-Ring
F36
Seat (3), cooling water piping
F47
Vibration Isolation Rubber
