RPK -2.0FSN2M:
Removal of the front panel (only RPK-(1.0-1.5)FSN(H)2M)
Remove the right side cover to connect the gas refrigerant pipes and wiring and to check the drainage water flow.
C A U T I O N
Completely cover the front panel with a sheet of plastic to protect it during installation work.

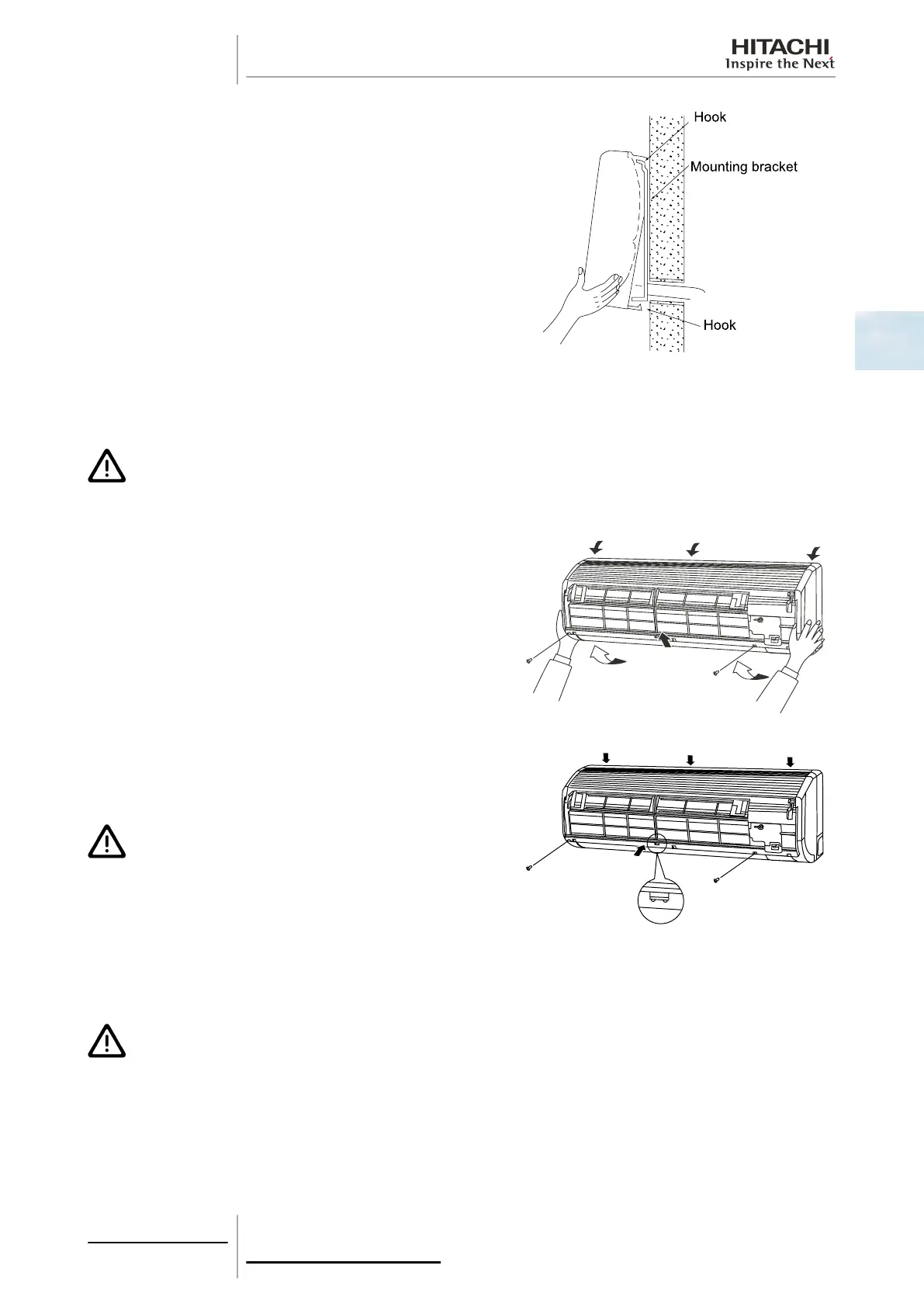

Open the front panel and remove the two screws.
Pull slowly on the bottom of the front panel, making sure the air
outlet does not touch the outlet grille. Then lift the panel slightly to
release the combined parts (three) from the top of the front panel.
C A U T I O N
Do not knock the front panel while removing it as this could
break the panel casing.
Removal of the front panel (RPK -2.0FSN2M only)
Remove the right side cover to connect the gas refrigerant pipes and wiring and to check the drainage water flow.
C A U T I O N
Completely cover the front panel with a sheet of plastic to protect it during installation work.
2 Unit installation
53
SMGB0063 rev. 1 - 10/2010
