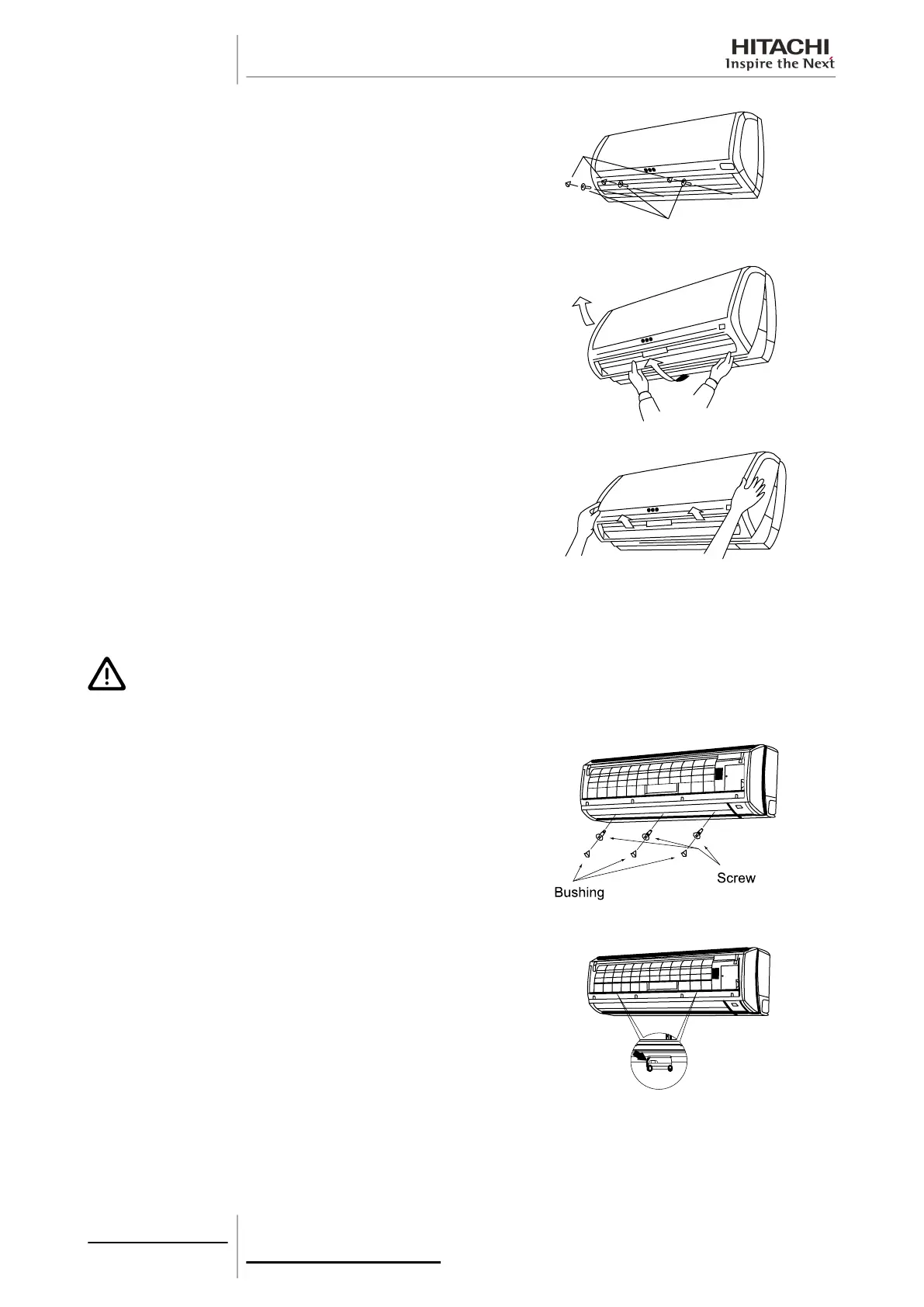

Remove the three bushings and the screws.
Pull slowly on the bottom of the front panel, making sure the air
outlet does not touch the outlet grille.
Then lift the panel slightly to release the combined parts (three)
from the top of the front panel.
Removal of the front panel (only RPK-(2.5-4.0)FSN2M)
Remove the right side cover to connect the gas refrigerant pipes and wiring and to check the drainage water flow.
C A U T I O N
Completely cover the front panel with a sheet of plastic to protect it during installation work.
Remove the three bushings and the screws.
Pull slowly on the bottom of the front panel, making sure the air
outlet does not touch the outlet grille.
2 Unit installation
54
SMGB0063 rev. 1 - 10/2010
