Hitachi F-7100 - Adjustment of Xe Lamp Position Using Distilled Water

6 - 4
(6) Adjust with HORIZONTAL ADJ. so the light at the cell inlet will come to the center of the cell holder
window.
Fig. 6-5
This completes the coarse adjustment of the Xe lamp position. Now proceed to fine adjustment of
the lamp position.
6.1.2 Adjustment of Xe Lamp Position Using Distilled Water (fine adjustment)
(
1) Click (analytical method) on the measurement toolbar and set “time scan” for the measuring
mode under [General] tab on the Method window. Next select the [Instrument] tab and set the
following conditions.
 Data mode : Luminescence
 EX WL : 350
 EM WL : 400
 Time unit : ｓ
 Scan time : 2400
 Delay : 0
 EX Slit : 5
 EM Slit : 5
 PMT Voltage : 700
 Response (s) : 0.002

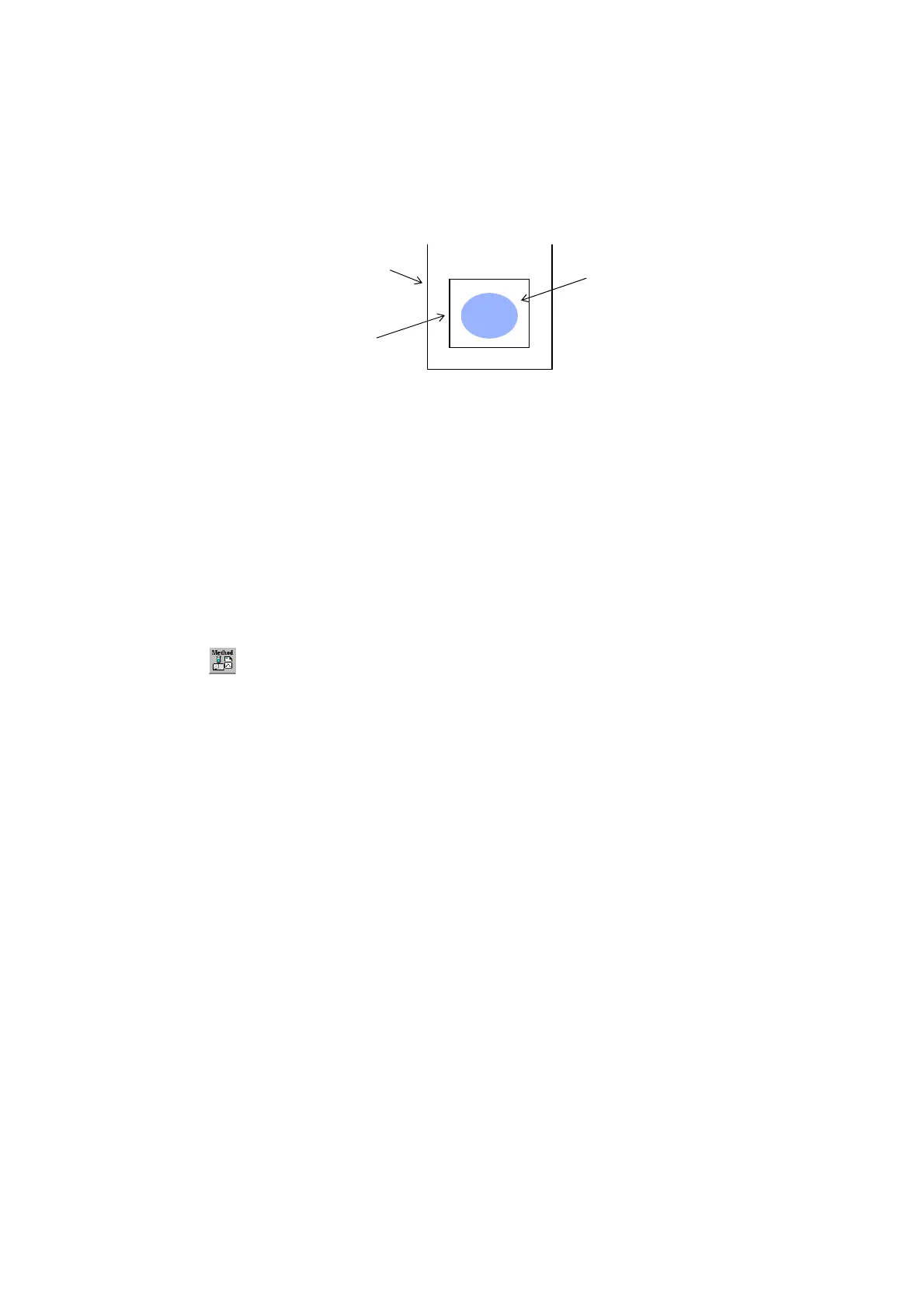

Cell holder
window
Cell holder
Cell inlet
Light beam
