6.1.3 Out of band signaling(SATA)
C O M R ES ET/C O M IN IT
t1
t2
t3
t4
C O M W A K E

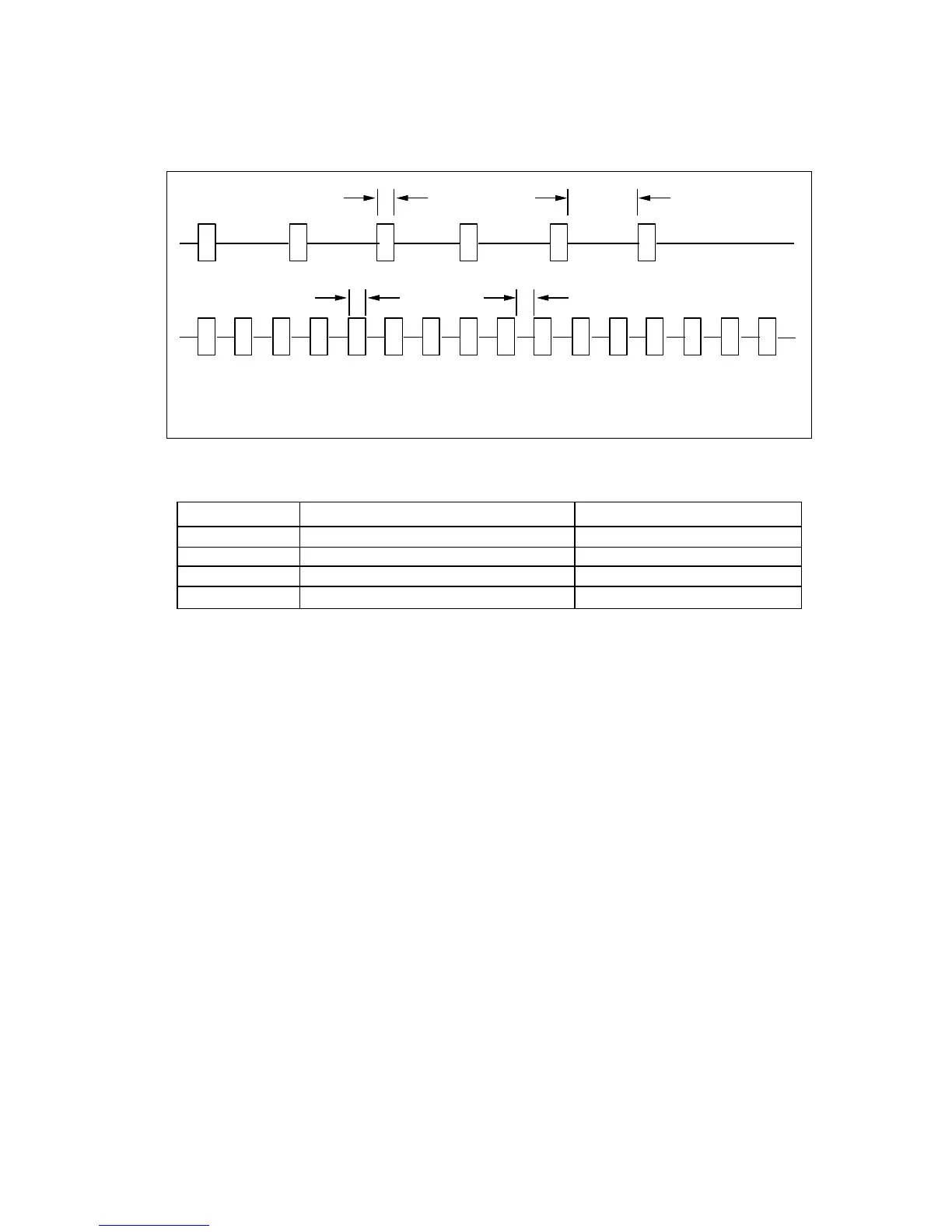

Figure 3 the timing of COMRESET, COMINIT and COMWAKE
PARAMETER DESCRIPTION
Nominal (ns)
t1
ALIGN primitives
106.7
t2
Spacing
320
t3
ALIGN primitives
106.7
t4
Spacing
106.7
Table 11 Parameter descriptions
