124

MAINTENANCE

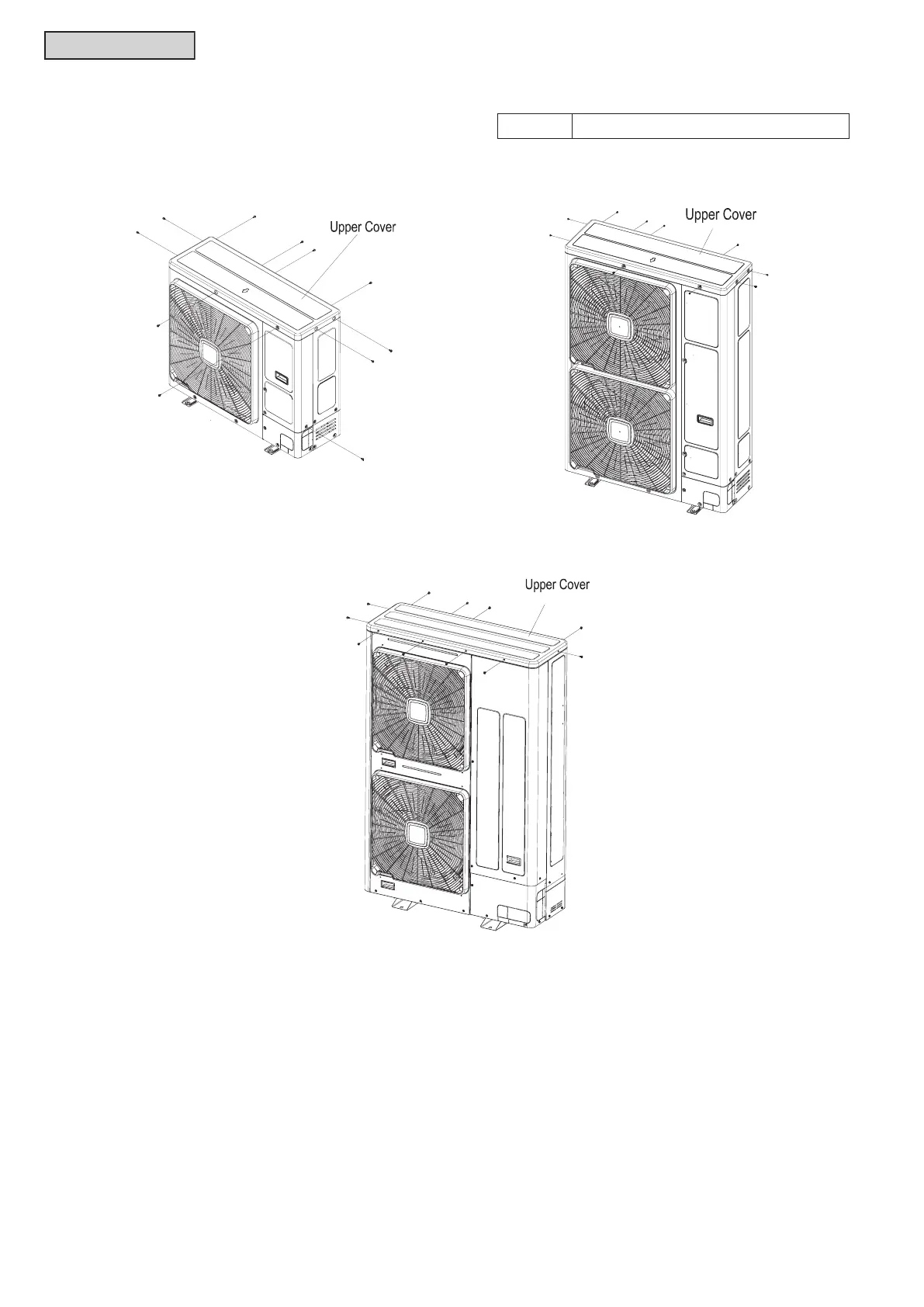

1.3 Removing Upper Cover

After removing the securing screws for the upper cover, lift the upper cover up.

Tool Gloves, Phillips Screwdriver

Model: 3~3.5HP Model: 4~6.5HP

Model: 7~12HP
