Hitachi UX2 Series User Manual

Chapter 2 Component Names and Functions
2-5
Chapter 2.
2.2. Unit Internal Parts Arrangement
The internal structure of the unit is as follows.

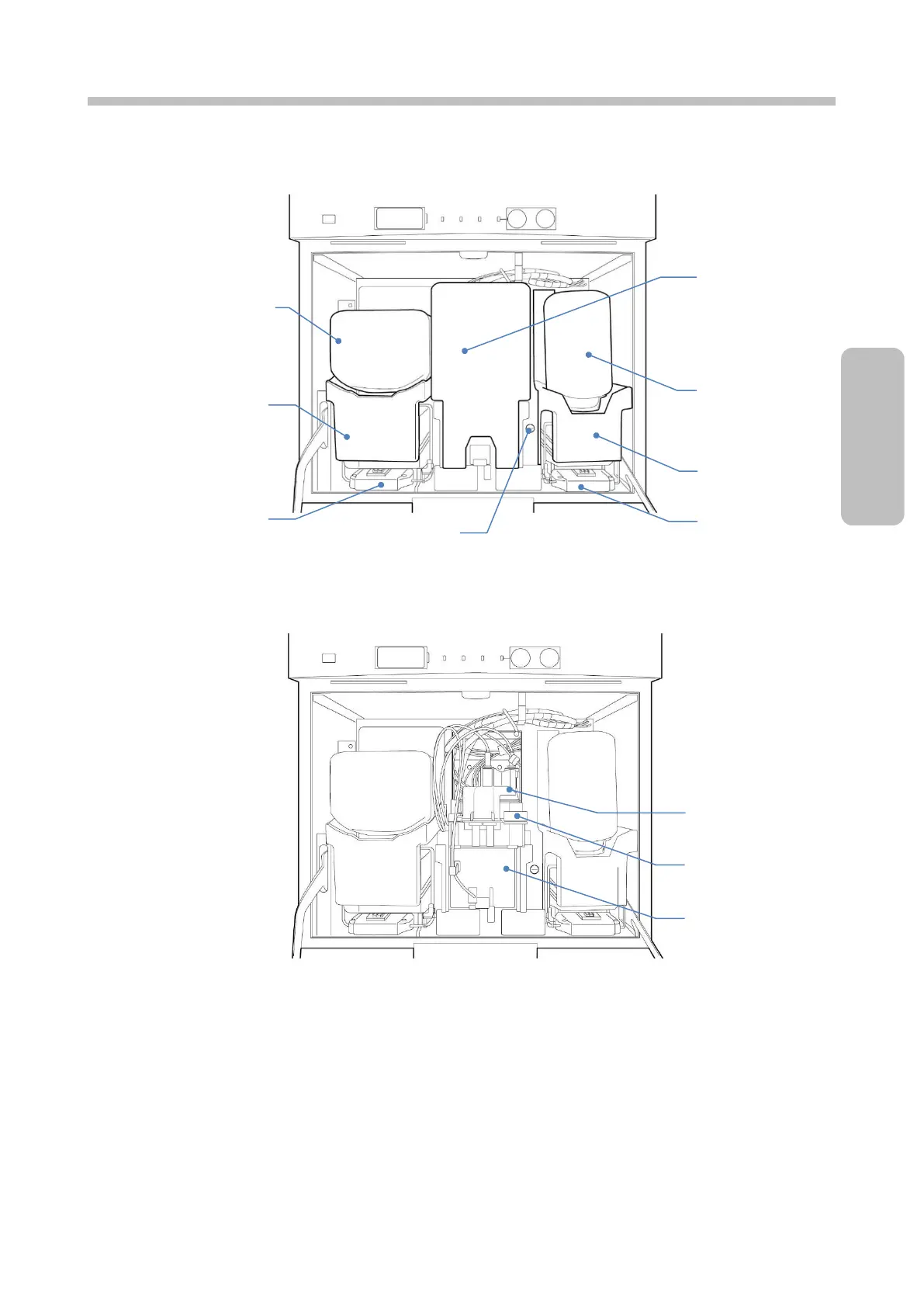

Appearance with inner cover removed
*1: The ink cartridge bottle and the makeup cartridge bottle are optional parts.
Inner cover
Makeup cartridge
bottle 1 (*1)
Ink cartridge bottle
(*1)
Makeup
reservoir
Ink reservoir
Lever handle
Lever handle
Ink pressure
adjusting screw
Ink filter
Recovery filter
Main ink tank
