Chapter 2 Component Names and Functions
2-6
2.3. Print Head

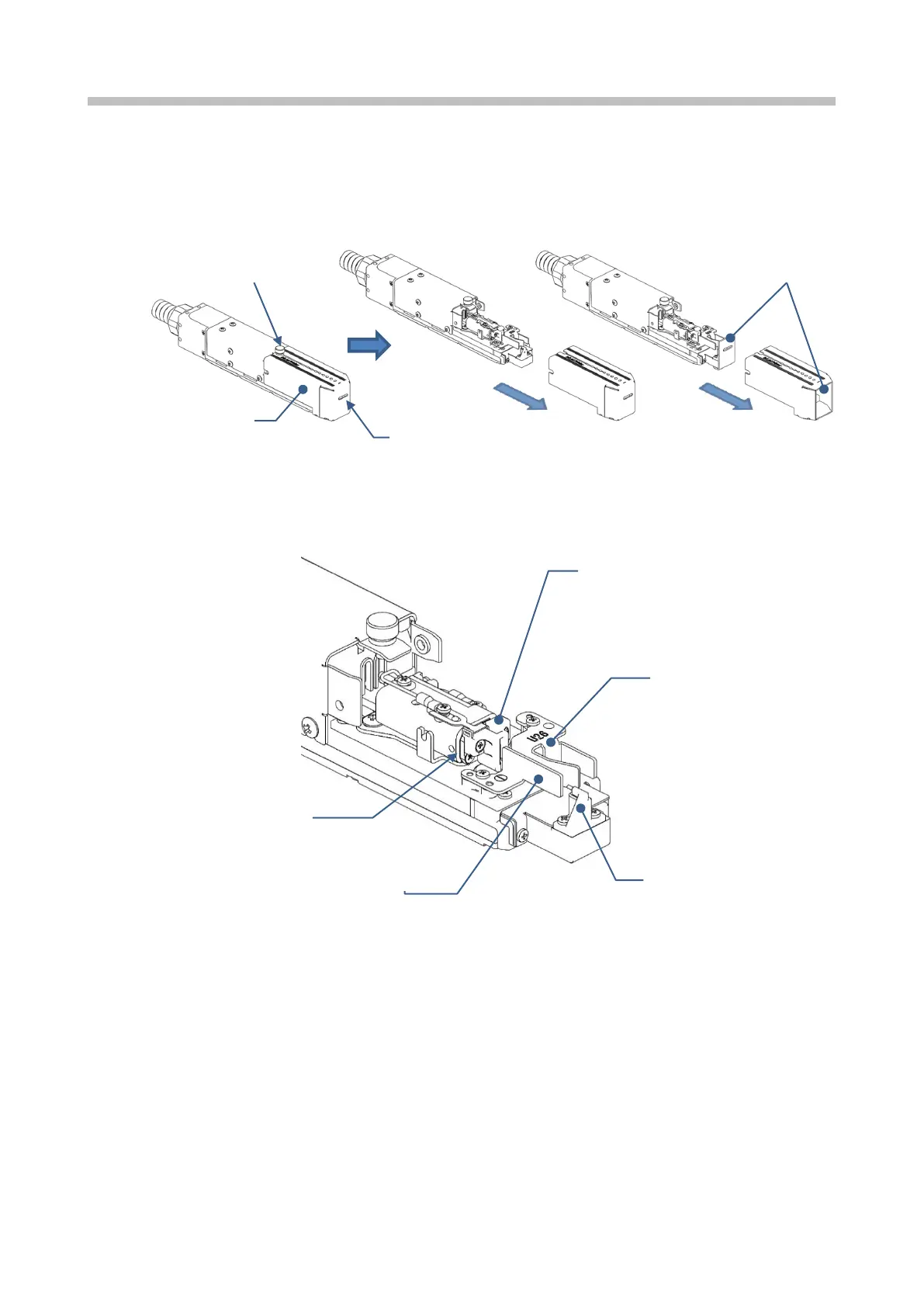

The internal structure of the print head is as follows.
UX2-D160W (Standard model) UX2-D160W with cleaning station
The internal structure of the print head (inside the dotted box in the figure above) is as follows.
Head cover lock screw
Loosen to remove the print
head cover.
Print head
cover
Pull out
Pull out
The ends of the print head
cover and the gutter are
different from those of the
standard model.
Ink ejection port
Charge electrode
Nozzle orifice
Gutter
Minus deflection
electrode
Plus deflection
electrode
