Chapter 4. Ink and Makeup Replenishment
4-7
Chapter 4.
When the ink ID is recognized, the lever handle on the ink side is unlocked.
(1) Tilt the lever handle toward yourself, (2) lift it, and (3) remove the cartridge bottle.
NOTE
● If the lever handle cannot be lifted, do not pull it with excessive force but push the lever handle
all the way in.
NOTE
● After removing the cartridge bottle from the unit, face the cap upward immediately.
Also, do not expose the removed cartridge bottle to any impact.
Doing so may cause ink to splatter.
● Do not turn the cartridge bottle with the cartridge bottle set in the unit.
The ink cap may become loose, causing ink to overflow.
● Do not put waste solution in a used cartridge bottle.
Otherwise, waste solution may spill. Note that a used cartridge bottle is not completely sealed
even when the over cap is mounted.
● If a used cartridge bottle is filled with ink or makeup and reused, ink or makeup may spill.
Lever handle
Push in
3
4

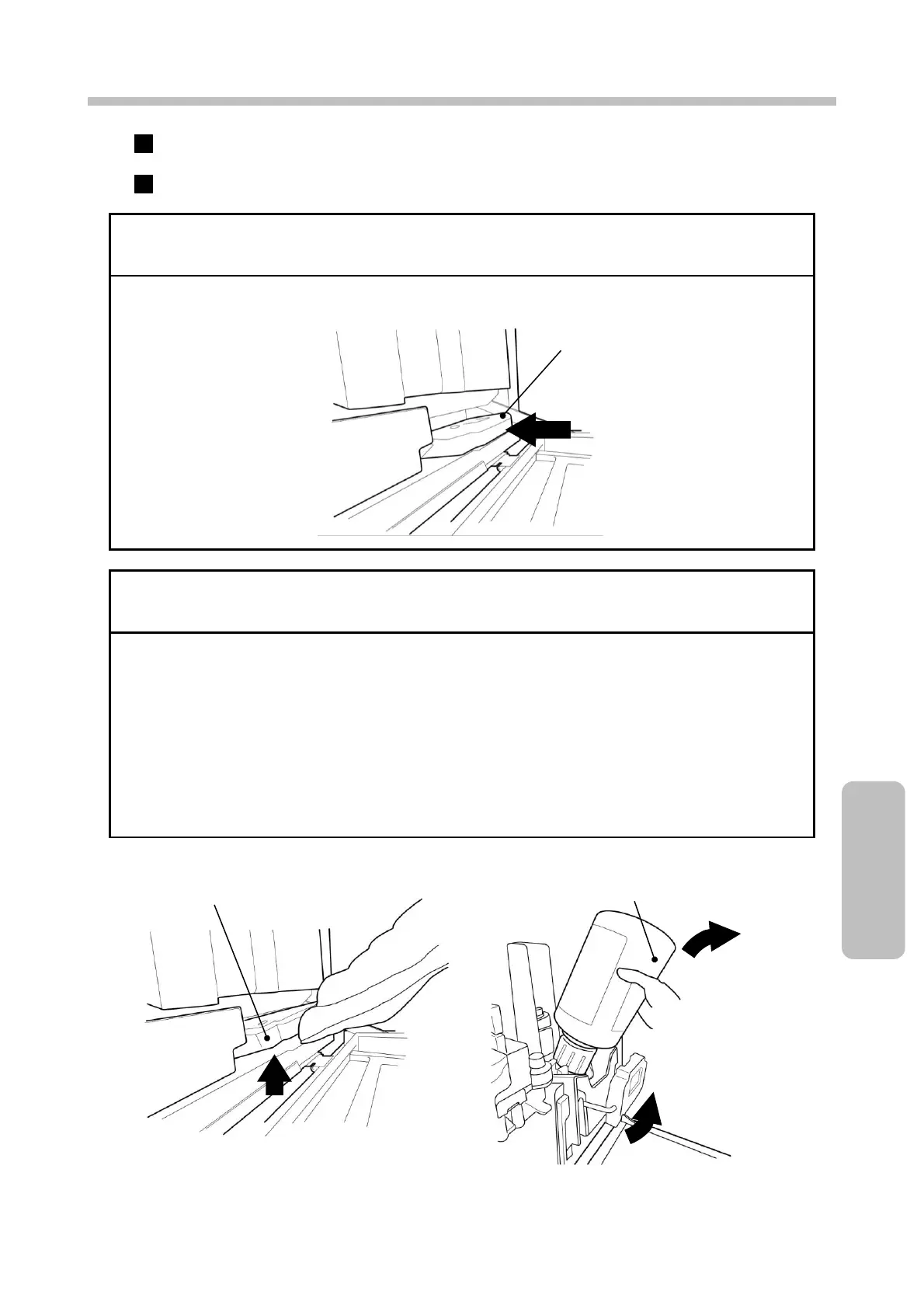

Lift the lever handle and remove the empty
cartridge bottle.
Lever handle
(3)
(1)
(2)
