Hitachi Virtual Storage Platform 5000 Series - Controller Board

Number Item
1 Power supply unit
2 Front-end director
3 LAN blade
4 Fabric-Acceleration Module
5 Back-end director
Number Item Description

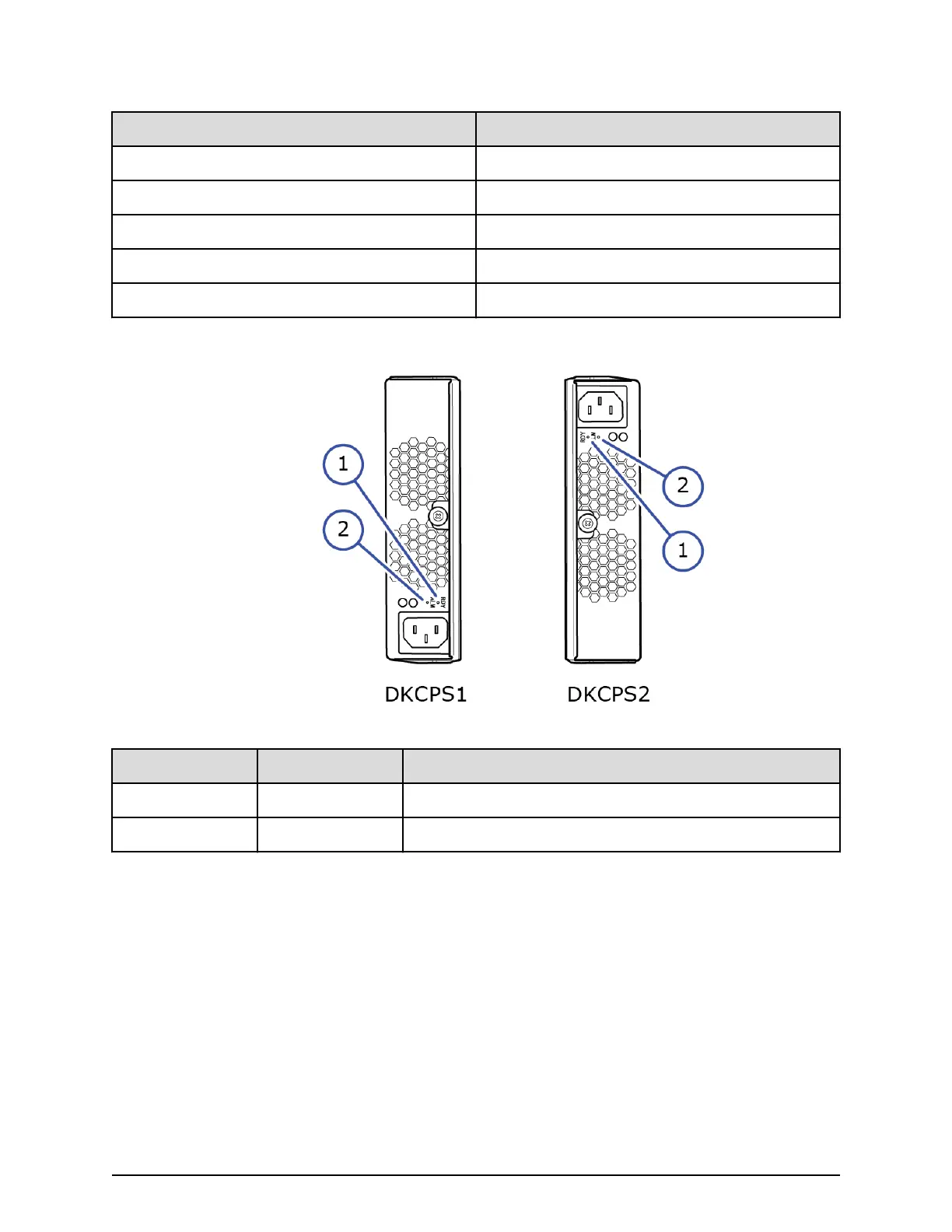

1 ALM / RDY LED Red: Power supply unit can be replaced.
2 RDY LED Green: Normal operation.
Controller board
Controller board
Chapter 2: Hardware overview
