Identifier Name Description

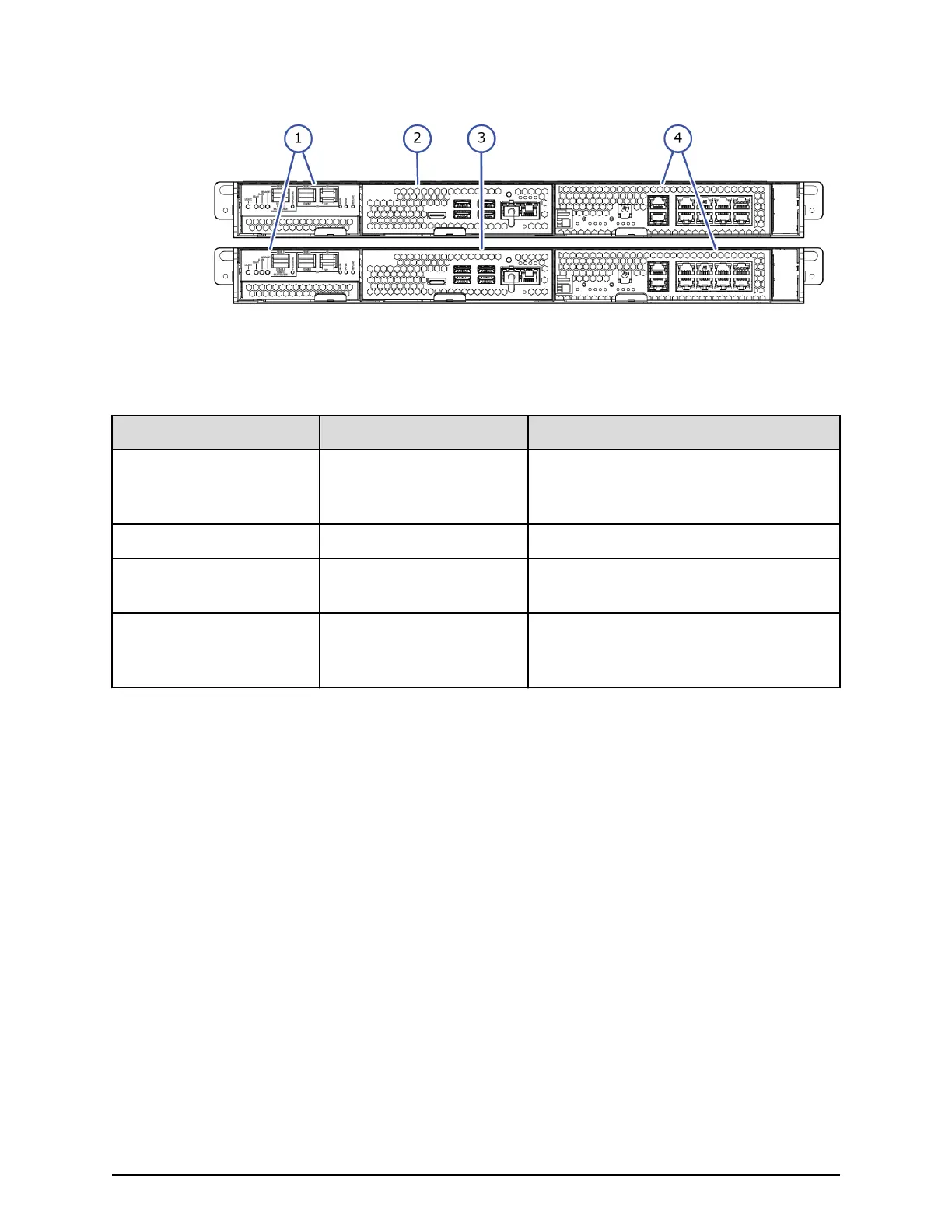

1 Operation Panel The operation panel show system status
with LED, and controls power on and o
of the storage system.
2 Backup Service Processor A redundant SVP in case main SVP fails.
3 Main Service Processor The SVP provides status information
about the storage system.
4 Ethernet Switch (SSVP) The SSVP is a LAN hub that connects the
SVP to each controller chassis, optional
SSVP, and maintenance PC.
Node interconnect switch
Chapter 2: Hardware overview
Hitachi Virtual Storage Platform 5000 Series Hardware Guide 42
