Hitachi Virtual Storage Platform User Manual

Hitachi VSP User and Reference Guide
A–10
Specifications
Three Phase PDU
2345678
A
B
C D
DWG NO:
REV
SHEET:
OF
DRAWN
CHECKED & APP.
TITLE
DRAWING NOT TO SCALE
PART NUMBER:
QTY PER UNIT:
1
MATERIAL TYPE:
MATERIAL GAUGE:
FINISH:
GREAT LAKES CASE & CABINET CO., INC.
P.O. BOX 551 EDINBORO, PA 16412
PHONE (814) 734-7303 FAX (814) 734-3907
E-MAIL glcc@greatcabinets.com
Use of this document is subject to a confidentiality and nondisclosure agreement with Great Lakes Case & Cabinet Co., Inc. (GLCC) and may not be reproduced, disclosed or utilized in whole or in part without prior written authorization from GLCC.
NOTICE:
TOLERANCE UNLESS OTHERWISE NOTED:
ANGULAR +/- 1
`
.XXXX +/- .010
.XXX +/- .015
.XX +/- .030
.X FOR REF. ONLY
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN INCHES
DIMENSIONAL LIMITS APPLY
AFTER APPLICATION OF FINISH
INTERPRET DRAWING PER ASME Y14.5M-1994
THIRD ANGLE PROJECTION
DATE
DATE
1
1
-
-
-
-
-
-
PS1474B

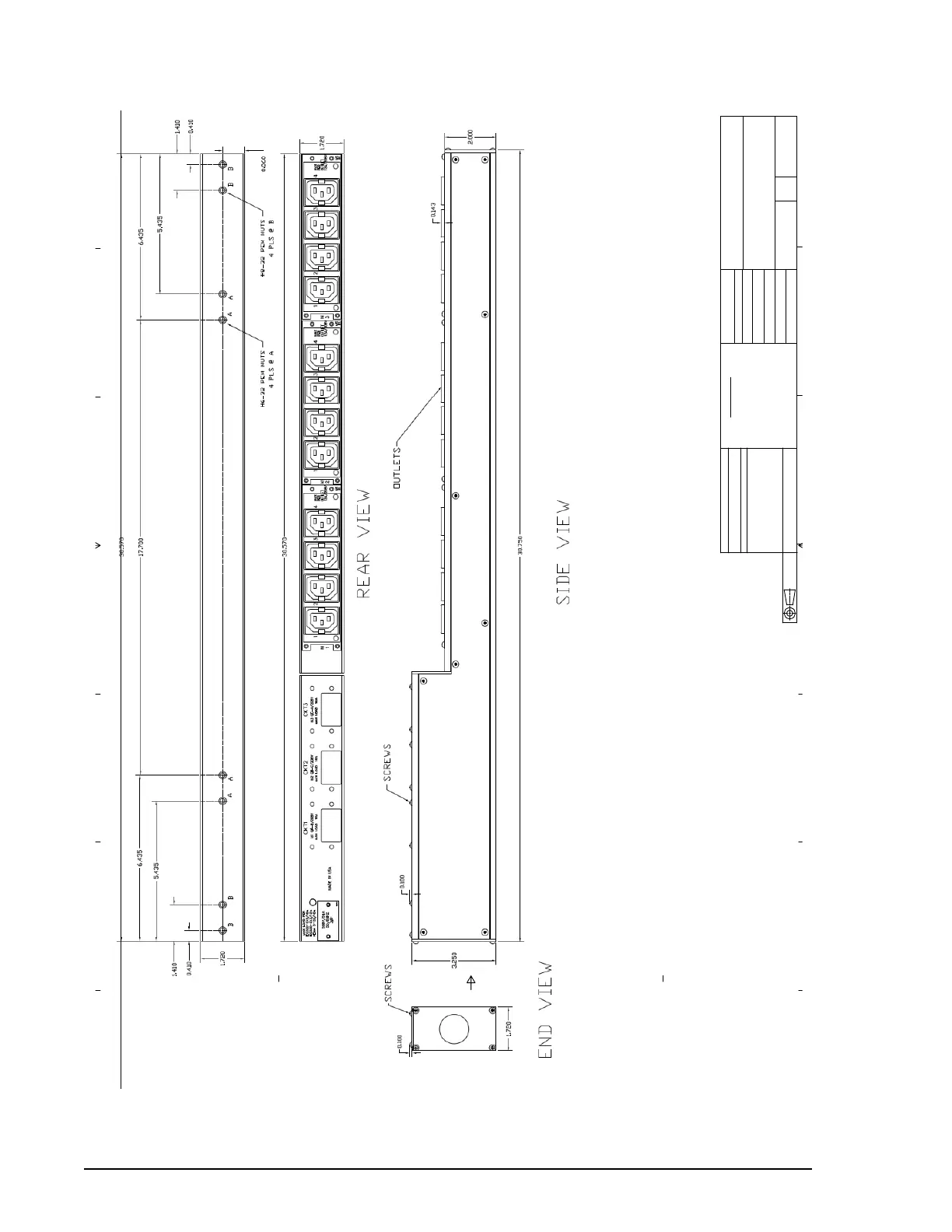

PDU WITH L15-30P
GreatLakesCase&CabinetsInc. Part#PS1474B
 1.Shippingpleaseensure(1)unitsperbox
2.BoxLabelsEachboxtohaveonelabelthatdisplaysthe
SerialNumberoftheunitinside. 3.LabelsonPDUETLandSerialnumberlabels
4.MountingbracketsOnesetofUniversalbracketsperun
it
5.PlugRetainerClipsYes(builtin)(12xC13RL)
6.
Power cordColorBlack
7.Power cordLength10 ft 8.PlugColorBlack
9.PlugTypeL1530P(IP20)(4wire3pole)
10.CaseColorAluminum
11.Amperage30Amps 12.Voltage208V 13.Dimensions30.57”x3.25”x1.72”
14.CircuitbreakerspecificationsUL489 15.
PhaseThree(3)

Hitachi Virtual Storage Platform Specifications

General

Drive Types	SSD, SAS
RAID Support	RAID 1, RAID 5, RAID 6, RAID 10
Connectivity	Fibre Channel, iSCSI, FCoE
Form Factor	Rack-mounted
Category	Enterprise Storage System
Data Reduction	Deduplication and Compression (capabilities vary by model and software version)
Operating System Compatibility	Windows, Linux, UNIX, VMware
High Availability	Redundant components
Scalability	Scale-up and scale-out
Model	Virtual Storage Platform (VSP)
