Hitachi VM-E535LE User Manual

ENGLISH

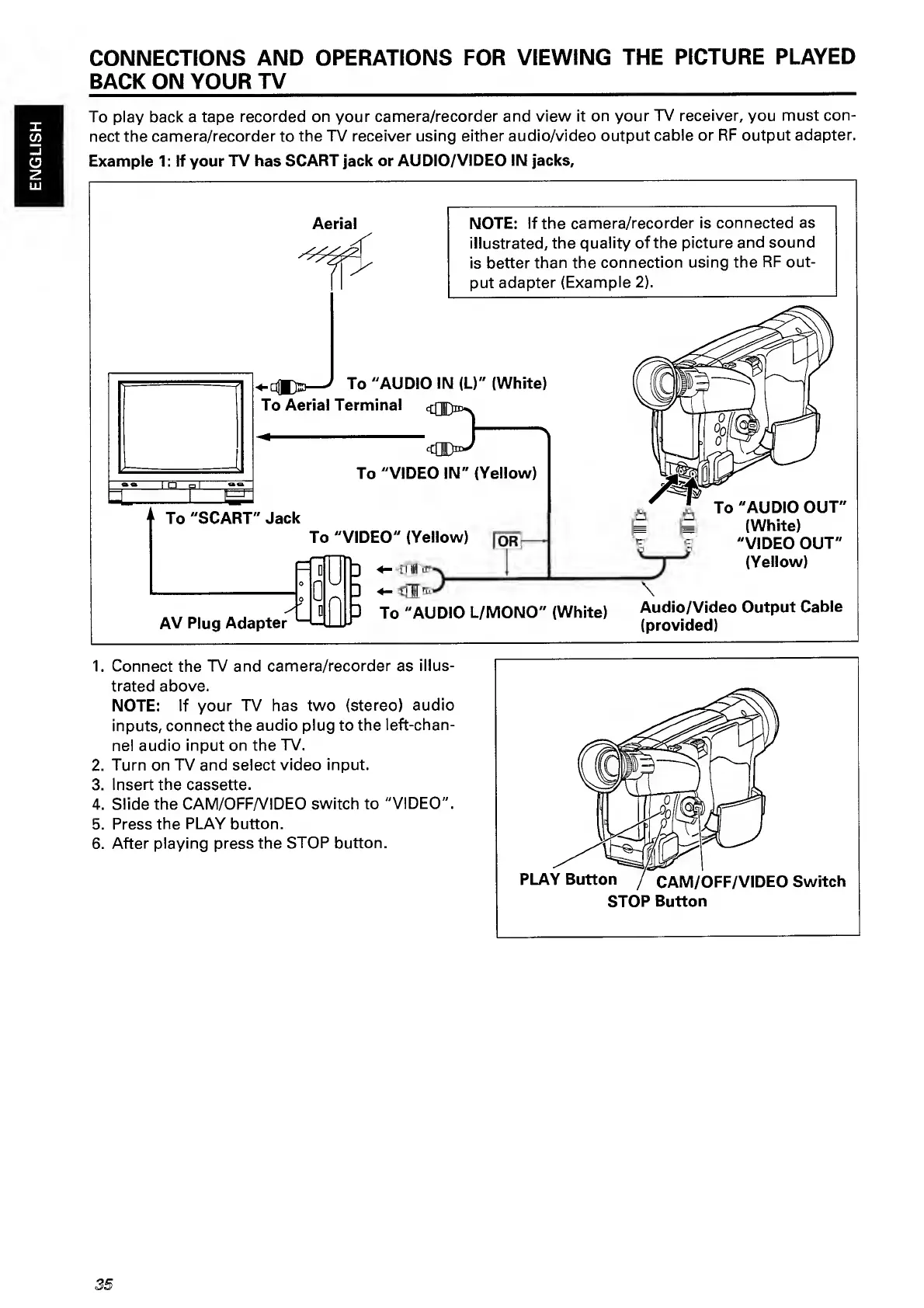

CONNECTIONS AND OPERATIONS FOR VIEWING THE PICTURE PLAYED
BACK ON YOUR TV
To play back a tape recorded on your camera/recorder and view it on your TV receiver, you must con¬
nect the camera/recorder to the TV receiver using either audio/video output cable or RF output adapter.
Example 1: If your TV has SCART jack or AUDIO/VIDEO IN jacks.
Aerial
NOTE: If the camera/recorder is connected as
illustrated, the quality of the picture and sound
is better than the connection using the RF out¬
put adapter (Example 2).
<-c^ To "AUDIO IN (L)" (White)
To Aerial Terminal
To "VIDEO IN" (Yellow)
To "SCART" Jack
To "VIDEO" (Yellow) [or!
AV Plug Adapter
□
D «
D <
D To "AUDIO L/MONO" (White)
To "AUDIO OUT"
t t i (White)
Y "VIDEO OUT"
(Yellow)
\
Audio/Video Output Cable
(provided)
1. Connect the TV and camera/recorder as illus¬
trated above.
NOTE: If your TV has two (stereo) audio
inputs, connect the audio plug to the left-chan¬
nel audio input on the TV.
2. Turn on TV and select video input.
3. Insert the cassette.
4. Slide the CAM/OFF/VIDEO switch to "VIDEO".
5. Press the PLAY button.
6. After playing press the STOP button.
35
