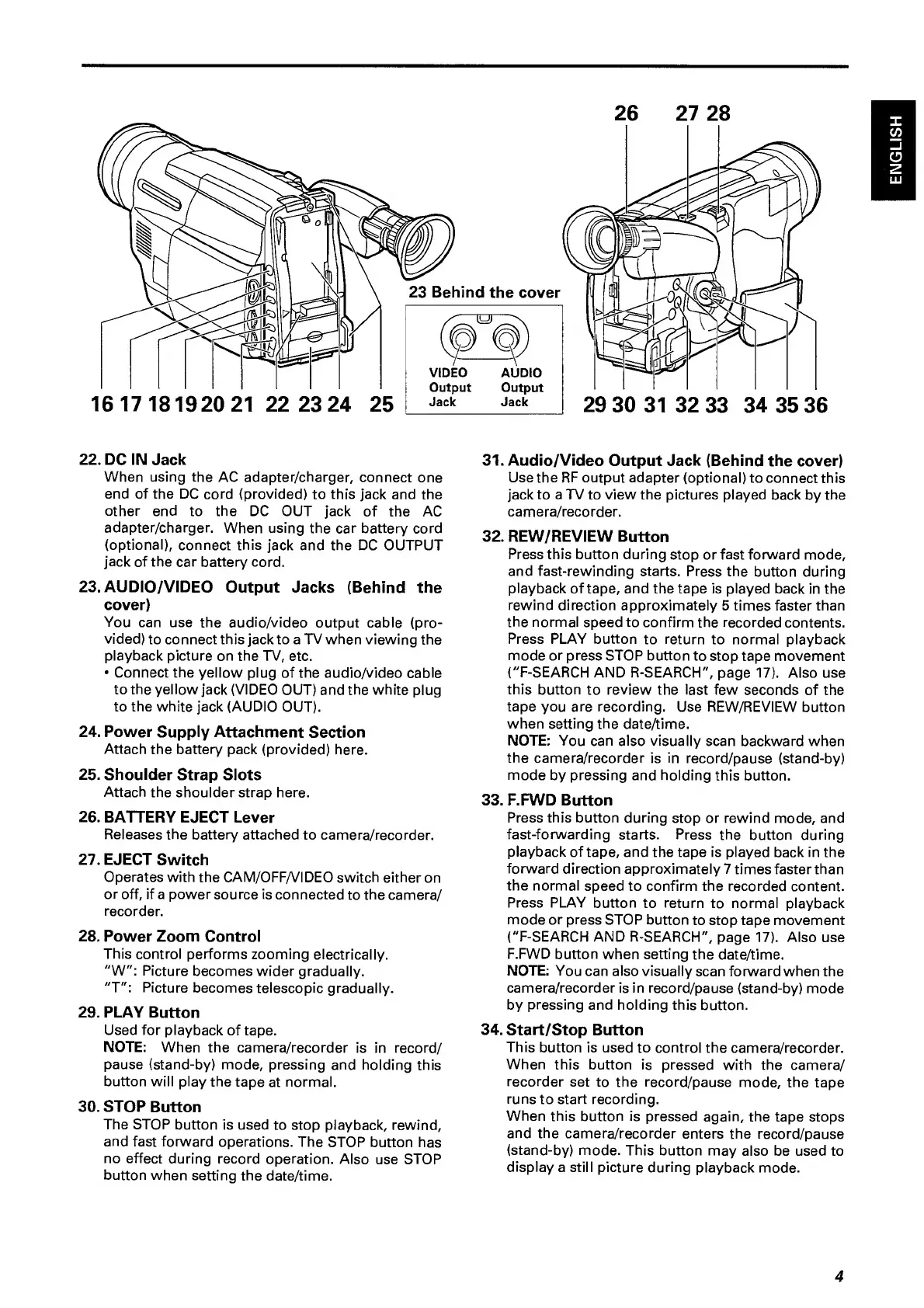

26 27 28
22. DC IN Jack
When using the AC adapter/charger, connect one
end of the DC cord (provided) to this jack and the
other end to the DC OUT jack of the AC
adapter/charger. When using the car battery cord
(optional), connect this jack and the DC OUTPUT
jack of the car battery cord.
23. AUDIO/VIDEO Output Jacks (Behind the
cover)
You can use the audio/video output cable (pro¬
vided) to connect this jack to a TV when viewing the
playback picture on the TV, etc.
• Connect the yellow plug of the audio/video cable
to the yellow jack (VIDEO OUT) and the white plug
to the white jack (AUDIO OUT).
24. Power Supply Attachment Section
Attach the battery pack (provided) here.
25. Shoulder Strap Slots
Attach the shoulder strap here.
26. BATTERY EJECT Lever
Releases the battery attached to camera/recorder.
27. EJECT Switch
Operates with the CAM/OFF/VIDEO switch either on
or off, if a power source is connected to the camera/
recorder.
28. Power Zoom Control
This control performs zooming electrically.
"W": Picture becomes wider gradually.
"T": Picture becomes telescopic gradually.
29. PLAY Button
Used for playback of tape.
NOTE: When the camera/recorder is in record/
pause (stand-by) mode, pressing and holding this
button will play the tape at normal.
30. STOP Button
The STOP button is used to stop playback, rewind,
and fast forward operations. The STOP button has
no effect during record operation. Also use STOP
button when setting the date/time.
31. Audio/Video Output Jack (Behind the cover)
Use the RF output adapter (optional) to connect this
jack to a TV to view the pictures played back by the
camera/recorder.
32. REW/REVIEW Button
Press this button during stop or fast forward mode,
and fast-rewinding starts. Press the button during
playback of tape, and the tape is played back in the
rewind direction approximately 5 times faster than
the normal speed to confirm the recorded contents.
Press PLAY button to return to normal playback
mode or press STOP button to stop tape movement
("F-SEARCH AND R-SEARCH", page 17). Also use
this button to review the last few seconds of the
tape you are recording. Use REW/REVIEW button
when setting the date/time.
NOTE: You can also visually scan backward when
the camera/recorder is in record/pause (stand-by)
mode by pressing and holding this button.
33. F.FWD Button
Press this button during stop or rewind mode, and
fast-forwarding starts. Press the button during
playback of tape, and the tape is played back in the
forward direction approximately? times faster than
the normal speed to confirm the recorded content.
Press PLAY button to return to normal playback
mode or press STOP button to stop tape movement
("F-SEARCH AND R-SEARCH", page 17). Also use
F.FWD button when setting the date/time.
NOTE: You can also visually scan forward when the
camera/recorder is in record/pause (stand-by) mode
by pressing and holding this button.
34. Start/Stop Button
This button is used to control the camera/recorder.
When this button is pressed with the camera/
recorder set to the record/pause mode, the tape
runs to start recording.
When this button is pressed again, the tape stops
and the camera/recorder enters the record/pause
(stand-by) mode. This button may also be used to
display a still picture during playback mode.
4
