MAINTENANCE
7-126

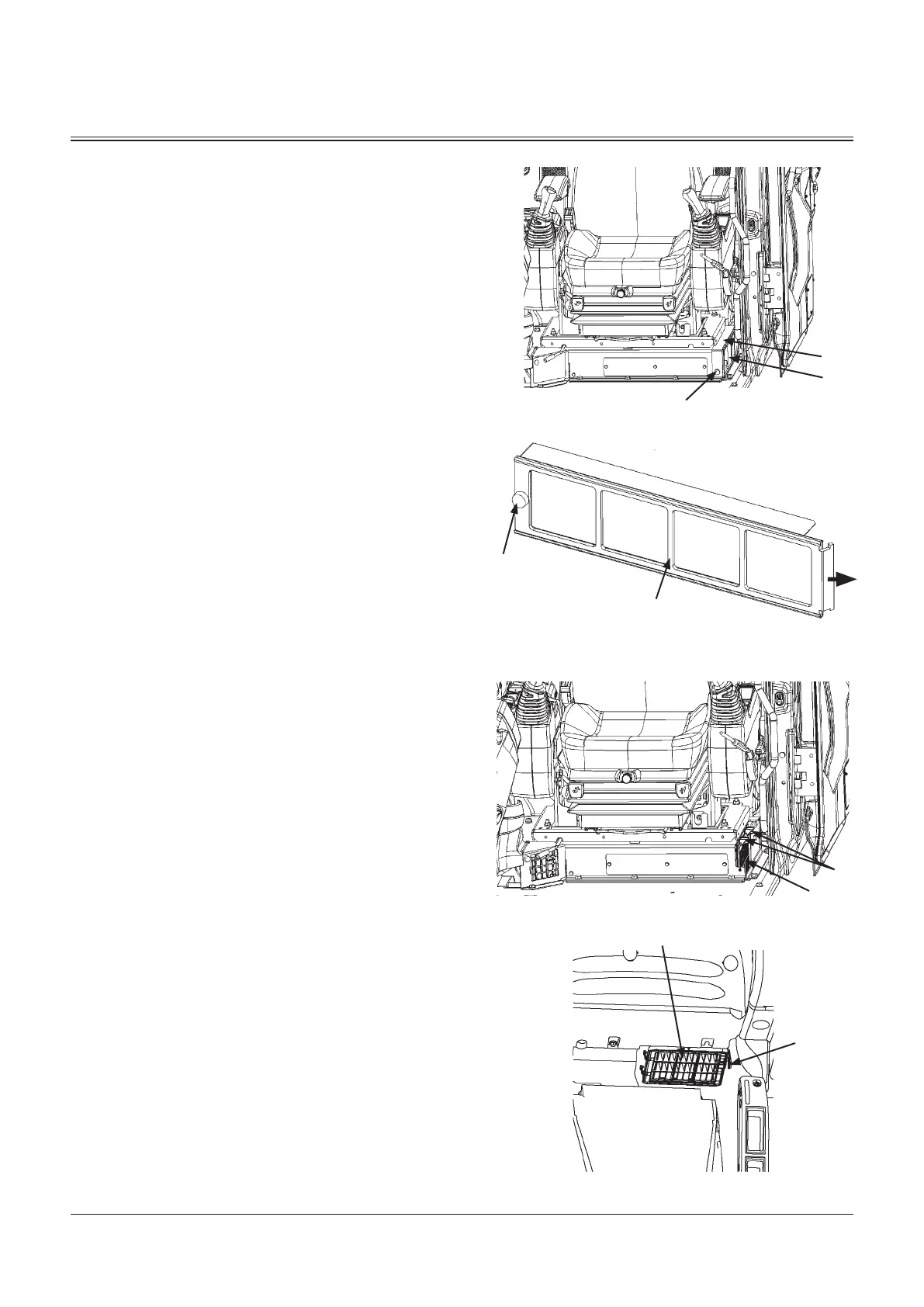

Removing Circulating Air Filter (Outside)
ZX135US-6, 225USLC-6
1. Circulating air filter (outside) (1) is located beside the
seat stand.
2. Remove screws (2). Remove circulating air filter (outside)
cover (3) by pulling it toward the cab front.
3. Remove screws (4). Remove circulating air filter (outside)
(1) by sliding it to the arrow direction.
Removing Circulating Air Filter (Inside)
ZX135US-6, 225USLC-6
1. Remove circulating air filter (inside) (5) by holding grip
(6) and pulling it toward you through the opening for
cover (3).
Removing Circulating Air Filter
ZX345USLC-6
1. Circulating air filter (5) is located under the rear tray.
2. Holding grips (6), pull them toward you to remove.
MDCN-07-060
MDCN-07-061
MDCN-07-062
1
2
3
1
4
5
6
6
5
MDAA-07-039
ZX135US-6, 225USLC-6
ZX135US-6, 225USLC-6
ZX135US-6, 225USLC-6
ZX345USLC-6
