MAINTENANCE
7-127
d
WARNING: When using compressed air pressure, wear
safety glasses or goggles.
Cleaning
Clean the circulating and fresh air filters.
Clean both the external and internal filters by blowing
compressed air or washing with water.
Washing procedure with water is as follows:
1. Use tap water.
2. Submerge the filter in water containing a neutral
detergent for about 5 minutes.
3. Clean the filter with water again.
4. Dry the filters.

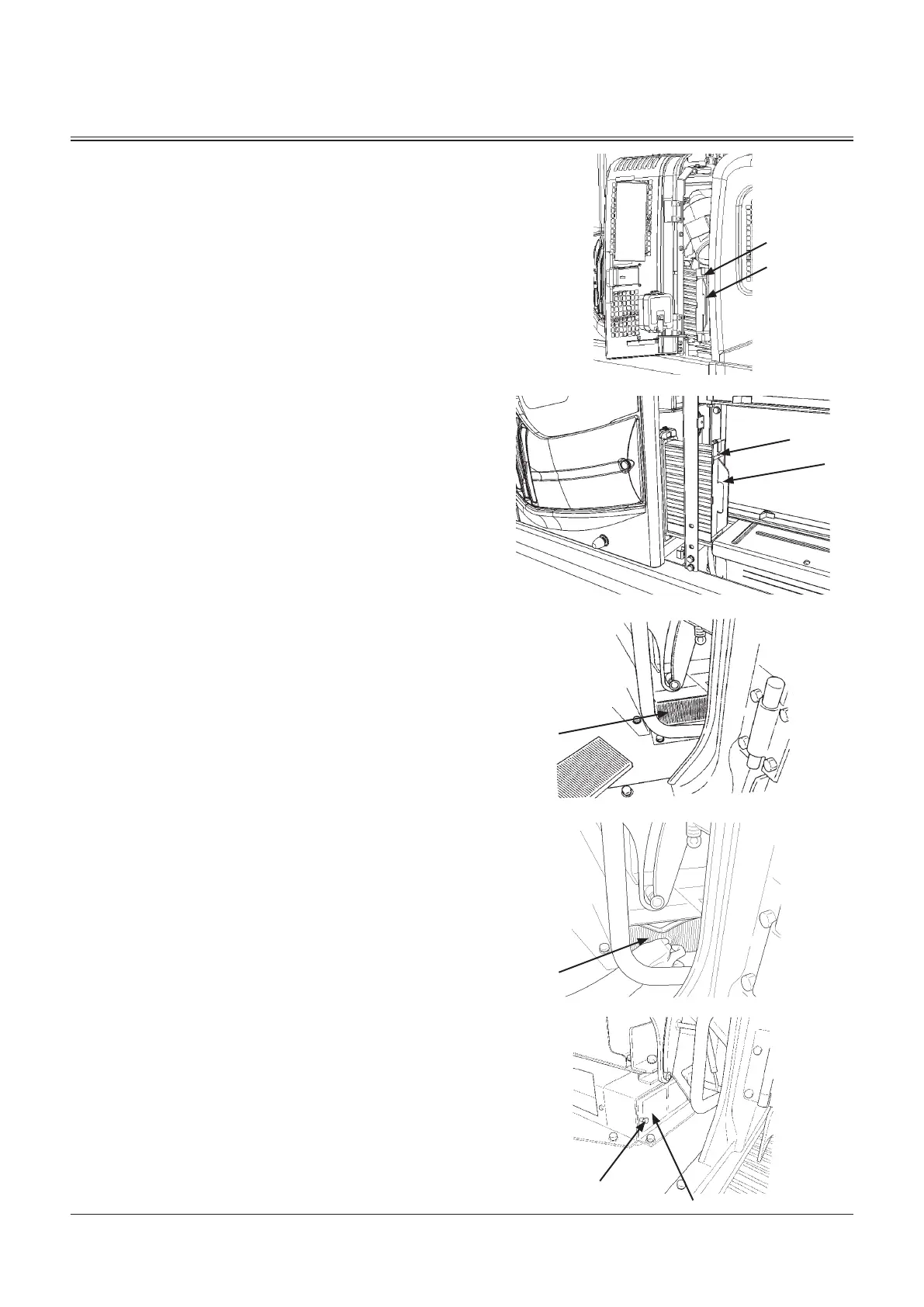

Installation
ZX135US-6, 225USLC-6
Fresh air filter (2)
Install fresh air filter (2) so that the direction of the arrow
points inside the cab.
After installing fresh air filter (2), install the filter cover by
fitting it with the duct.
Circulating Air Filter (Inside) (7)
Install filter (rear section in two pieces) (7) into the groove
and slide it toward the cab rear side. Then, install filter
(front section in two pieces) (7) into the groove.
Latch circulating air filter (outside) (5) into the seat stand.
Slide it toward the cab rear side and secure it with screw
(6).
ZX345USLC-6
When installing the cleaned circulating/fresh air filters or
new filters, follow the reverse order of the Removing Filter
procedures described on the previous page.
MDCN-07-057
MDCN-07-059
ZX135US-6
ZX225USLC-6
2
Arrow-mark
2
Arrow-mark
M1U4-07-020
M1CC-07-012
M1CC-07-013
5
6
7
7
To Next Page
