MAINTENANCE
7-165

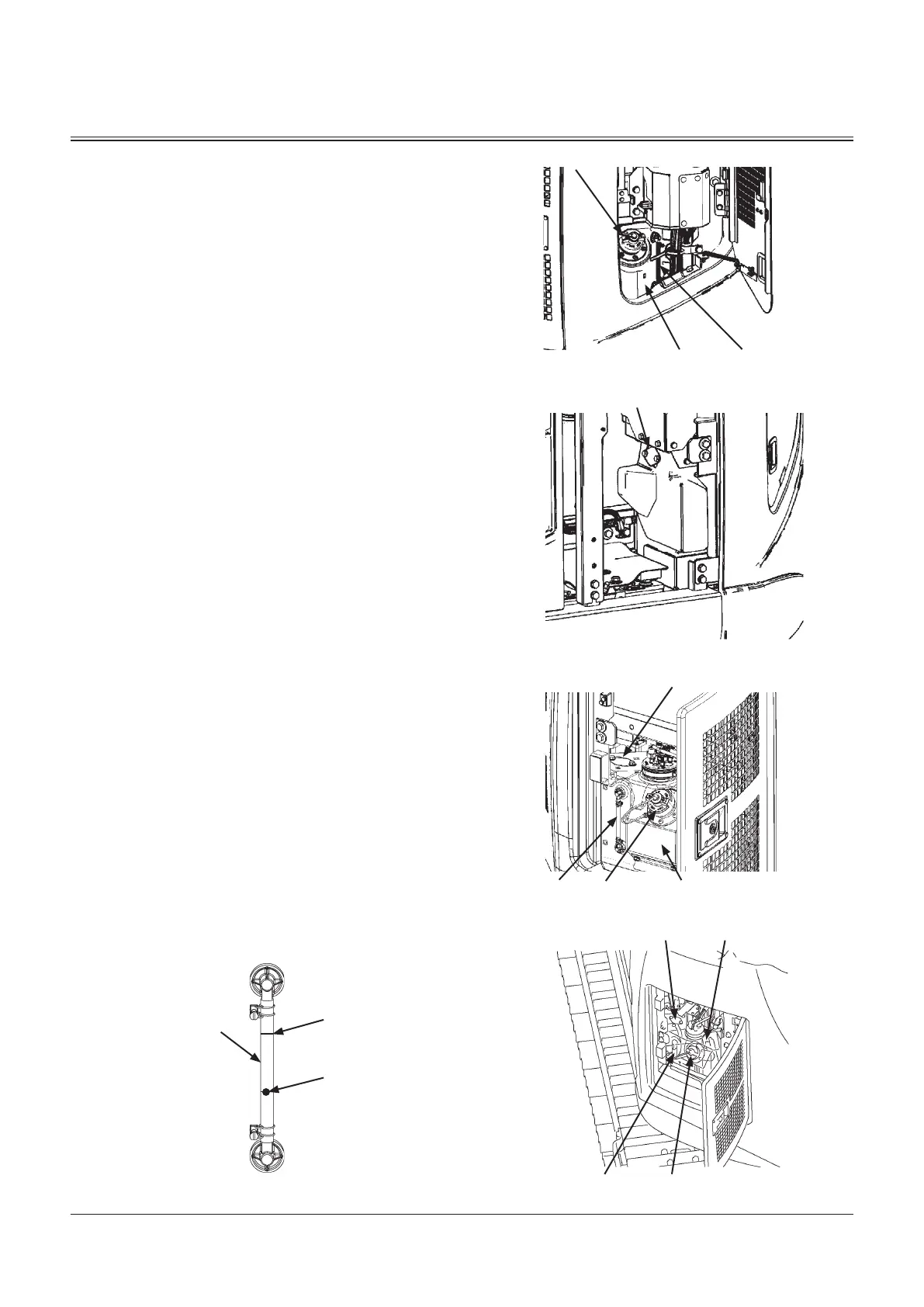

4. Remove cap (3) from DEF/AdBlue® tank (2) and refill DEF/
AdBlue®. Be sure to stop refilling before the “F” line by
checking the level gauge (4) float.
IMPORTANT:
Make sure the containers and equipment used for
refilling and free of contaminants, such as sand, mud
and dirt. If any contaminants are present, either
rinse them off with soft water or wipe them off with a
clean cloth before refilling.
Take care not to allow dust and/or water to enter the
DEF/AdBlue® tank when refilling.
Put cap (3) of DEF/AdBlue® tank (2) on the cap holder
to prevent the cap from contamination.
If DEF/AdBlue® is filled above the “F” line, the system
may be damaged during operation or tank (2) may
be broken when frozen.
F Line
F
Float
Level Gauge
4
MDC1-07-053
MDAT-07-044
MDAT-07-045
3
5
4
3 2
2 4
ZX225USLC-6
ZX135US-6
ZX135US-6
MDAT-07-046
5
MDD5-07-037
25
4 3
ZX345USLC-6
