SPECIFICATIONS
12-2

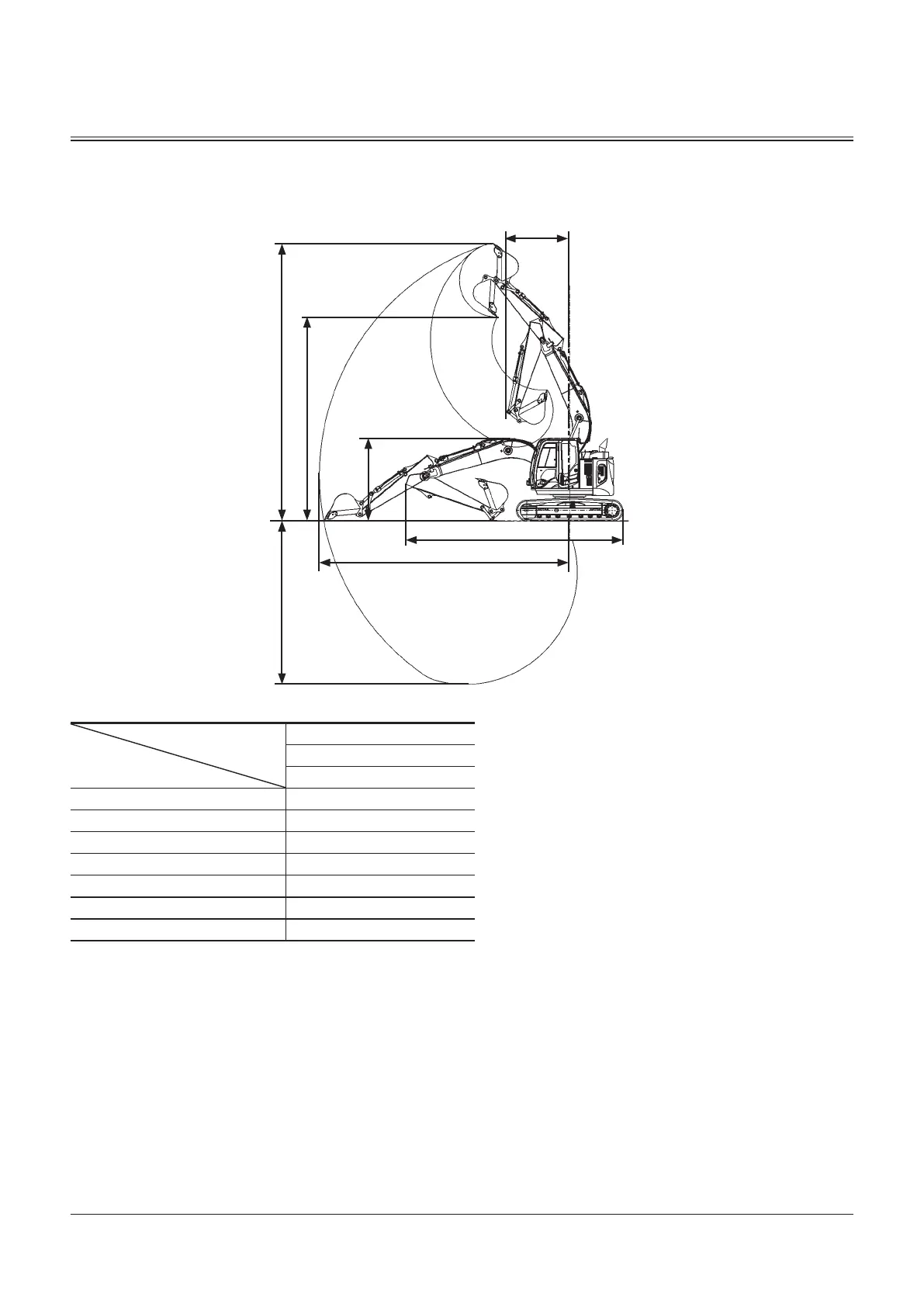

Working Ranges (Grouser shoe)
ZX135US-6
Category
Item
3.01 m Arm
Backhoe
mm
A: Maximum Digging Reach 8860
B: Maximum Digging Depth 5980
C: Maximum Cutting Height 9690
D: Maximum Dumping Height 7220
E: Overall Height *2780
F: Overall Length 7390
G: Minimum Swing Radius 2450
f
NOTE: The dimensions do not include height of the shoe lug (except Item E). *The dimensions asterisked are for transport
pin position.
G
C
D
E
F
A
B
MDAT-12-002
