HITEC X1 Pro - Power Supply Connections

15

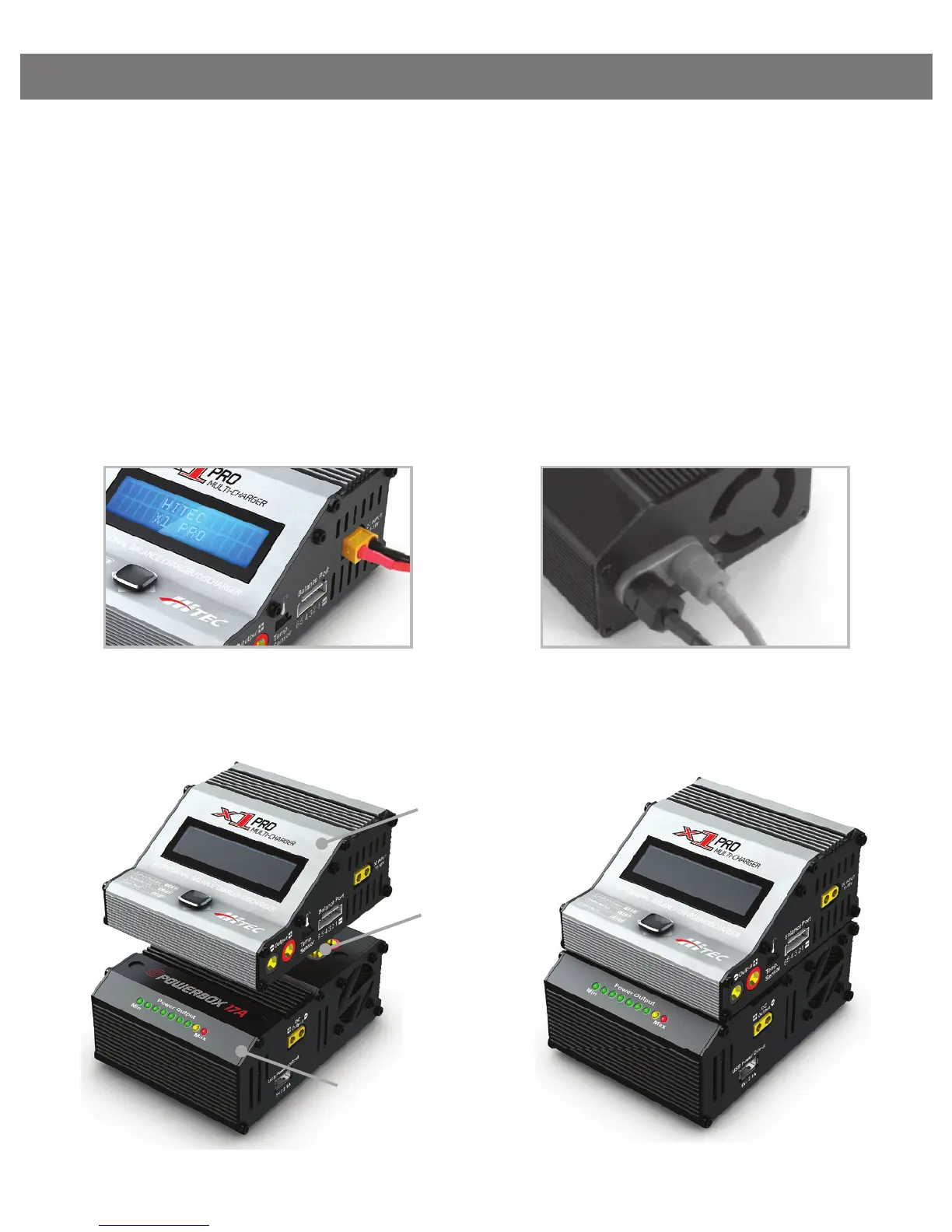

POWER SUPPLY CONNECTIONS
XT60 Connector plugged
directly into charger
Bullet connectors plugged
directly into power supply.
X1 Pro
ePowerBox 17A
Dual
Banana
Plugs
This charger is powered by an 11-18V DC power source. There are
two pairs of DC input sockets: one is used for the connection of a
DC power cord (XT60 type connector) and is located on the right
side of the charger, while the other is used for docking into the
ePowerBox 17A Power Supply and is located on the bottom of
the charger. This socket accepts banana plug type connectors. To
utilize the charger’s absolute maximum power capabilities, the DC
power source must be capable of delivering at least 17 amps while
maintaining 12V DC.
