Hobart Handler 190 - Control Board PC1 Testing Information

TM-260 273 Page 24 Handler 190
6-3. Control Board PC1 Testing Information
Be sure plugs are secure before
testing. See Section 6-4 for specific
values during testing.

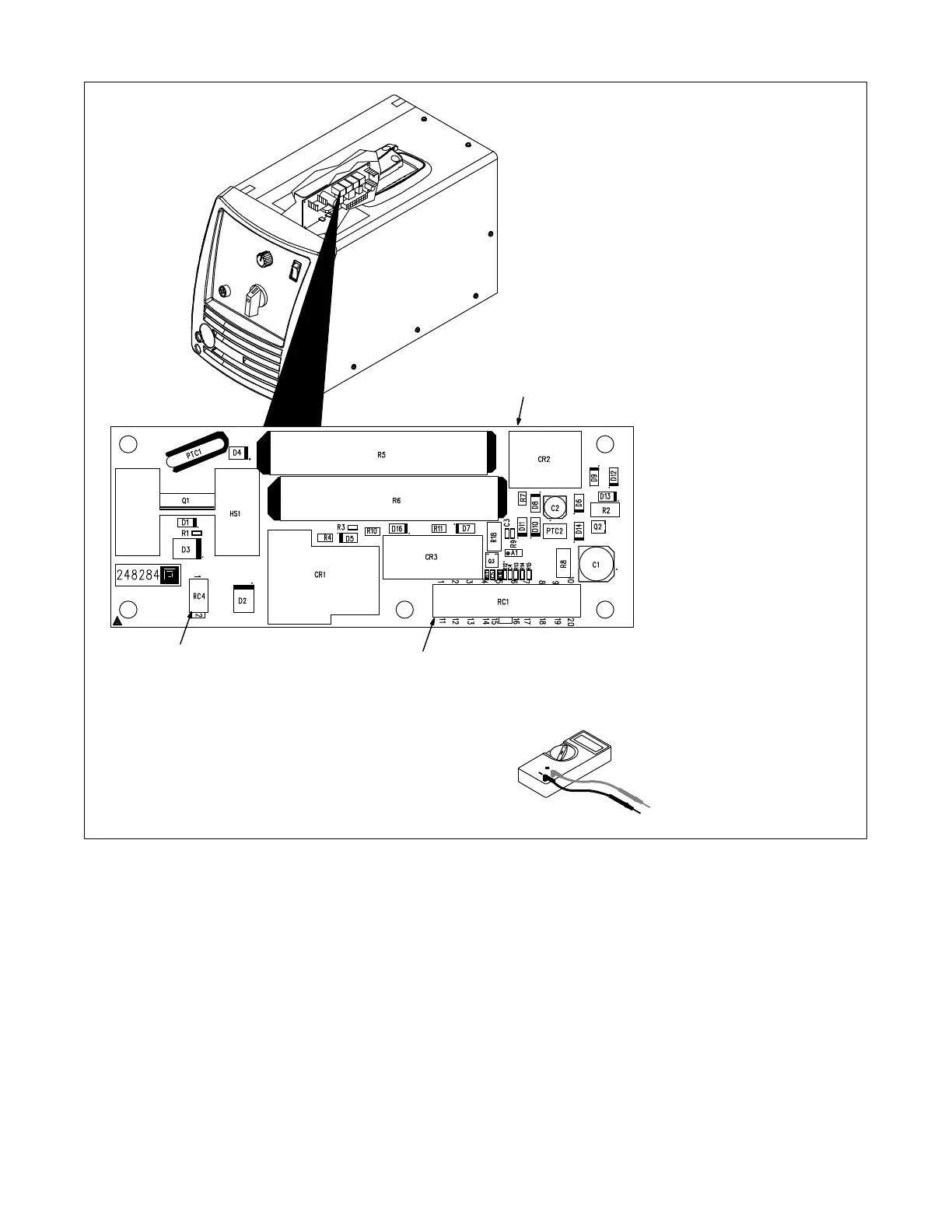

1 Control Board PC1
2 Receptacle RC1
3 Receptacle RC4
Test Equipment Needed:
Ref. 804 691-A / 248 284-A
2
1
3
