– 8 –

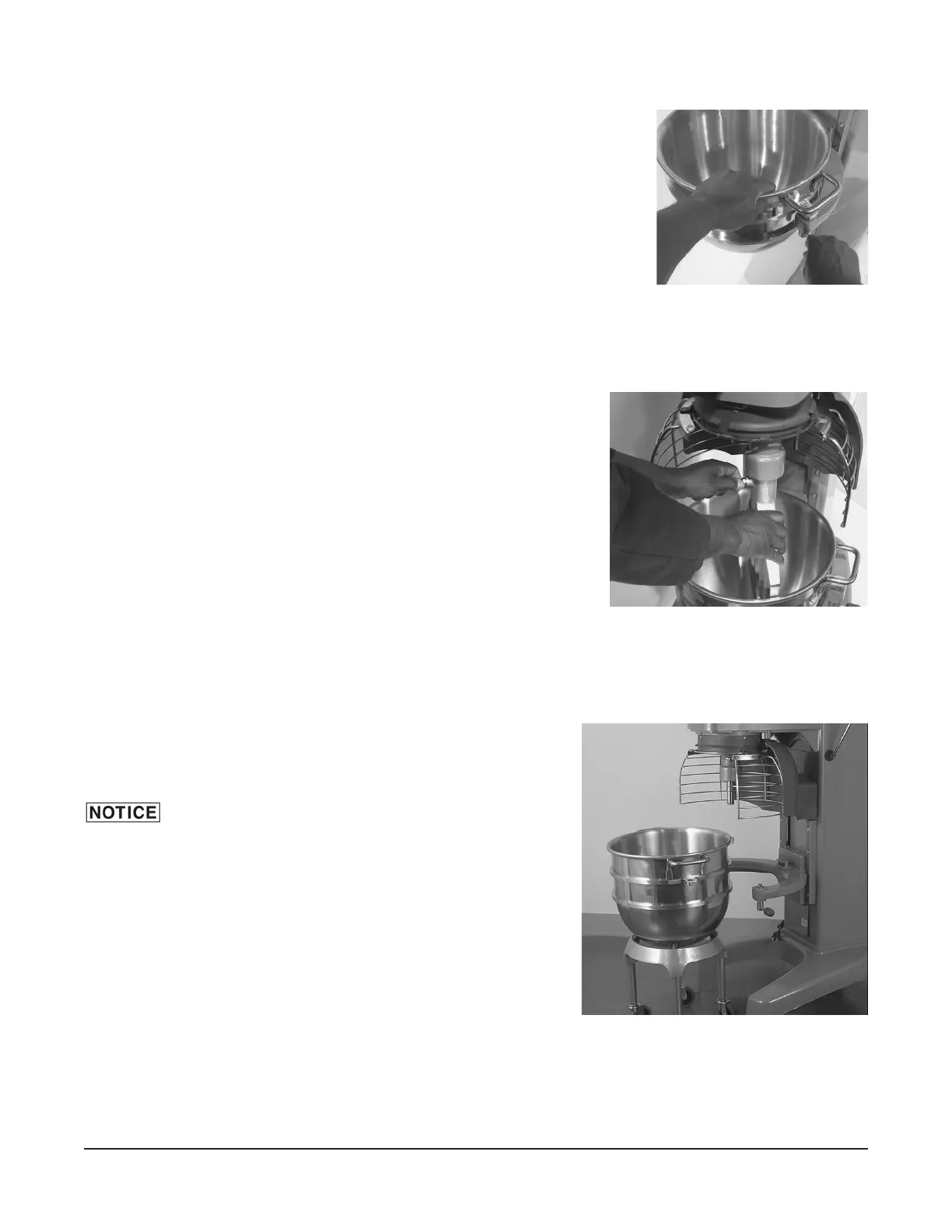

BOWL PLACEMENT
The bowl must be installed before the agitator is installed.
To install the bowl, fully lower the bowl support. Position bowl so
thealignmentpinontheleftsideofthebowlsupporttsinthe
hole in the bowl tab. Place the slotted tab on the bowl into the
lower part of the pin. Lower the bowl onto the bowl support and
swing the bowl into the locked position.
AGITATOR
To install an agitator, the bowl must be on the bowl support and
fully lowered.
To Install
1. Open the wire cage.
2. Place the agitator inside the bowl
and align the horizontal slot on the
agitator with the agitator shaft pin.
3. Slide the agitator up the agitator shaft
until it stops and latches. An audible click
should be heard when the agitator locks
into position.
To Remove
1. Open the bowl guard wire cage.
2. Lower the bowl.
3. Hold the agitator and pull the plunger of
the agitator out (Fig. 3). Slide agitator
downo󰀨theagitatorshaft.
BOWL LIFT
Before lowering the bowl onto a bowl truck, always
unlock bowl and swing bowl out slightly.
To raise the bowl, the bowl must be in the locked position. Push
down the lift handle until it is locked. To lower the bowl, lift the
lift handle slowly.
Fig. 3
