6.4 Bed conversion
The seating arrangements can be converted to beds.
Conversion (only alcove models)

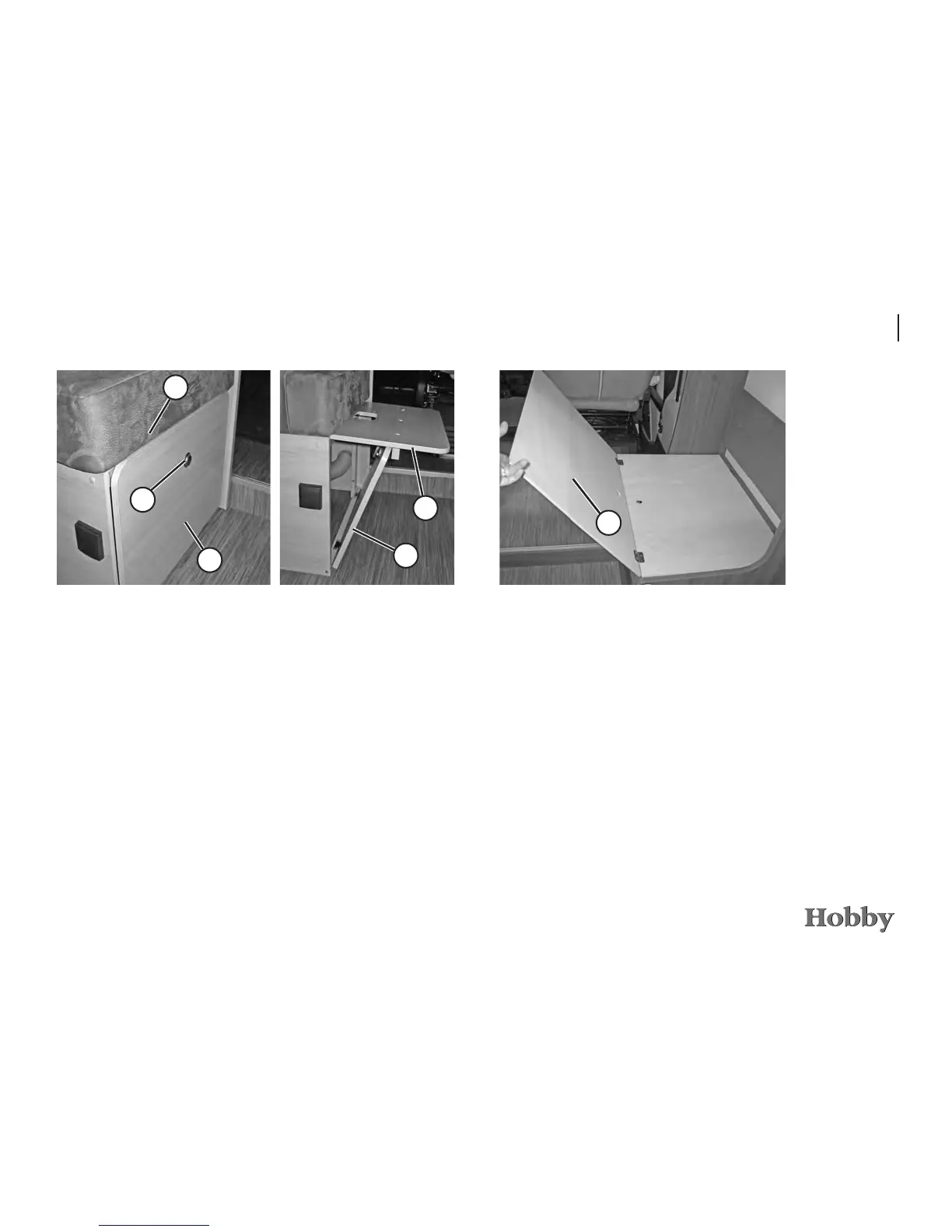

• Remove the seat and back cushions.
• Undo the lock
j
on the bed expansion.
• Place the outer plank
k
of the bed expansion on the oor.
• Raise the inner plank
l
approx. 15° above the horizontal
position.
• Wedge the outer plank
k
in a 45° angle (approx.) beneath
the inner plank
l
to support it.
• Place the cushions on the bed according to the following
diagrams.
Converting the Transverse Seat
In order to use the additional bed in the rear, the transverse
seat must be converted.
Conversion
• Remove the seat and back cushions.
• Lower the table (to do this, the lower table top must be
swung out).
• Fold the cushion cover
j
forward by 180° and place it on
the table.
1
2
3
3
2
1
