7. Electrical Installations112
Asanoption,yourvanalsohasacombinedexternalsocket
andantennaterminalintheoutertent.Thiscanbeused,for
example,tosetupaTVintheoutertent.Dependingonhow
youwireit,theintegratedantennaterminalcanbeusedas
eitheraninputoranoutputsocket.Forfurtherinformation,
pleasespeaktoyourHobbydealer
External socket and antenna terminal in the
outer tent
*

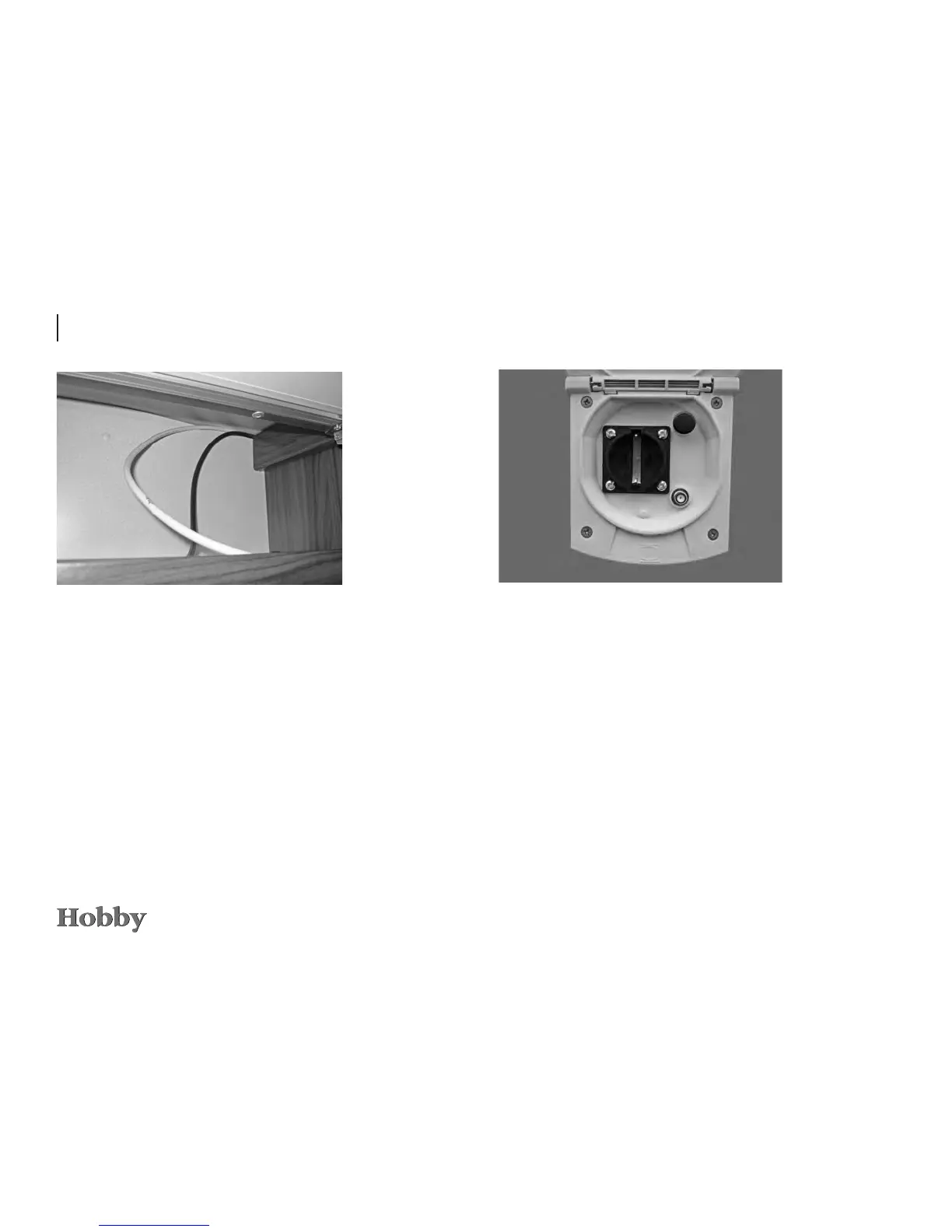

External socket and antenna terminal in the outer tent
The corresponding connection for the SAT antenna (E3) is
positionedbehindthefurnituresurroundonwhichtheTVcon-
nections are located.
Thepowercable(E3)hasalreadybeenconnectedbythemanu-
facturertothecontrolpanel.
Cable colours:
white= mass
black= steadyplusforancillarybattery
brown= D+signal
Antenna and digital SAT cable
