Assembly Required

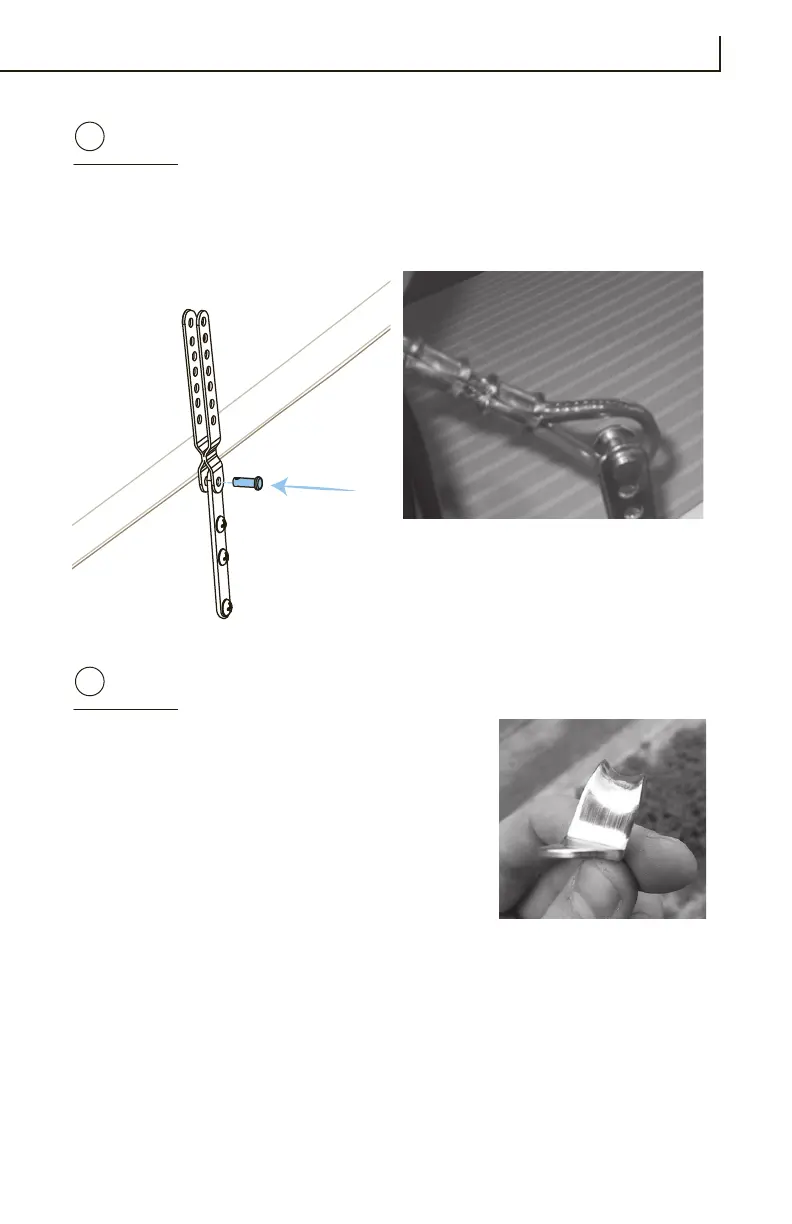

Connect one adjuster plate to the anchor plate to each hull using the
clevis pins. Once the adjuster plates are installed, place the shroud in
the adjuster and run a clevis pin through to secure.
Slide the vinyl boot over the assembly to cover
and prevent loss of the pins if a ring should
fall out.
To attach the bridles, unscrew the two screws
at the bows of each hull. Included in the
small hardware package are two bow tangs.
For the Club Wave, you’ll want to place the
bow tangs through the thimble on the bridle
wires and screw the tangs to the hull. You’ll
notice that the tangs have a “slope” to them.
You want the “slope” of the tang to point
toward the middle of the boat. If you are
assembling a Wave Classic, attach just the
bow tangs to the hull.
2
3
NOTE: Bow tang is
leaning toward the
center of the boat.
