Assembly Required

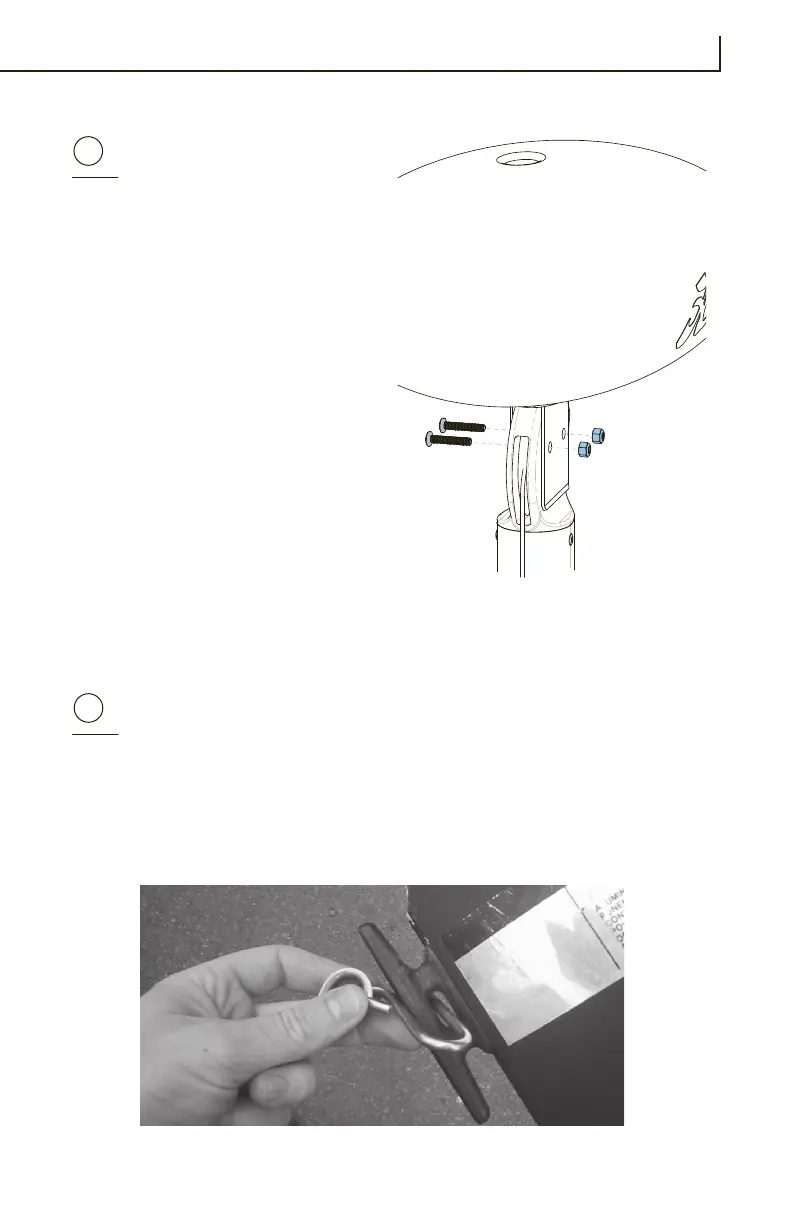

The mast is in two sections. The
bottom section is aluminum and
displays the warnings against
sailing and assembling near
overhead wires and power lines.
Before raising the mast check again
that you are in a safe area and
always remember this warning.
Insert the upper section into the
lower section.
Install the mast float to the upper
mast section as shown here. First
time assembly will require the
removal of the two halyard pulley
screws and nuts, and placement of
the float assembly over the mast
top casting assembly. Be sure the
blunt end of the float is facing
forward towards blunt side of the
mast.
With the mast float installed, make sure that the upper section fits
completely into the lower section. Locate the main halyard line and
place the hook through the cleat located at the base of the mast in the
luff track. Bring the line up to the top of the mast, through the halyard
pulley, and back down to the bottom. Tie it off at the cleat on the side of
the mast.
1
2
Mast Assembly
To Next Page
