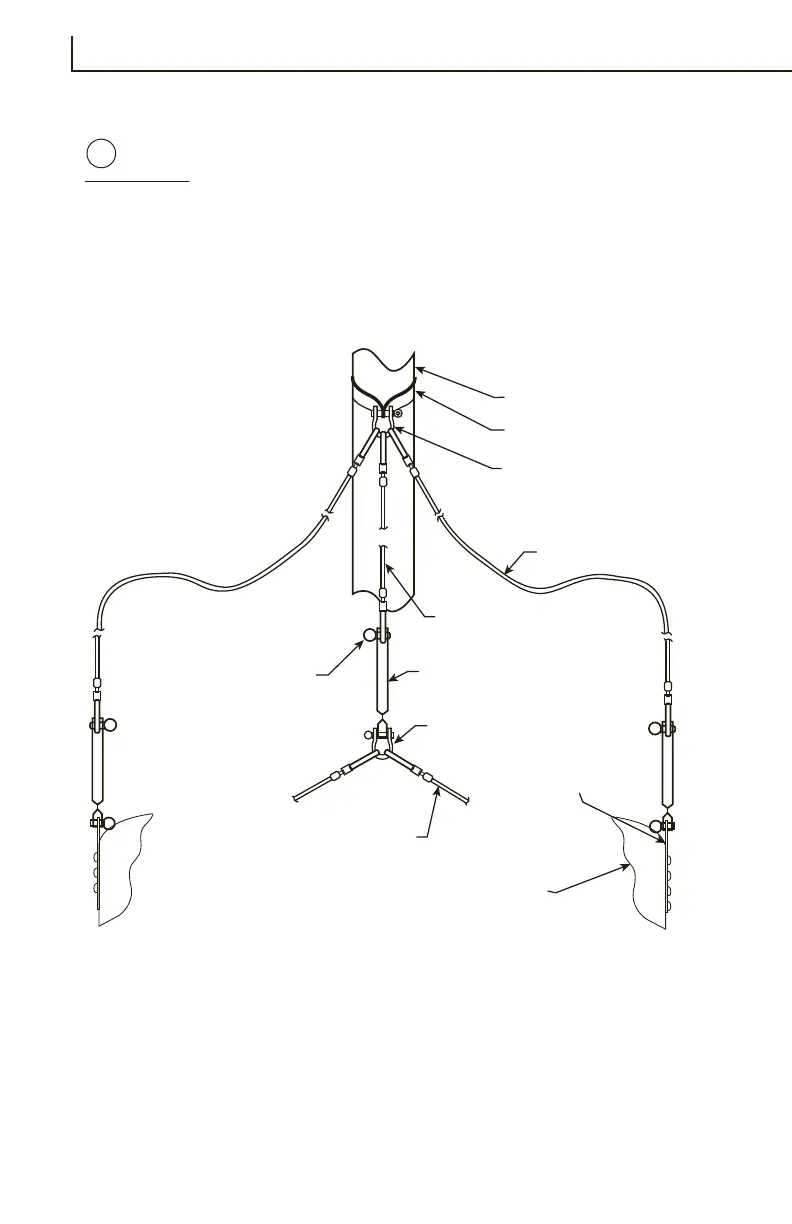

Mast Wires
The mast will be held in the upright position by two side wires
(shrouds) and one front wire (forestay). The forestay will attach to two
shorter wires (bridles) with a “7 hole” adjuster. Locate the three main
(longer) wires and install onto the mast tang as shown below using
the 1/4” threaded shackle provided in the rig kit. The shorter forestay
wire goes in the middle of the shackle with one shroud on either side.
1
mast
headstay
7 hole stay adjuster5/8” clevis pin and ring
mast tang
1/4” bell shackle
shroud
1/4” bell shackle
1/2 clevis pin and ring
bridle from bow
hull

Hobie Wave Specifications

General

Length	13 ft / 3.96 m
Beam	7 ft / 2.13 m
Hull Material	Polyethylene
Type	Catamaran
Capacity	4 adults
Mast Length	20 ft / 6.10 m
