Hobie Wave - Tiller Crossbar Installation

24
hobie.com
Tiller Crossbar

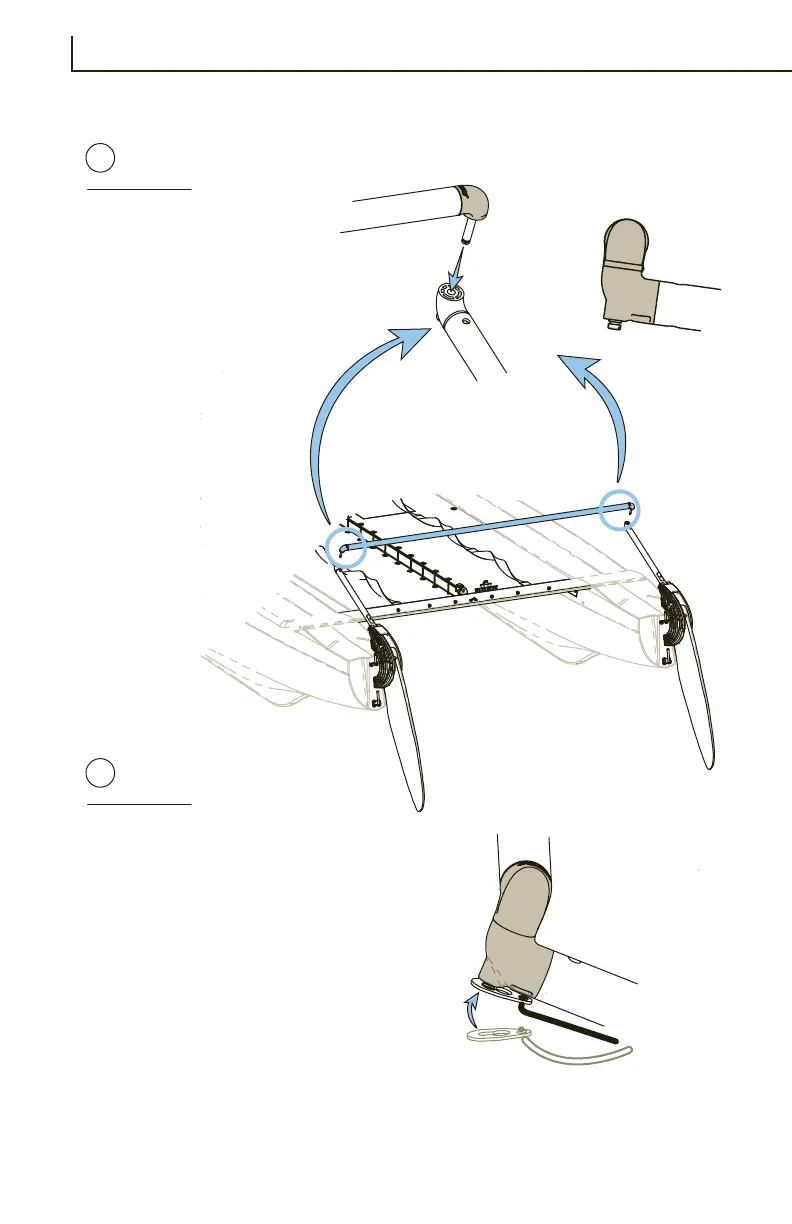

The rudder arms are
connected by a bar
called the tiller crossbar.
Position the crossbar
between the two rud-
ders. Slide the pin on the
tiller crossbar through
the hole at the end of the
rudder tiller arms.
Lock the key on the
bungee cord onto the
groove that is on the
stainless steel pin.
1
2
Assembly Required
