Assembly Required
WARNING
Watch for overhead power lines. Never rig, trailer
or sail the boat near overhead power lines. Mast
contact with a power line could be fatal.
Stepping the Mast

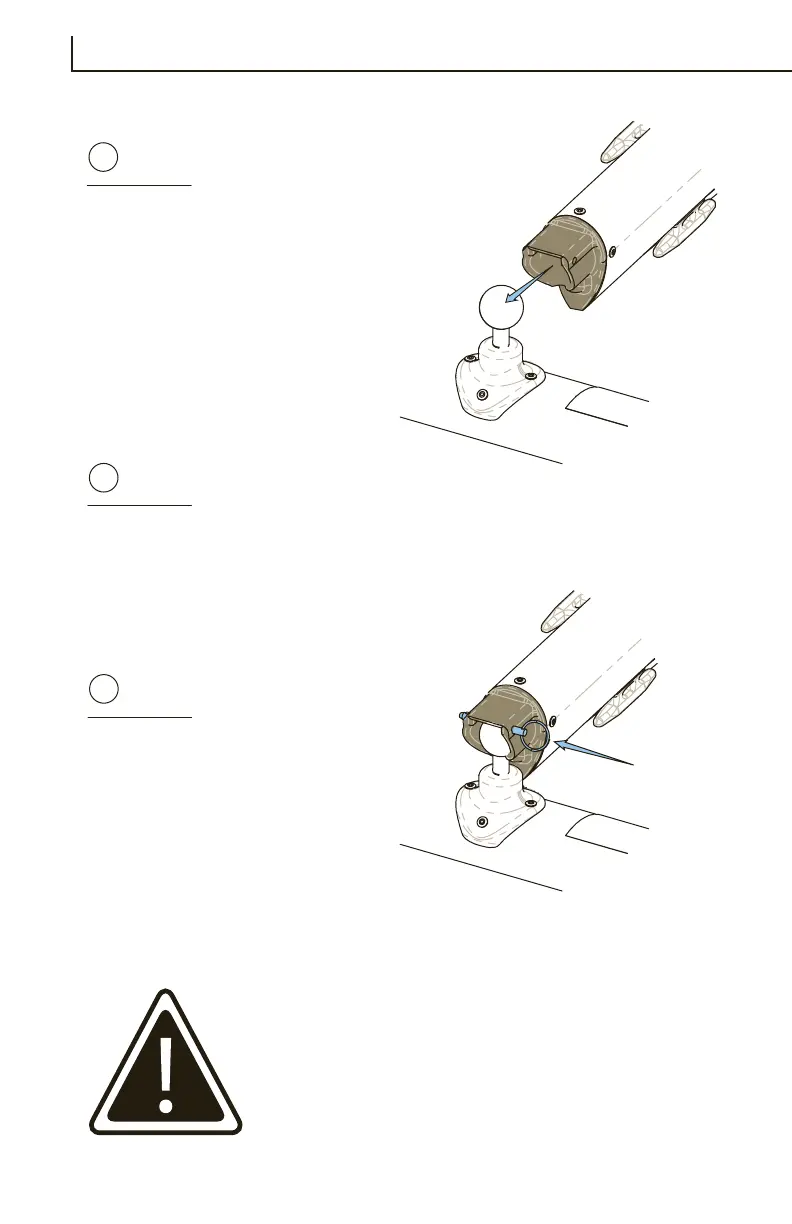

To step the mast into the upright
position, position the mast base
at the mast step ball located on
the front of the crossbar. The
mast top and float should be po-
sitioned to the rear of the boat in
the center of the rear crossbar.
1
Pass the long pin through the
mast base. There is a small
spring-loaded ball lock that will
keep the pin captive in the mast
base. For safety, the pin should
remain in the mast base while
sailing.
Connect the mast base to the
step ball by positioning the step
ball inside the mast base cup.
Pass the pin through the mast
base as shown.
3
2
To Next Page
