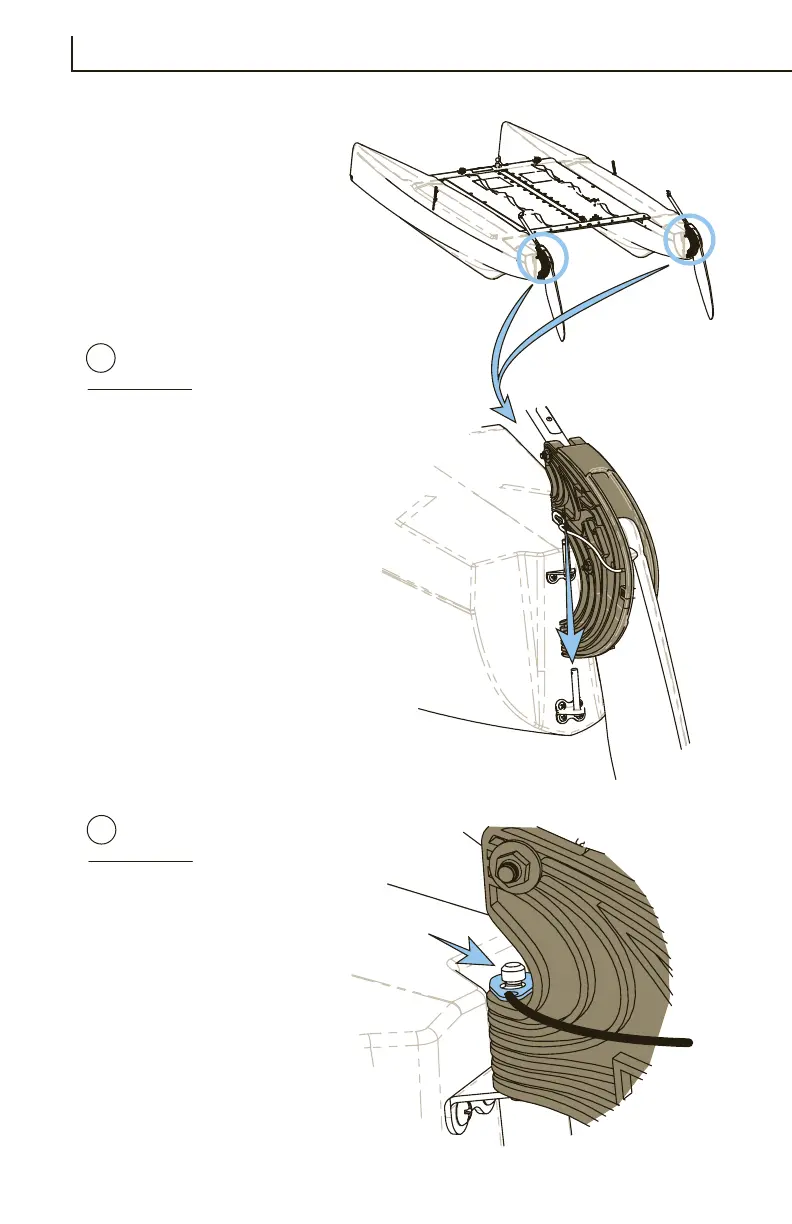

Line up the rudder pintles
(metal pegs on the hulls)
with the rudder housing.
Push the rudder housing
down onto the pintles.
NOTE: The rudder must be
between the up and down
position in order to install
and remove the rudders
from the pintles.
Place the locking key over
the groove in the upper
pintle. This key will prevent
the rudders from falling off
the boat in the event of a
capsize.
1
2
Rudder Installation
Assembly Required
