Use of the wheel balancing machine

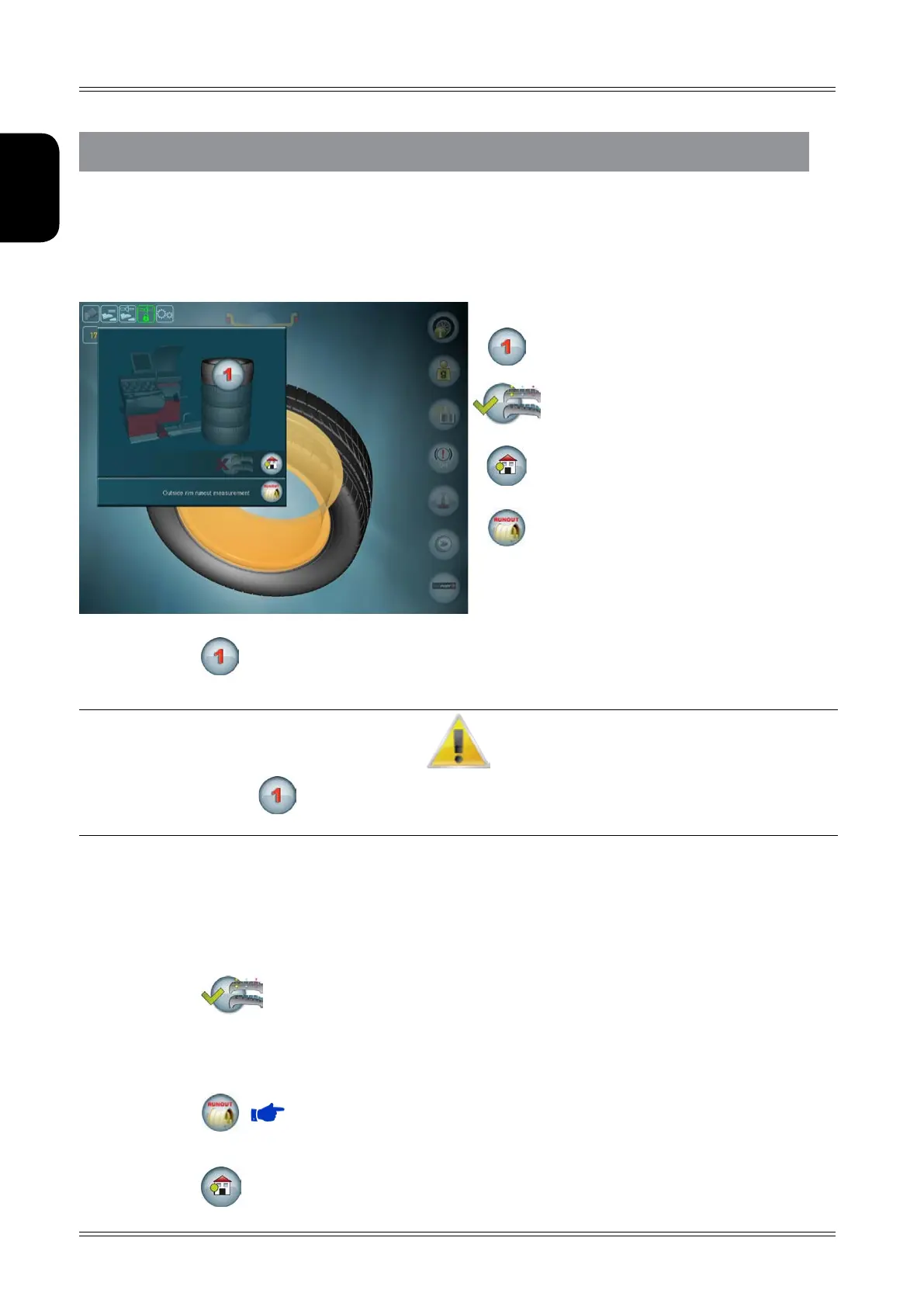

6.1 DIMENSION ACQUISITION
6. USE OF THE WHEEL BALANCING MACHINE
Acquires the wheel dimensions
Enables/disables taper and tread
measurement
Return to main screen
Outside rim eccentricity measurement
(use with the rim only)
NEW WHEEL
Press the button
to acquire the dimensions.
Close the guard to perform the balancing spin.
ATTeNZIoNe
befoRe pRessING The buTToN , posITIoN The Wheel IN such A WAy ThAT ANy WeIGhTs AlReAdy oN The RIm do NoT fAll WIThIN The
ReAdING AReA of The INTeRNAl lAseR, ThAT WAy excludING ANy dImeNsIoN meAsuRING INAccuRAcIes.
WHEEL THE SAME AS PREVIOUS
Close the guard to perform the balancing spin.
The machine in any case checks the wheel dimensions and if they are different from the previous wheel,
automatically measures them again. With this innovative system you can balance a set of 4-5 wheels meas-
uring the dimensions only once, thus saving a lot of time.
TAPER AND TREAD MEASUREMENT AT THREE POINTS
Press the button
to enable/disable complete taper and tread measurement.
This function uses a special measuring cycle that extends the cycle time by a few seconds.
The setting remains stored even when the wheel balancing machine is turned off.
OUTSIDE RIM ECCENTRICITY MEASUREMENT WITHOUT TYRE
Press the button
( OUTSIDE RIM RUNOUT)
CANCEL DIMENSION SETTING
Press the button
.
