Ø250mm
Zona d’azione laser scansione
13
ENGLISH
Use and Maintenance Manual

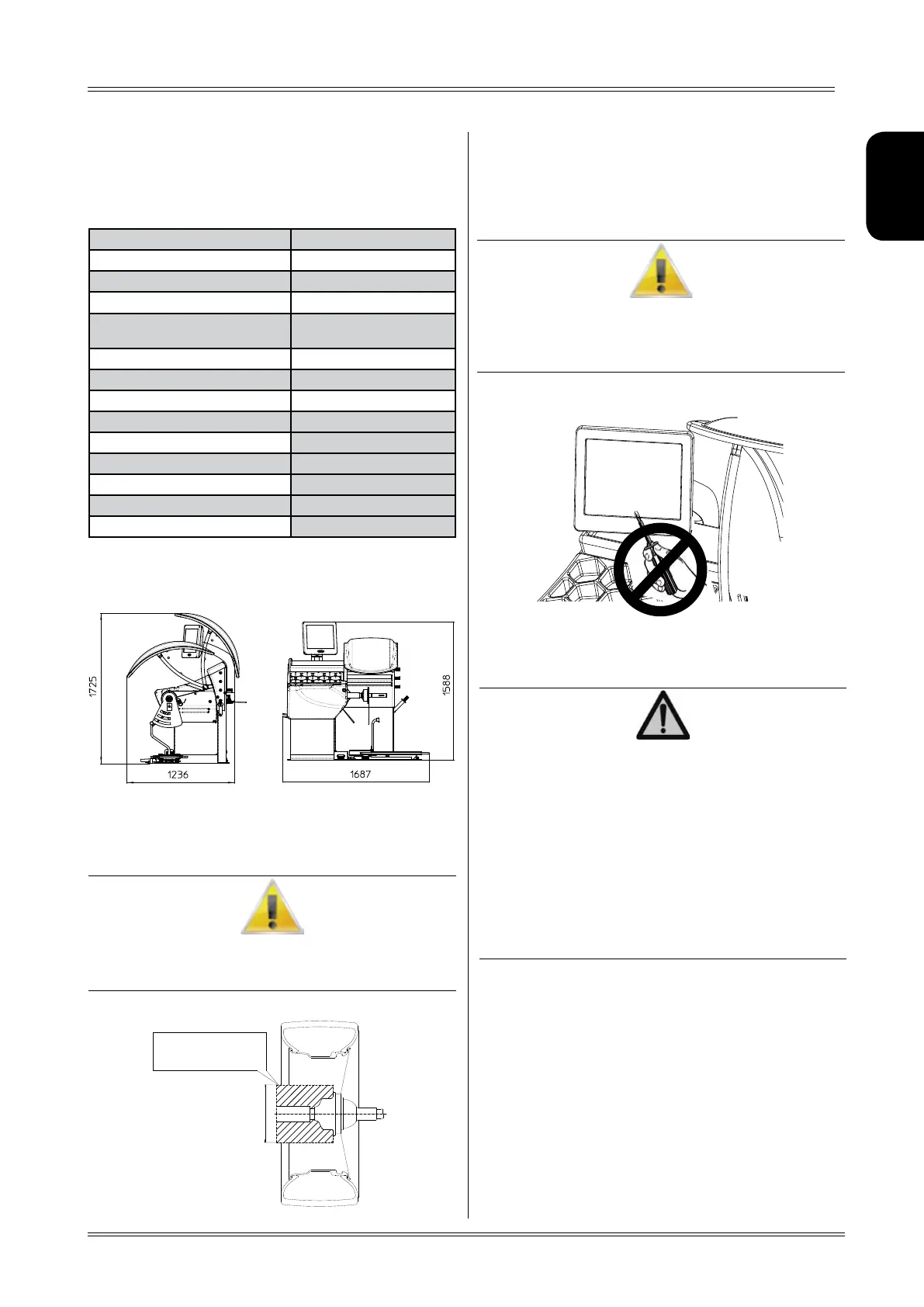

3.2 TECHNICAL SPECIFICATIONS
The following data refers to the wheel balancing
machine in its standard configuration.
Single phase power supply 115 /230 V 50/60 Hz
Protection class IP 54
Rated power 0,15 kW
Balancing speed 100 min
-1
Cycle time per wheel
4.7 seconds (5 3/4"x14")
15 Kg
Measurement uncertainty 0.5 g.
Average noise < 70 dB(A)
Rim width setting range 1.5”-20” or 40 - 510 mm
Settable diameter 10” ÷ 30” or 265 ÷ 765 mm
Min/max. compressed air pressure 7 ÷ 10 Kg/cm
2
~ 0.7 ÷ 1 Mpa;
~ 7 to 10 BAR;
~ 105 to 145 PSI.
Machine weight 220 kg.
3.3 DIMENSIONS
3.4 WARNINGS
CAUTION:
Keep The AreA INdICATed IN The fIgUre free Of TOOls,
AdApTers, eTC.
The function buttons are selected by pressing on the
TOUCH SCREEN.
CAUTION:
press The bUTTONs ONlY wITh YOUr fINgers.
Never Use The COUNTerweIghT grIppers Or OTher
pOINTed ObjeCTs !
Machine description
3.4.1 Periodic cleaning
CAUTION
The TOUCh pANel ANd The exTerNAl sCANNINg lAser effICIeNCY
CAN be gUArANTeed UsINg A sOfT ClOTh ANd NON-AbrAsIve
COmmerCIAl glAss/plAsTIC CleANINg sprAY Or eThANOl Or
NATUrAl deTergeNTs.
dO NOT Use:
OrgANIC sOlveNTs TYpe NITrO ThINNer
TUrpeNTINe
peTrOl
TrIChlOrOeThYleNe
ACeTONe
Scanning laser range
of action
