ENGLISH
Use and Maintenance Manual
Installation

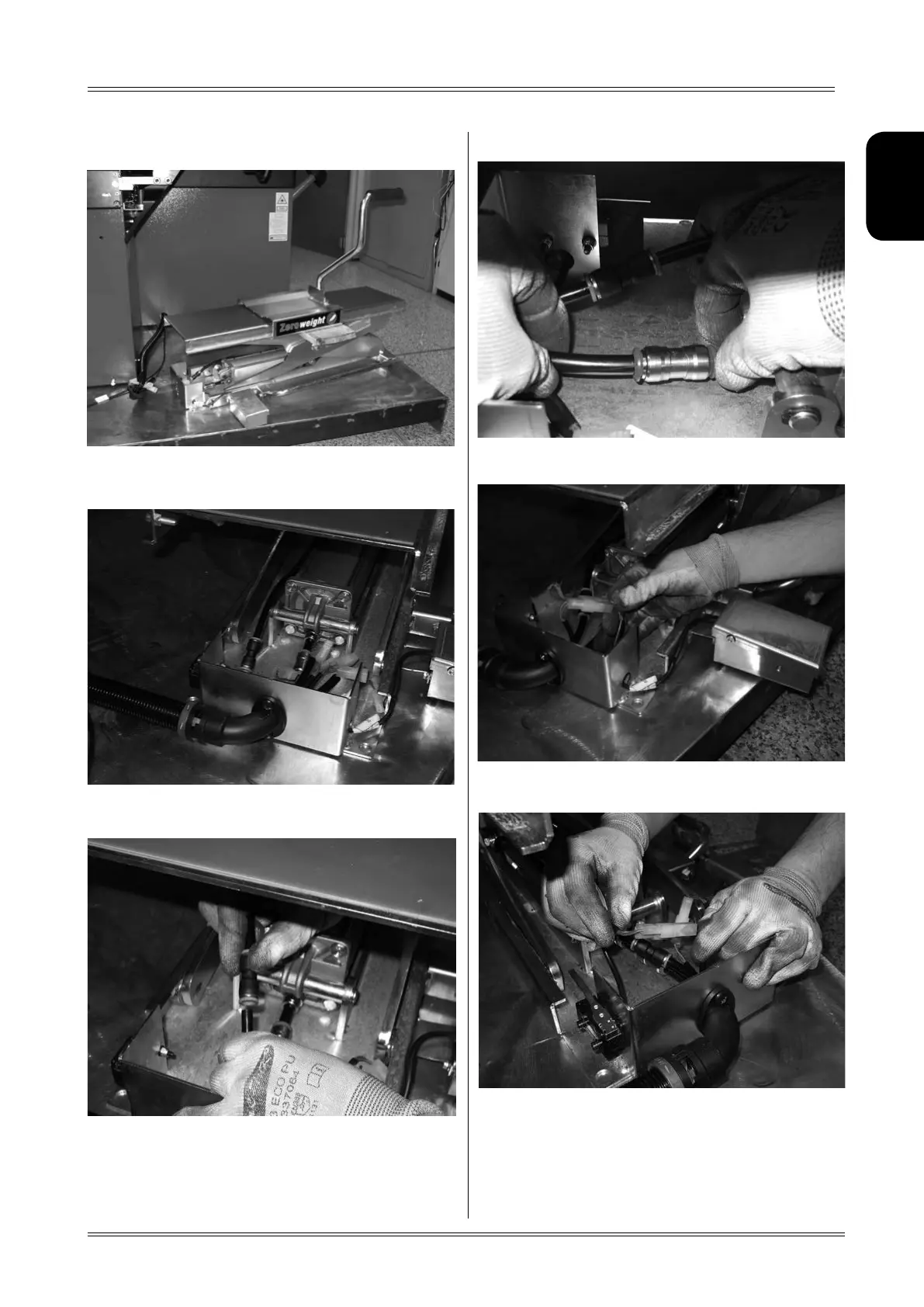

5. Hold up the lift using a wooden board (5)
6. Screw in the elbow union and fit all the wiring and
pneumatic connectors inside the lift (6)
7. Connect the 8 Ø tube (7)
8. Connect the 140 Ø tube (8)
9. Connect the lift pedal cable with a male/female
Faston (9)
10. Connect the footboard micro limit switch cable
with a male/female Faston (10)
