Hofmann ATC 900 - Page 46

CTC-CEN Service Manual 07-13 Rev.E
46

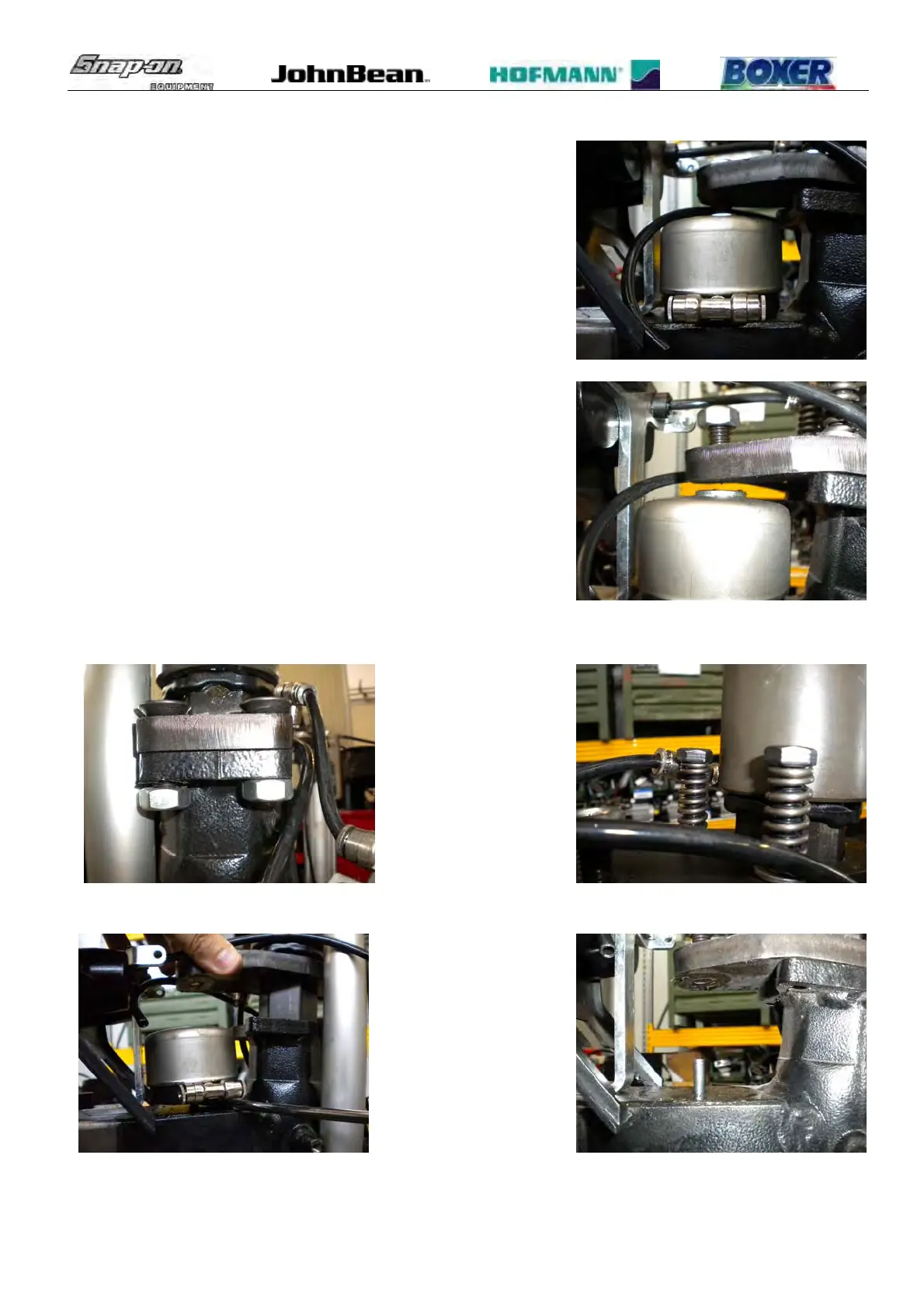

TO REPLACE THE CYLINDER:
 Disconnect the air pressure and the power supply.
 Disconnect the air pipes from the cylinder.
 Unlock the adjustment screw over the cylinder head and turn it
until it will out of the blocking plate range.
 Remove the washer from the cylinder.
 Unlock and remove the two front adjustment screws and the two screws with springs.
 Lift the blocking plate and extract the cylinder with robust screwdriver.
 Install the new cylinder.
 Install the washer.
