Hofmann ATC 900 - 8.2 Automatic tool # EAA0356 G25 A: check - replacement and adjustments

CTC-CEN Service Manual 07-13 Rev.E
75
 Mount the anti-rotational plates.
 Check if the machine works fine.

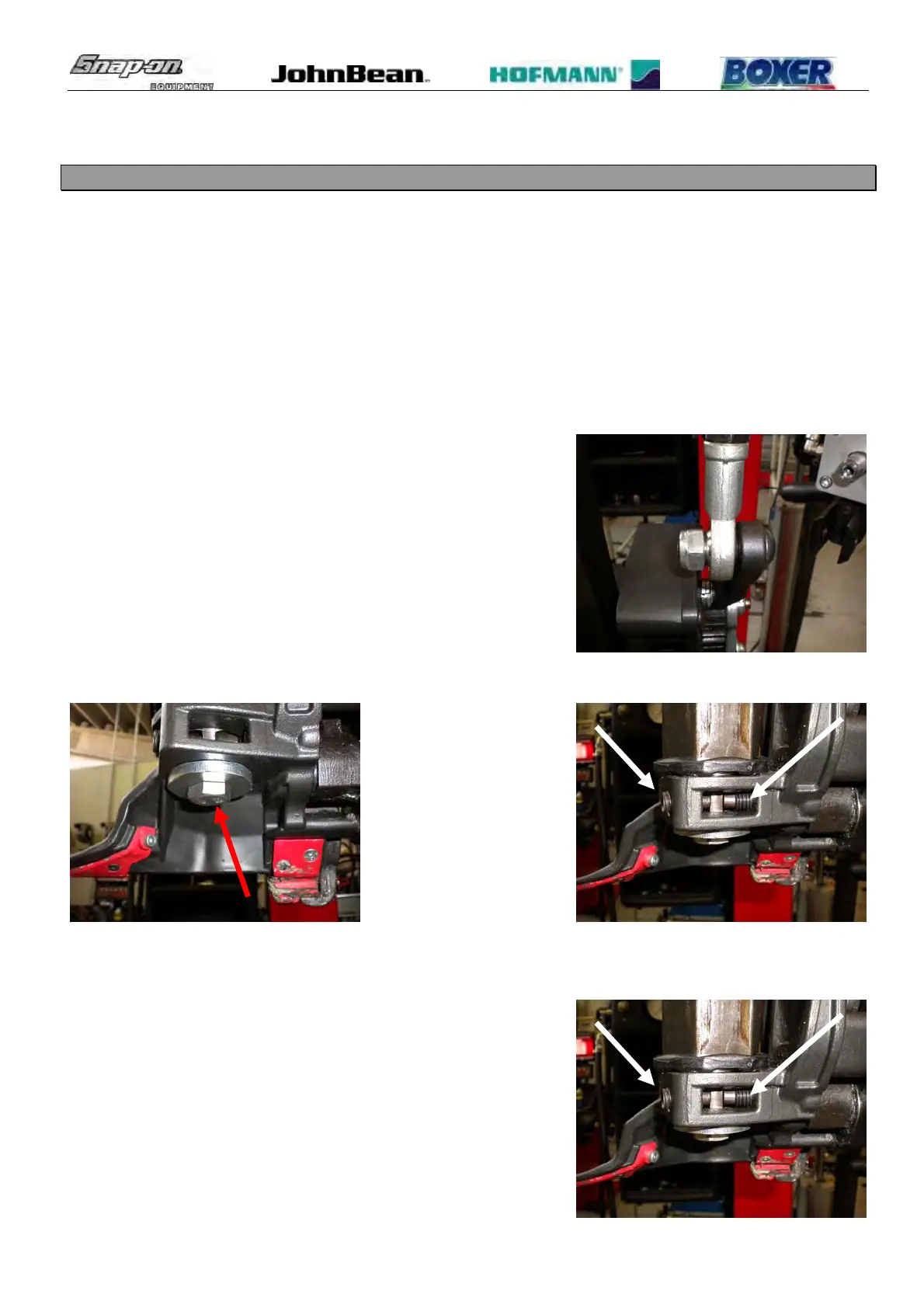

8.2 AUTOMATIC TOOL # EAA0356G25A: CHECK – REPLACEMENT AND ADJUSTMENTS
 : 1h
 : End key10,17 and 19mm, allen keys 3,5,6 and 8mm, rubber hammer, 13mm tube type key, rim of 17”.
 : Defective tool may cause the following malfunctions:
1. Tool is broken.
TO CHECK THE TOOL:
 Check if the tool is broken or mechanically damaged.
TO REPLACE THE TOOL:
 Disconnect the machine from air pressure and power supply
 Block the vertical rod with yellow button on the valve.
 Disconnect the tool from the cylinder.
 Loosen the screw underneath the tool and the two lateral set screws.
 Unlock the tool with the rubber hammer
 Remove completely the screws to complete the tool dismounting.
 Take the new tool and mount it to the vertical rod. Tighten all screws so that the tool is not rigidly locked in place
but can turn through a small sector relative to the support hub.
