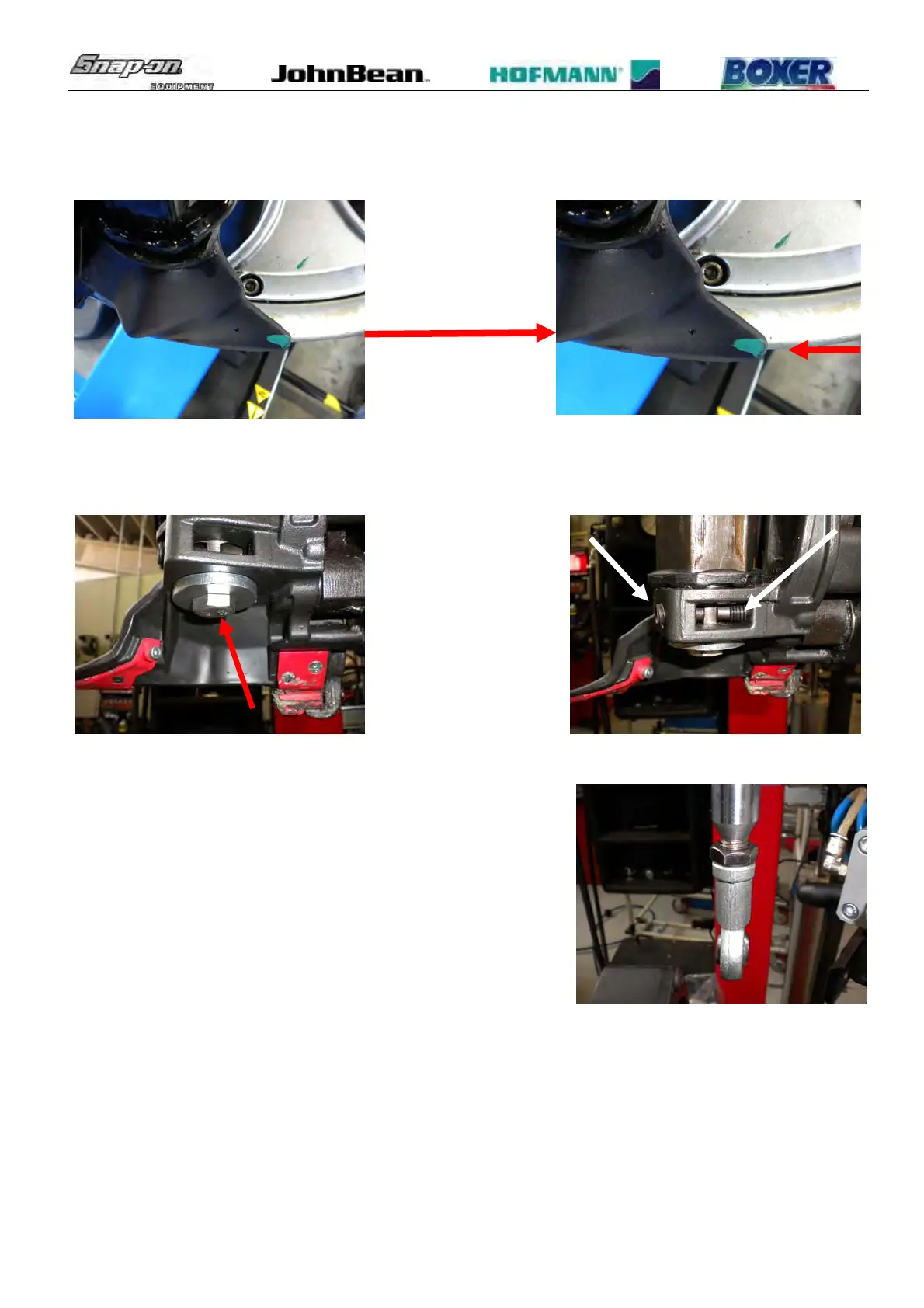

TO ADJUST THE TOOL ORIENTATION ON THE RIM:
 Connect the machine to air pressure and power supply.
 Block a 17” rim diameter rim in good condition to the centerpost.
 Place the tool on the rim, as normal operation, and then lock it.
 Tighten one of the two adjuster screws until the tail of the tool is aligned to the rim edge.
 Tighten both screws, keeping the tool in this position.
 Move the tool away from the edge of the rim, then tighten the screw under the tool fully home.
TO ADJUST THE TOOL FINGER STROKE ON THE CONTROL
CYLINDER:
 Connect the ball joint to the cylinder rod.
 Move the control cylinder all way up.
