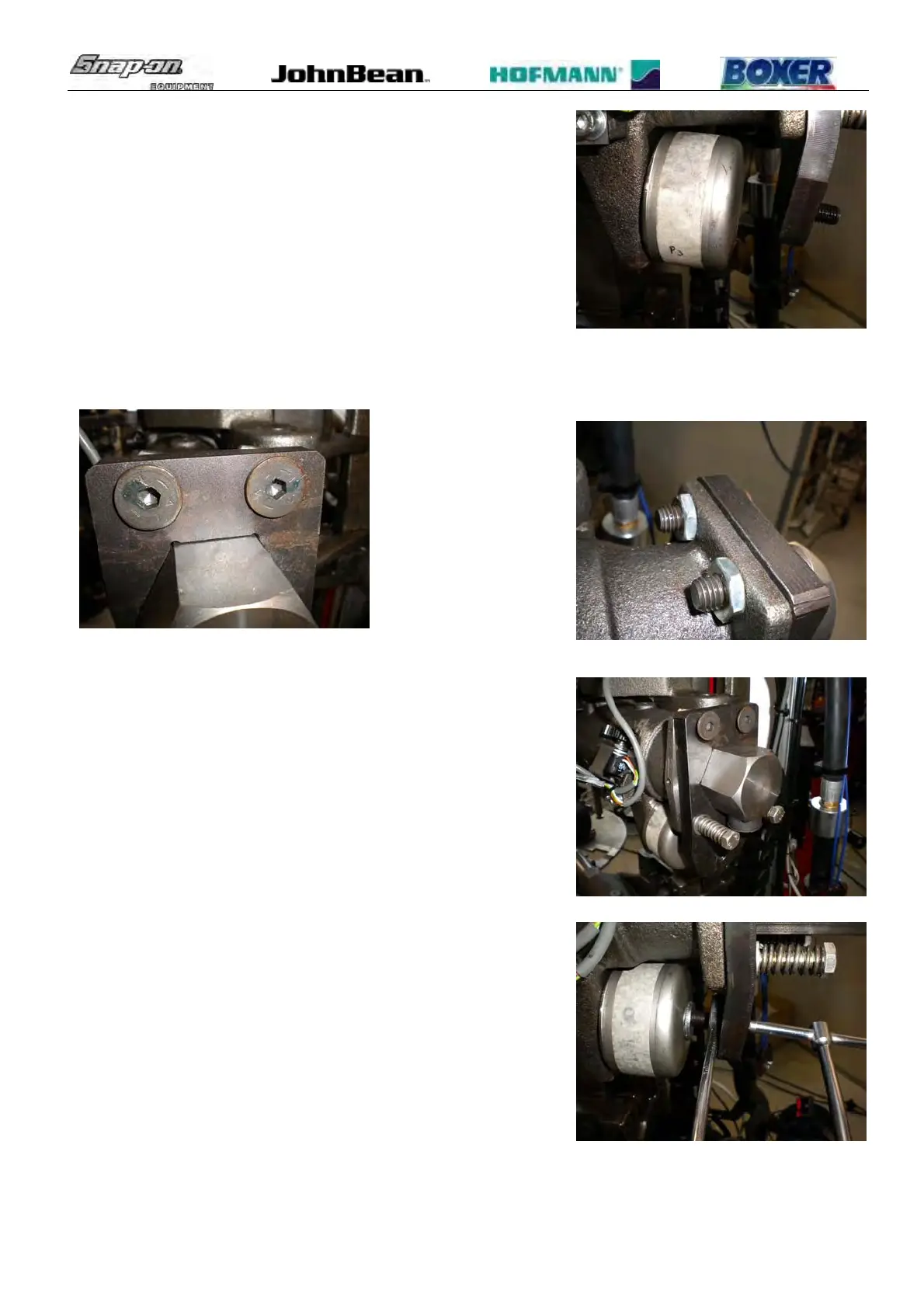

 Move the blocking plate and push off the cylinder.
 Mount the new cylinder.
 Install the two front adjustment screws and turn them until end of stroke.
 Then turn them back of one turn.
 Block the counter nuts.
 Install the two screws with springs. Tighten them for about 10mm.
 Install the washer and tighten the cylinder adjustment screw: when
the screw will touch the washer turn the screw of two more turns.
 Connect the air pressure and the power supply.
 For the mechanical adjustment refer to par.8,7.
 Check if the machine works fine.
