Hofmann ATC 900 - Page 72

CTC-CEN Service Manual 07-13 Rev.E
72

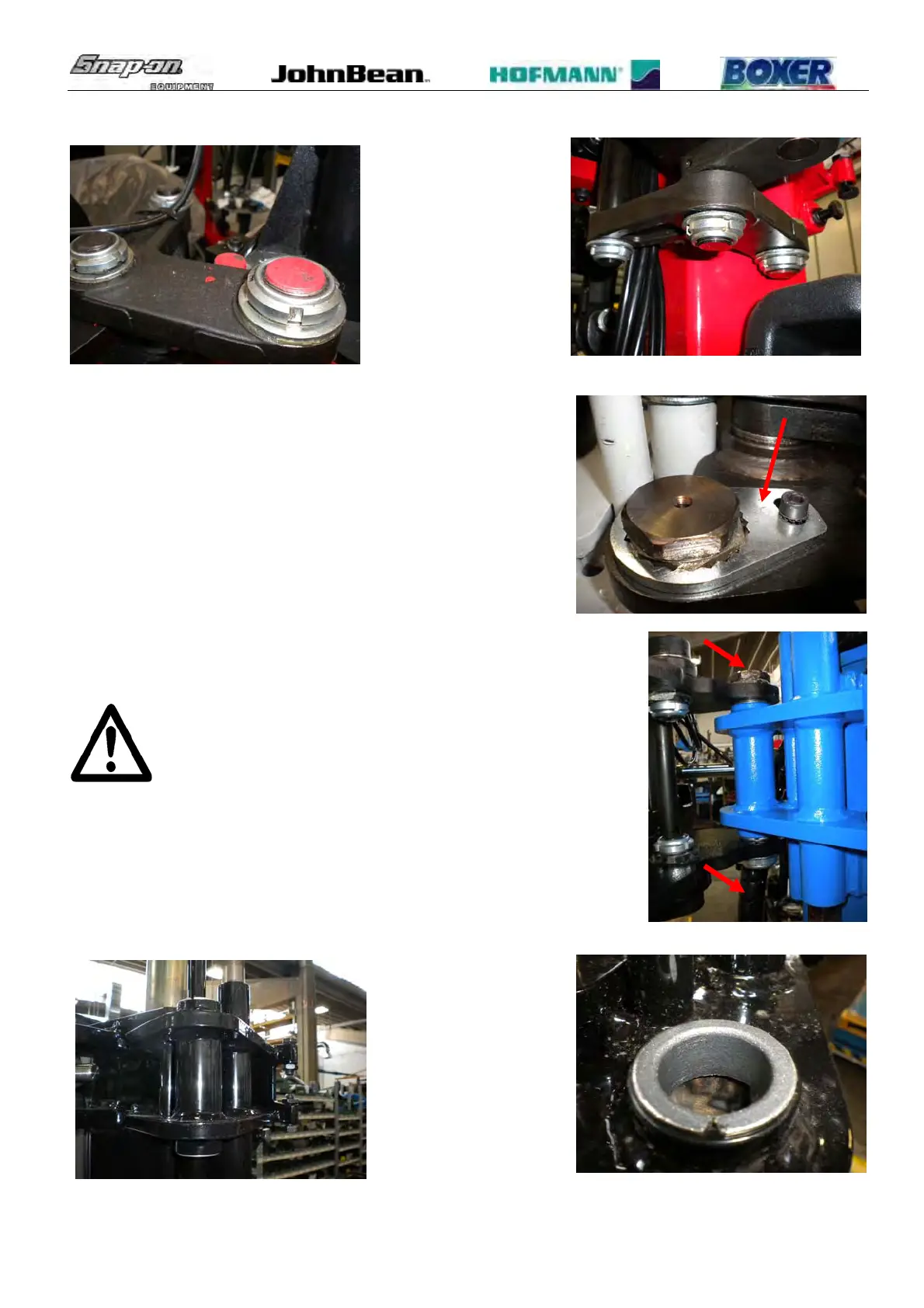

 Remove the lower and the upper linkages.
 Remove the eccentric anti-rotational plate.
 Remove the ring nut and take out the screw and the eccentric.
BE CAREFUL! VERY HEAVY AND UMBALANCED
ASSEMBLY!TWO PEOPLE ARE REQUIRED FOR
THE NEXT OPERATION DUE TO WEIGHT OF THE
ASSEMBLY.
IF TWO PEOPLE WILL NOT BE AVAILABLE IT IS
MANDATORY TO USE A LIFT
 Remove the operating arm basement .
 Replace the worn bushings.
 Mount the operating arm basement with the eccentric.
