 If the clearance is higher, release the arm, unlock the screws and tighten them accordingly. Then lock the
screws and check the clearance again.
 If the clearance is lower, release the arm, unlock the screws and loosen them accordingly. Then lock the screws
and check the clearance again.
 Perform the bead breaker arm calibration.
 Check if the machine works fine.
 Mount the protection again.

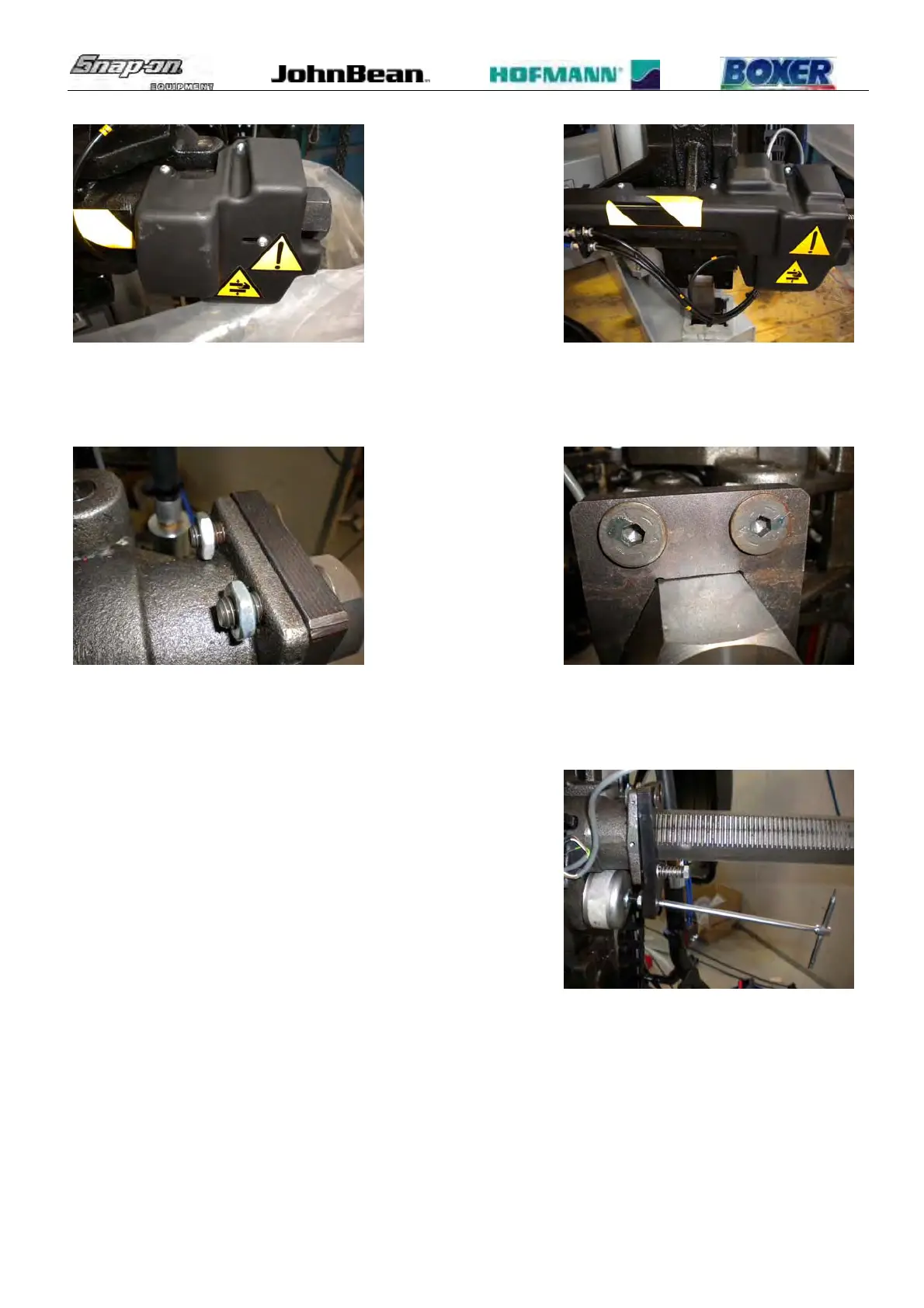

TO CHECK AND ADJUST THE UPPER BEAD BREAKER AMR BLOCKING CYLINDER:
 Please refer to par.8.2 for the adjustment.
 Check if the arm moves smoothly pushing and pulling it by hand.
 Perform the bead breaker arm calibration.
 Check if the machine works fine
 Mount the protection.
TO CHECK AND ADJUST THE LOWER BEAD BREAKER AMR BLOCKING CYLINDER:
 Please refer to par.5.5 to disconnect and connect the actuator.
 Please refer to par.8.2 for the adjustment.
 Check if the arm moves smoothly pushing and pulling it by hand.
 Perform the bead breaker arm calibration.
 Check if the machine works fine
 Mount the protection.
TO CHECK AND ADJUST BEAD BREAKER AMR BLOCKING PLATE SPRINGS:
